392-092 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Read Out	Gender	Card Type	Contact Material	Pitch	Pitch	Mounting Type	Number of Positions	Number of Positions/Bay/Row	Termination	Color	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Thickness [Max]	Card Thickness [Min]	Features
EDAC Inc. 392-092-541-212	Polyester Thermoplastic	2	-40 C	105 ░C	2	Dual	Female	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Through Hole	92	46	Wire Wrap	Black	Gold	Cantilever	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-092-542-202	Polyester Thermoplastic	2	-40 C	105 ░C	2	Dual	Female	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Through Hole	92	46	Wire Wrap	Black	Gold	Cantilever	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm

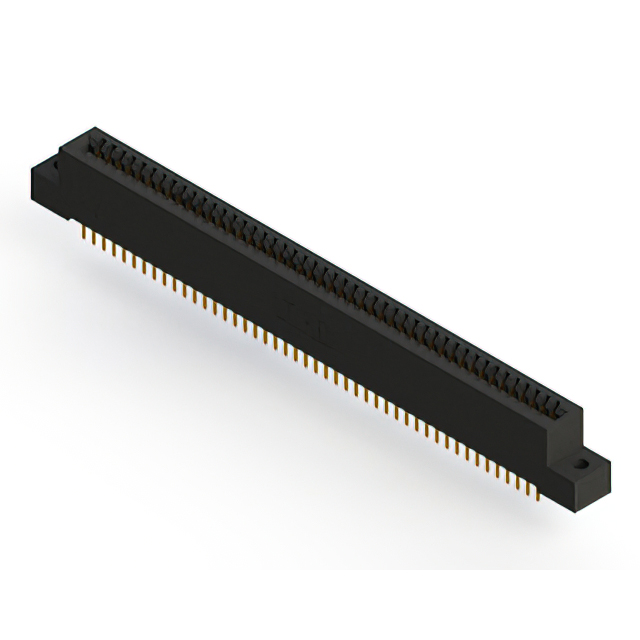

EDAC Inc. 392-092-521-202	Polyester Thermoplastic	2	-40 C	105 ░C	2	Dual	Female	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Through Hole	92	46	Solder	Black	Gold	Cantilever	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-092-558-204	Polyester Thermoplastic	2	-40 C	105 ░C	2	Dual	Female	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Right Angle Through Hole	92	46	Solder Wire Wrap	Black	Gold	Cantilever	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-092-542-207	Polyester Thermoplastic	2	-40 C	105 ░C	2	Dual	Female	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Through Hole	92	46	Wire Wrap	Black	Gold	Cantilever	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm

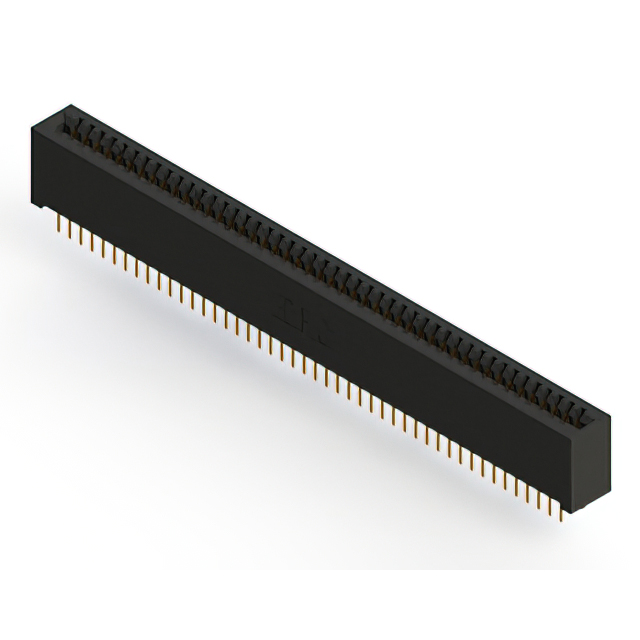

EDAC Inc. 392-092-524-201	Polyester Thermoplastic	2	-40 C	105 ░C	2	Dual	Female	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Through Hole	92	46	Solder	Black	Gold	Cantilever	0.25 Ám	10 Áin				0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-092-524-208	Polyester Thermoplastic	2	-40 C	105 ░C	2	Dual	Female	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Through Hole	92	46	Solder	Black	Gold	Cantilever	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-092-541-203	Polyester Thermoplastic	2	-40 C	105 ░C	2	Dual	Female	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Through Hole	92	46	Wire Wrap	Black	Gold	Cantilever	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-092-559-212	Polyester Thermoplastic	2	-40 C	105 ░C	2	Dual	Female	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Right Angle Through Hole	92	46	Solder Wire Wrap	Black	Gold	Cantilever	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-092-556-212	Polyester Thermoplastic	2	-40 C	105 ░C	2	Dual	Female	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Board Edge Straddle Mount	92	46	Solder	Black	Gold	Cantilever	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
