320553 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

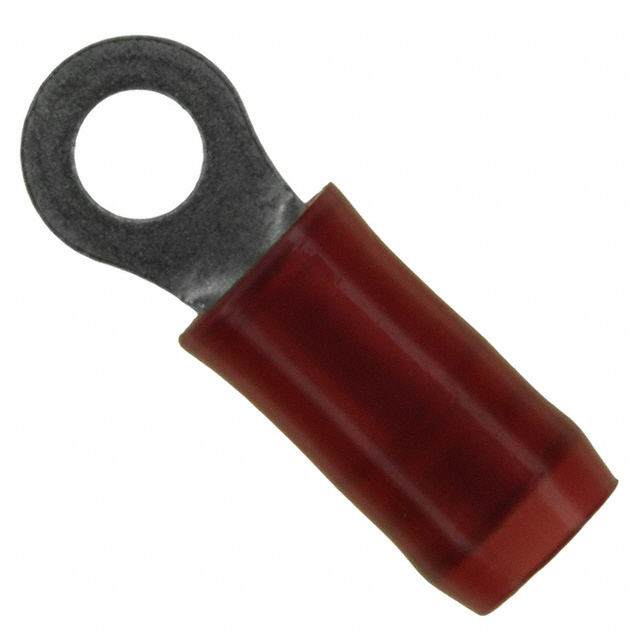

CONN RING CIRC 16-22AWG #4 CRIMP
| Part | Contact Material | Terminal Type | Color | Length - Overall [x] | Length - Overall | Wire Gauge [Max] | Wire Gauge [Min] | Width - Outer Edges [x] | Width - Outer Edges [x] | Termination | Insulation | Material - Insulation | Stud/Tab Size | Contact Finish | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Mounting Type | Thickness | Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Copper | Circular | Red | 0.672 " | 17.07 mm | 22 AWG | 16 AWG | 5.54 mm | 0.218 in | Crimp | Insulated | Nylon Polyamide (PA) | 4 Stud | Tin | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | Free Hanging (In-Line) | 0.031 in | 0.79 mm | Serrated Termination |
