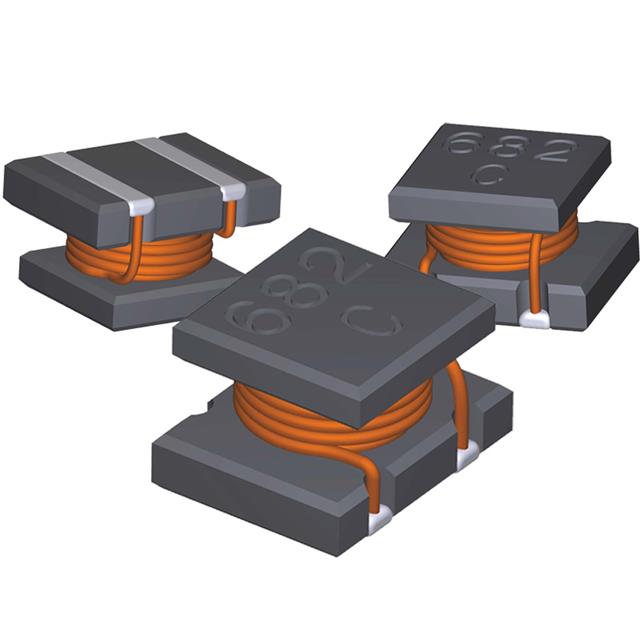

82 Series

Catalog

INDUCTOR, 150UH, 0.13A, 10%, UNSHIELDED

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Tolerance	Current Rating (Amps)	DC Resistance (DCR) [Max]	Q @ Freq	Type	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Inductance Frequency - Test	Frequency - Self Resonant	Inductance	Supplier Device Package	Q @ Freq [custom]	Q @ Freq [custom]
Murata Electronics 82154C	85 °C	-40 C	Surface Mount	10 %	130 mA	5.9 Ohm	40 800 kHz	Wirewound	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	2.3 mm	0.091 in	Unshielded	10 kHz	11 MHz	150 µH	1210
Murata Electronics 82334C	85 °C	-40 C	Surface Mount	10 %	80 mA	13.5 Ohm	40 800 kHz	Wirewound	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	2.3 mm	0.091 in	Unshielded	10 kHz	9 MHz	330 µH	1210
Murata Electronics 82152C	85 °C	-40 C	Surface Mount	20 %	1.4 A	68 mOhm		Wirewound	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	2.3 mm	0.091 in	Unshielded	10 kHz	103 MHz	1.5 µH	1210	1 MHz	18
Murata Electronics 82333C	85 °C	-40 C	Surface Mount	10 %	270 mA	1.3 Ohm	1 MHz 40	Wirewound	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	2.3 mm	0.091 in	Unshielded	10 kHz	20 MHz	33 µH	1210
Murata Electronics 82682C	85 °C	-40 C	Surface Mount	20 %	0.64 A	270 mOhm	1 MHz 20	Wirewound	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	2.3 mm	0.091 in	Unshielded	10 kHz	46 MHz	6.8 µH	1210
Murata Electronics 82103C	85 °C	-40 C	Surface Mount	10 %	0.5 A	400 mOhm	1 MHz 35	Wirewound	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	2.3 mm	0.091 in	Unshielded	10 kHz	38 MHz	10 µH	1210
Murata Electronics 82223C	85 °C	-40 C	Surface Mount	10 %	320 mA	920 mOhm	1 MHz 35	Wirewound	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	2.3 mm	0.091 in	Unshielded	10 kHz	25 MHz	22 µH	1210
Murata Electronics 82332C	85 °C	-40 C	Surface Mount	20 %	950 mA	138 mOhm		Wirewound	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	2.3 mm	0.091 in	Unshielded	10 kHz	67 MHz	3.3 µH	1210	1 MHz	18
Murata Electronics 82683C	85 °C	-40 C	Surface Mount	10 %	0.2 A	2.55 Ohm	1 MHz 40	Wirewound	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	2.3 mm	0.091 in	Unshielded	10 kHz	15 MHz	68 µH	1210
Murata Electronics 82472C	85 °C	-40 C	Surface Mount	20 %	800 mA	190 mOhm	1 MHz 20	Wirewound	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	2.3 mm	0.091 in	Unshielded	10 kHz	58 MHz	4.7 ÁH	1210
