9AD1201 Series

Catalog

AC FAN AXIAL BALL BEARING 100V TO 240V 90V TO 264V 106CFM 42DB 120 X 120 X 38MM

Part	Material - Blade	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Features	Termination	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated [Max]	Voltage - Rated [Min]	Fan Type	Width [y]	Noise	Power (Watts)	Approval Agency	Static Pressure	Static Pressure	Weight	Weight	Air Flow	Air Flow	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Termination
Sanyo Denki America Inc. 9AD1201H1H	Plastic	Plastic	90 VAC	240 VAC	Ball	Locked Rotor Sensor	2 Position Rectangular Connector	120 mm	120 mm	240 VAC	100 VAC	Tubeaxial	38 mm	42 dB	4.4 W	CE CSA PSE TUV UL	84.7 Pa	0.34 in H2O	0.639 lb	289.85 g	106 CFM	2.97 m³/min	3250 RPM	-4 °F	167 °F
Sanyo Denki America Inc. 9AD1201H11	Plastic	Plastic	90 VAC	264 VAC	Ball		2 Position Rectangular Connector	120 mm	120 mm	240 VAC	100 VAC	Tubeaxial	38 mm	42 dB	4.4 W				0.644 lb	292.11 g			3250 RPM	-4 °F	167 °F

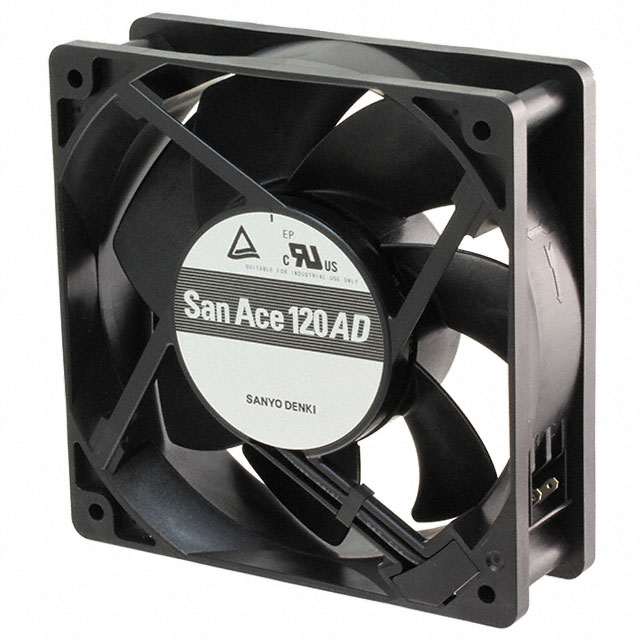

Sanyo Denki America Inc. 9AD1201H12	Plastic	Plastic	90 VAC	240 VAC	Ball			120 mm	120 mm	240 VAC	100 VAC	Tubeaxial	38 mm	42 dB	4.4 W	CE CSA PSE TUV UL	84.7 Pa	0.34 in H2O	0.639 lb	289.85 g	106 CFM	2.97 m³/min	3250 RPM	-4 °F	167 °F	2
