M2T12TX Series

Catalog

SWITCH ROCKER SPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Features	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Termination Style	Circuit	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Actuator Marking	Actuator Type	Color - Actuator/Cap	Mounting Type
NKK Switches M2T12TXG30-DA	50000 Cycles	50000 Cycles	Process Sealed	28 V	On-On	0.4 VA	PC Pin	SPDT	CSA UL	85 °C	-30 ░C	28 V	No Marking	Concave	Black	Right Angle Through Hole
NKK Switches M2T12TXW41-GC	25000 Steps	50000 Cycles	Process Sealed	125 V	On-On	4 A 6 A	PC Pin	SPDT	CSA UL	85 °C	-30 ░C	30 V	No Marking	Paddle	Red	Right Angle Through Hole Vertical

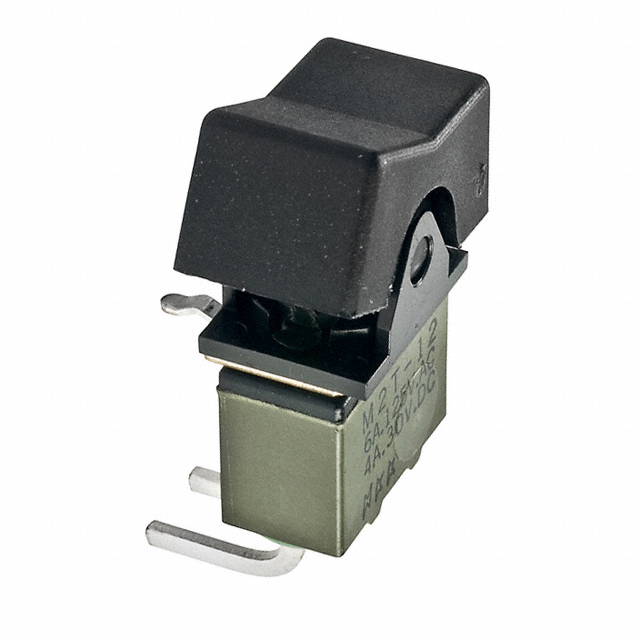

NKK Switches M2T12TXW30-DA	25000 Steps	50000 Cycles	Process Sealed	125 V	On-On	4 A 6 A	PC Pin	SPDT	CSA UL	85 °C	-30 ░C	30 V	No Marking	Concave	Black	Right Angle Through Hole
NKK Switches M2T12TXG13-DB	50000 Cycles	50000 Cycles	Process Sealed	28 V	On-On	0.4 VA	PC Pin	SPDT	CSA UL	85 °C	-30 ░C	28 V	No Marking	Concave	White	Through Hole
NKK Switches M2T12TXW41-FH	25000 Steps	50000 Cycles	Process Sealed	125 V	On-On	4 A 6 A	PC Pin	SPDT	CSA UL	85 °C	-30 ░C	30 V	No Marking	Concave		Right Angle Through Hole Vertical

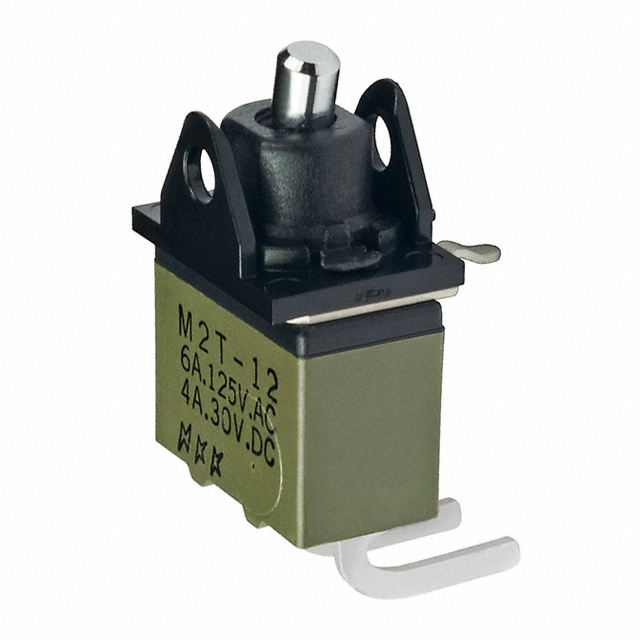

NKK Switches M2T12TXW30	25000 Steps	50000 Cycles	Process Sealed	125 V	On-On	4 A 6 A	PC Pin	SPDT	CSA UL	85 °C	-30 ░C	30 V	Varies by Cap	Actuator Arm Cap Required		Right Angle Through Hole
NKK Switches M2T12TXG13-DH	50000 Cycles	50000 Cycles	Process Sealed	28 V	On-On	0.4 VA	PC Pin	SPDT	CSA UL	85 °C	-30 ░C	28 V	No Marking	Concave		Through Hole

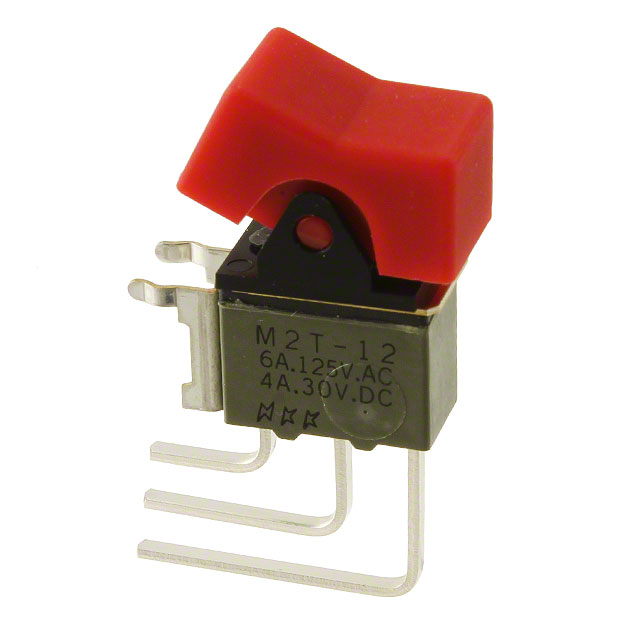

NKK Switches M2T12TXW41-DC	25000 Steps	50000 Cycles	Process Sealed	125 V	On-On	4 A 6 A	PC Pin	SPDT	CSA UL	85 °C	-30 ░C	30 V	No Marking	Concave	Red	Right Angle Through Hole Vertical

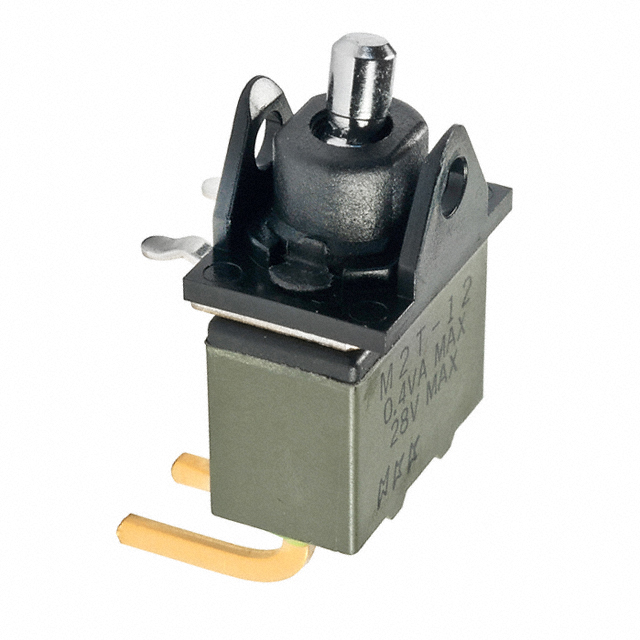

NKK Switches M2T12TXG30	50000 Cycles	50000 Cycles	Process Sealed	28 V	On-On	0.4 VA	PC Pin	SPDT	CSA UL	85 °C	-30 ░C	28 V	Varies by Cap	Actuator Arm Cap Required		Right Angle Through Hole
NKK Switches M2T12TXG41-DB	50000 Cycles	50000 Cycles	Process Sealed	28 V	On-On	0.4 VA	PC Pin	SPDT	CSA UL	85 °C	-30 ░C	28 V	No Marking	Concave	White	Right Angle Through Hole Vertical
