6713 Series

Catalog

HOOK-UP STRND 22AWG WHITE 100'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Material	Jacket (Insulation) Material	Jacket Color	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Ratings	Length [x]	Length [x]	Length	Length
ALPHA WIRE 6713 WH005	0.049 in	1.24 mm	30 AWG	7	0.009 in	0.23 mm	Hook-Up	Copper Tinned	Polyphenylene Ether Modified (mPPE)	White	600 V	-40 C	105 ░C	22 AWG	UL Style 11028	100 ft	30.5 m
ALPHA WIRE 6713 YL190	0.049 in	1.24 mm	30 AWG	7	0.009 in	0.23 mm	Hook-Up	Copper Tinned	Polyphenylene Ether Modified (mPPE)	Yellow	600 V	-40 C	105 ░C	22 AWG	UL Style 11028			7620 m	25000 '
ALPHA WIRE 6713 DB190	0.049 in	1.24 mm	30 AWG	7	0.009 in	0.23 mm	Hook-Up	Copper Tinned	Polyphenylene Ether Modified (mPPE)	Blue	600 V	-40 C	105 ░C	22 AWG	UL Style 11028			7620 m	25000 '
ALPHA WIRE 6713 OR013	0.049 in	1.24 mm	30 AWG	7	0.009 in	0.23 mm	Hook-Up	Copper Tinned	Polyphenylene Ether Modified (mPPE)	Orange	600 V	-40 C	105 ░C	22 AWG	UL Style 11028
ALPHA WIRE 6713 BR005	0.049 in	1.24 mm	30 AWG	7	0.009 in	0.23 mm	Hook-Up	Copper Tinned	Polyphenylene Ether Modified (mPPE)	Brown	600 V	-40 C	105 ░C	22 AWG	UL Style 11028	100 ft	30.5 m
ALPHA WIRE 6713 GR013	0.049 in	1.24 mm	30 AWG	7	0.009 in	0.23 mm	Hook-Up	Copper Tinned	Polyphenylene Ether Modified (mPPE)	Green	600 V	-40 C	105 ░C	22 AWG	UL Style 11028

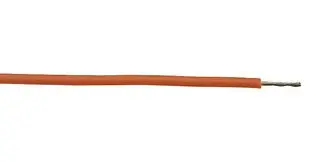

ALPHA WIRE 6713 OR005	0.049 in	1.24 mm	30 AWG	7	0.009 in	0.23 mm	Hook-Up	Copper Tinned	Polyphenylene Ether Modified (mPPE)	Orange	600 V	-40 C	105 ░C	22 AWG	UL Style 11028	100 ft	30.5 m
ALPHA WIRE 6713 DB001	0.049 in	1.24 mm	30 AWG	7	0.009 in	0.23 mm	Hook-Up	Copper Tinned	Polyphenylene Ether Modified (mPPE)	Blue	600 V	-40 C	105 ░C	22 AWG	UL Style 11028			304.8 m	1000 ft
ALPHA WIRE 6713 RD190	0.049 in	1.24 mm	30 AWG	7	0.009 in	0.23 mm	Hook-Up	Copper Tinned	Polyphenylene Ether Modified (mPPE)	Red	600 V	-40 C	105 ░C	22 AWG	UL Style 11028			7620 m	25000 '
ALPHA WIRE 6713 VI190	0.049 in	1.24 mm	30 AWG	7	0.009 in	0.23 mm	Hook-Up	Copper Tinned	Polyphenylene Ether Modified (mPPE)	Violet	600 V	-40 C	105 ░C	22 AWG	UL Style 11028			7620 m	25000 '
