CC2642R-Q1 Series

SimpleLink™ 32-bit Arm Cortex-M4F Bluetooth® Low Energy wireless MCU with 352kB Flash

Catalog

SimpleLink™ 32-bit Arm Cortex-M4F Bluetooth® Low Energy wireless MCU with 352kB Flash

Part	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Data Rate (Max)	Type	Package / Case	Memory Size [custom]	Memory Size [custom]	Current - Transmitting [Max]	Current - Transmitting [Min]	Current - Receiving	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	GPIO	Mounting Type	Sensitivity	Power - Output	Supplier Device Package	RF Family/Standard	Modulation	Memory Size

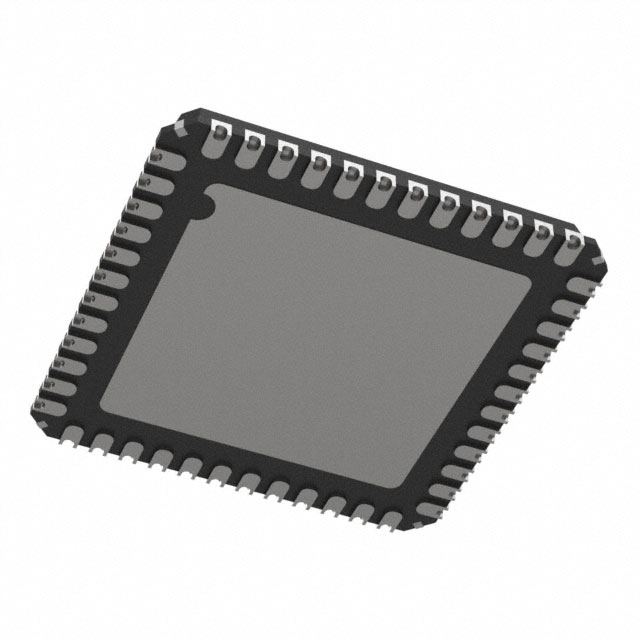

Texas Instruments CC2642R1TWFRTCRQ1	Bluetooth v5.1	105 °C	-40 °C	2.4 GHz	2 Mbps	TxRx + MCU	48-VFQFN Exposed Pad	80 kB	352 kB	9.6 mA	7.3 mA	6.9 mA	3.63 V	1.8 V	GPIO I2C I2S SPI UART	31	Surface Mount Wettable Flank	-105 dBm	5 dBm	48-VQFN (7x7)	Bluetooth
Texas Instruments CC2642R1FRGZT	Bluetooth v5.2	85 °C	-40 °C	2.4 GHz	2 Mbps	TxRx + MCU	48-VFQFN Exposed Pad	80 kB	352 kB	9.6 mA	7.3 mA	6.9 mA	3.8 V	1.8 V	GPIO I2C I2S SPI UART	31	Surface Mount	-105 dBm	5 dBm	48-VQFN (7x7)	Bluetooth	FSK
Texas Instruments CC2642R1FTWRGZRQ1	Bluetooth v5.2	105 °C	-40 °C	2.4 GHz	2 Mbps	TxRx + MCU	48-VFQFN Exposed Pad			9.6 mA	7.3 mA	6.9 mA	3.63 V	1.8 V	ADC GPIO I2C I2S SPI UART	31	Surface Mount Wettable Flank	-105 dBm	5 dBm	48-VQFN (7x7)	Bluetooth		88 kB 352 kB

Catalog

SimpleLink™ 32-bit Arm Cortex-M4F Bluetooth® Low Energy wireless MCU with 352kB Flash

Key Features

• MicrocontrollerPowerful 48 MHz Arm Cortex-M4F processorEEMBC CoreMark score: 148352 kB of in-system programmable flash256 kB of ROM for protocols and library functions8 kB of cache SRAM (alternatively available as general-purpose RAM)80 kB of ultra-low leakage SRAM. The SRAM is protected by parity to ensure high reliability of operation.2-pin cJTAG and JTAG debuggingSupports over-the-air (OTA) updateUltra-low power sensor controller with 4 kB of SRAMSample, store, and process sensor dataOperation independent from system CPUFast wake-up for low-power operationTI-RTOS, drivers, bootloader, Bluetooth 5.2 low energy controller in ROM for optimized application sizeRoHS-compliant package7 mm × 7 mm RGZ VQFN48 ( 31 GPIOs)PeripheralsDigital peripherals can be routed to any GPIO4× 32-bit or 8× 16-bit general-purpose timers12-bit ADC, 200 kSamples/s, 8 channels2× comparators with internal reference DAC (1× continuous time, 1× ultra-low power)Programmable current source2× UART2× SSI (SPI, MICROWIRE, TI)I 2C and I 2SReal-time clock (RTC)AES 128- and 256-bit cryptographic acceleratorECC and RSA public key hardware acceleratorSHA2 accelerator (full suite up to SHA-512)True random number generator (TRNG)Capacitive sensing, up to 8 channelsIntegrated temperature and battery monitorExternal systemOn-chip buck DC/DC converterLow powerActive mode RX: 6.9 mAActive mode TX 0 dBm: 7.0 mAActive mode TX 5 dBm: 9.2 mAActive mode MCU 48 MHz (CoreMark): 3.4 mA (71 µA/MHz)Sensor controller, low power-mode, 2 MHz, running infinite loop: 30.1 µASensor controller, active mode, 24 MHz, running infinite loop: 808 µAStandby: 0.94 µA (RTC on, 80 kB RAM and CPU retention)Shutdown: 150 nA (wakeup on external events)Radio section2.4 GHz RF transceiver compatible with Bluetooth 5.2 Low Energy and earlier LE specifications3-wire, 2-wire, 1-wire PTA coexistence mechanismsExcellent receiver sensitivity: -105 dBm for Bluetooth 125 kbps (LE Coded PHY) -97 dBm for 1 Mbps PHYOutput power up to +5 dBm with temperature compensationSuitable for systems targeting compliance with worldwide radio frequency regulationsEN 300 328, (Europe)EN 300 440 Category 2FCC CFR47 Part 15ARIB STD-T66 (Japan)Development Tools and SoftwareCC26x2R LaunchPad™ Development KitSimpleLink™ LOWPOWER F2 Software Development Kit (SDK)SmartRF™ Studiofor simple radio configurationSensor Controller Studiofor building low-power sensing applicationsMicrocontrollerPowerful 48 MHz Arm Cortex-M4F processorEEMBC CoreMark score: 148352 kB of in-system programmable flash256 kB of ROM for protocols and library functions8 kB of cache SRAM (alternatively available as general-purpose RAM)80 kB of ultra-low leakage SRAM. The SRAM is protected by parity to ensure high reliability of operation.2-pin cJTAG and JTAG debuggingSupports over-the-air (OTA) updateUltra-low power sensor controller with 4 kB of SRAMSample, store, and process sensor dataOperation independent from system CPUFast wake-up for low-power operationTI-RTOS, drivers, bootloader, Bluetooth 5.2 low energy controller in ROM for optimized application sizeRoHS-compliant package7 mm × 7 mm RGZ VQFN48 ( 31 GPIOs)PeripheralsDigital peripherals can be routed to any GPIO4× 32-bit or 8× 16-bit general-purpose timers12-bit ADC, 200 kSamples/s, 8 channels2× comparators with internal reference DAC (1× continuous time, 1× ultra-low power)Programmable current source2× UART2× SSI (SPI, MICROWIRE, TI)I 2C and I 2SReal-time clock (RTC)AES 128- and 256-bit cryptographic acceleratorECC and RSA public key hardware acceleratorSHA2 accelerator (full suite up to SHA-512)True random number generator (TRNG)Capacitive sensing, up to 8 channelsIntegrated temperature and battery monitorExternal systemOn-chip buck DC/DC converterLow powerActive mode RX: 6.9 mAActive mode TX 0 dBm: 7.0 mAActive mode TX 5 dBm: 9.2 mAActive mode MCU 48 MHz (CoreMark): 3.4 mA (71 µA/MHz)Sensor controller, low power-mode, 2 MHz, running infinite loop: 30.1 µASensor controller, active mode, 24 MHz, running infinite loop: 808 µAStandby: 0.94 µA (RTC on, 80 kB RAM and CPU retention)Shutdown: 150 nA (wakeup on external events)Radio section2.4 GHz RF transceiver compatible with Bluetooth 5.2 Low Energy and earlier LE specifications3-wire, 2-wire, 1-wire PTA coexistence mechanismsExcellent receiver sensitivity: -105 dBm for Bluetooth 125 kbps (LE Coded PHY) -97 dBm for 1 Mbps PHYOutput power up to +5 dBm with temperature compensationSuitable for systems targeting compliance with worldwide radio frequency regulationsEN 300 328, (Europe)EN 300 440 Category 2FCC CFR47 Part 15ARIB STD-T66 (Japan)Development Tools and SoftwareCC26x2R LaunchPad™ Development KitSimpleLink™ LOWPOWER F2 Software Development Kit (SDK)SmartRF™ Studiofor simple radio configurationSensor Controller Studiofor building low-power sensing applications

Description

The SimpleLink™ CC2642R device is a 2.4 GHz wireless microcontroller (MCU) supportingBluetooth 5.2 Low Energyand Proprietary 2.4 GHz applications. The device is optimized for low-power wireless communication and advanced sensing inbuilding security systems,HVAC,asset tracking,medical,wired networking,portable electronics,home theater & entertainment, andconnected peripheralsmarkets markets, and applications where industrial performance is required. The highlighted features of this device include: The CC2642R device is part of the SimpleLink™ MCU platform, which consists of Wi-Fi, Bluetooth Low Energy, Thread, Zigbee, Sub-1 GHz MCUs, and host MCUs. The CC2642R is part of a scalable portfolio with flash sizes from 32 kB to 704 kB with pin-to-pin compatible package options and share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink™ platform enables you to add any combination of the portfolio’s devices into your design, allowing a high degree of code reuse when your design requirements change. For more information, visitSimpleLink™ MCU platform. The SimpleLink™ CC2642R device is a 2.4 GHz wireless microcontroller (MCU) supportingBluetooth 5.2 Low Energyand Proprietary 2.4 GHz applications. The device is optimized for low-power wireless communication and advanced sensing inbuilding security systems,HVAC,asset tracking,medical,wired networking,portable electronics,home theater & entertainment, andconnected peripheralsmarkets markets, and applications where industrial performance is required. The highlighted features of this device include: The CC2642R device is part of the SimpleLink™ MCU platform, which consists of Wi-Fi, Bluetooth Low Energy, Thread, Zigbee, Sub-1 GHz MCUs, and host MCUs. The CC2642R is part of a scalable portfolio with flash sizes from 32 kB to 704 kB with pin-to-pin compatible package options and share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink™ platform enables you to add any combination of the portfolio’s devices into your design, allowing a high degree of code reuse when your design requirements change. For more information, visitSimpleLink™ MCU platform.
