QBLP679 Series
Manufacturer: QT Brightek (QTB)
Beta
⌘K

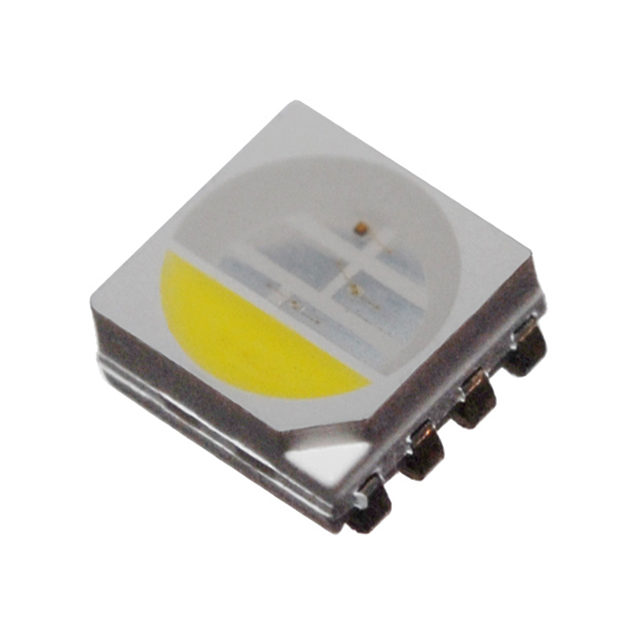

LED RGBW DIFFUSED 8PLCC SMD
| Part | Voltage - Forward (Vf) (Typ) | Lens Style | Mounting Type | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Size / Dimension [y] | Size / Dimension [x] | Configuration | Lens Transparency | Viewing Angle | Millicandela Rating | Lens Size [diameter] | Supplier Device Package | Height (Max) [Max] [z] | Wavelength - Dominant | Package / Case | Lens Color | Color | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 QT Brightek (QTB) | 2 V 3.2 V 3.2 V | Round with Flat Top | Surface Mount | 20 mA | 20 mA | 20 mA | 20 mA | 5 mm | 5 mm | Independent | Diffused | 120 ° | 450 mcd 500 mcd 2200 mcd | 4.5 mm | 8-PLCC | 1.65 mm | 470 nm 525 nm 624 nm | 2020 (5050 Metric) | Yellow | Blue Green Red White | |
 QT Brightek (QTB) | 2 V | Round with Flat Top | Surface Mount | 5 mm | 5 mm | Standard | Clear | 120 ° | 1600 mcd | 4 mm Dia | 6-PLCC | 1.6 mm | 590 nm | 6-SMD J-Lead | Colorless | Yellow | 60 mA |
