AS2N-5M Series

Catalog

SWITCH SLIDE DPDT 50MA 48V

Part	Electrical Life	Operating Force [Min]	Operating Force [Max]	Switch Travel	Voltage Rating - AC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Voltage Rating - DC	Termination Style	Contact Finish	Current Rating (Amps)	Switch Function	Actuator Length [x]	Contact Timing

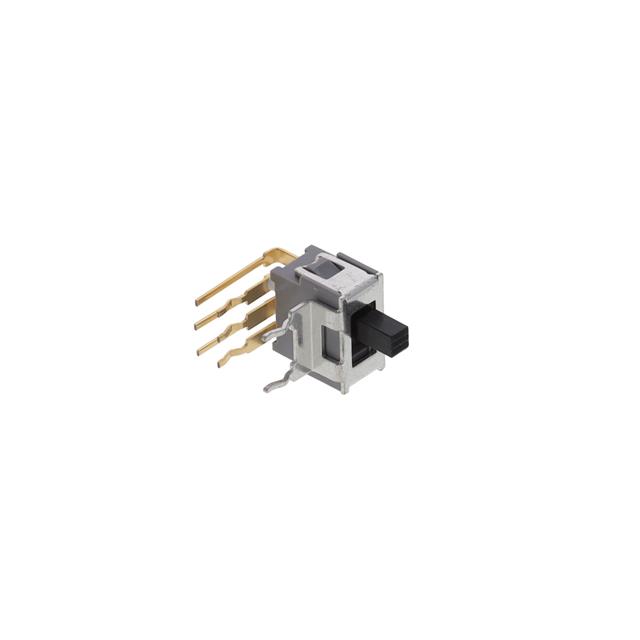

Nidec Components Corporation AS2N-5M-10-Z	10000 Cycles	70 gf	500 gf	2.2 mm	48 V	DPDT	85 °C	-20 ░C	Standard	Right Angle Through Hole	48 V	PC Pin	Gold	50 mA	On-On	4.3 mm	Non-Shorting (BBM)
