R10 Series

Manufacturer: Sumitomo Electric Interconnect Products, Inc.

Catalog

SUMITUBE R10-HEAT-SHRNKABLE FEET

Part	Spool Size [x]	Spool Size [x]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life	Features	Recovered Wall Thickness	Recovered Wall Thickness	Color	Material	Length	Shrink Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Spool Size	Spool Size	Inner Diameter - Recovered [diameter]

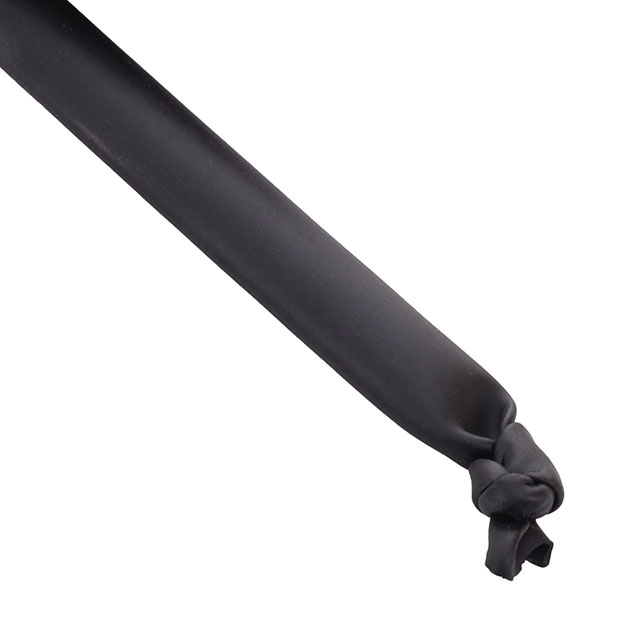

Sumitomo Electric Interconnect Products, Inc. R10 1/4 BLACK SPL	304.8 m	1000 ft	1	2	3.63 mm	0.143 "	60 Months	Abrasion Resistant Chemical Resistant Flame Retardant	0.035 in	0.89 mm	Black	Polyolefin (PO) Chlorinated	Enter Number of Feet in Order Quantity	150 °C	120 °C	-75 °C	Tubing Flexible	0.25 "	6.35 mm
Sumitomo Electric Interconnect Products, Inc. R10 1/8 BLACK SPL	609.6 m	2000 ft	1	2	1.57 mm	0.062 in	60 Months	Abrasion Resistant Chemical Resistant Flame Retardant	0.027 in	0.69 mm	Black	Polyolefin (PO) Chlorinated	Enter Number of Feet in Order Quantity	150 °C	120 °C	-75 °C	Tubing Flexible	3.18 mm		0.125 in
Sumitomo Electric Interconnect Products, Inc. R10 1 BLACK SPL			1	2	0.57 "		60 Months	Abrasion Resistant Chemical Resistant Flame Retardant	0.07 in	1.78 mm	Black	Polyolefin (PO) Chlorinated	Enter Number of Feet in Order Quantity	150 °C	120 °C	-75 °C	Tubing Flexible	25.4 mm		1 in	91.4 m	300 ft	14.48 mm
Sumitomo Electric Interconnect Products, Inc. R10 1/2 BLACK SPL	152.4 m	500 ft	1	2	7.26 mm	0.286 in	60 Months	Abrasion Resistant Chemical Resistant Flame Retardant	0.048 in	1.22 mm	Black	Polyolefin (PO) Chlorinated	Enter Number of Feet in Order Quantity	150 °C	120 °C	-75 °C	Tubing Flexible	12.7 mm		0.5 "
