MW7IC Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

IC AMP CDMA 2.11-2.17GHZ TO272WB

Part	Mounting Type	P1dB	Frequency [Min]	Frequency [Max]	Voltage - Supply	Gain	Package / Case	RF Type	Supplier Device Package	Test Frequency	Current - Supply	Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Test	Current - Test	Power - Output	Voltage - Rated

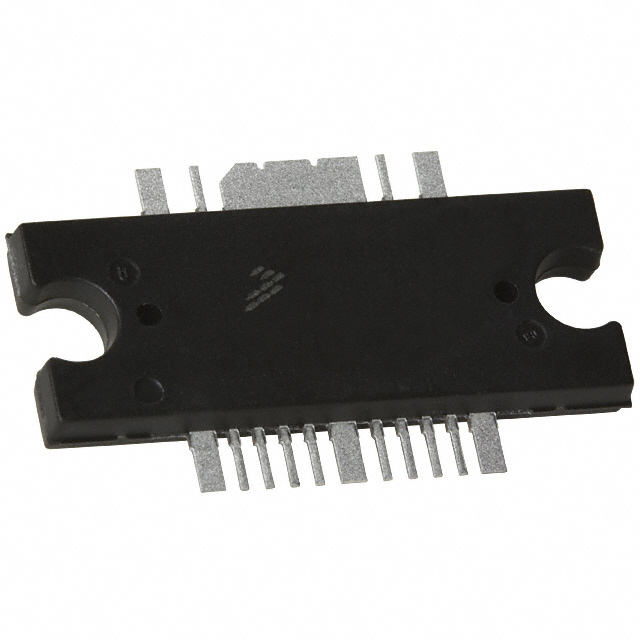

Freescale Semiconductor - NXP MW7IC2220NBR1	Chassis Mount	43 dBm	2.11 GHz	2.17 GHz	28 V	31 dB	TO-272-16 Variant Flat Leads	W-CDMA	TO-272 WB-16	2.14 GHz	300 mA

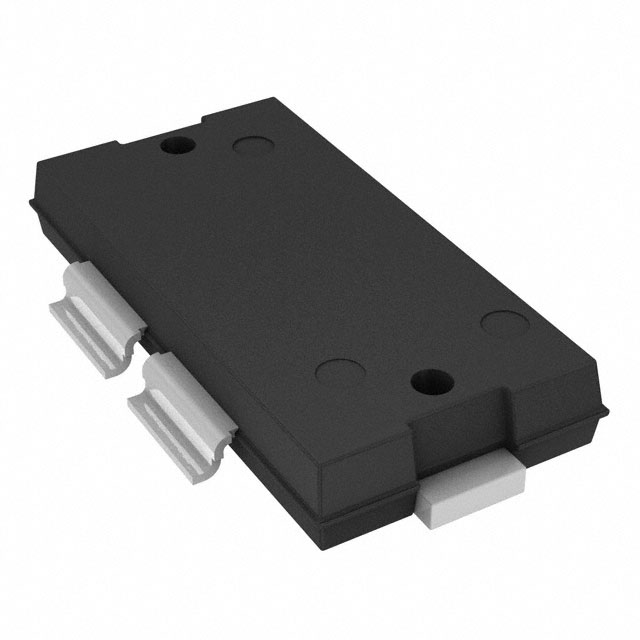

Freescale Semiconductor - NXP MW7IC2750GNR1	Surface Mount	47 dBm	2.3 GHz	2.7 GHz	28 V	26 dBi	TO-270-14 Variant Gull Wing	WiMax	TO-270 WB-14 GULL	2.7 GHz	550 mA

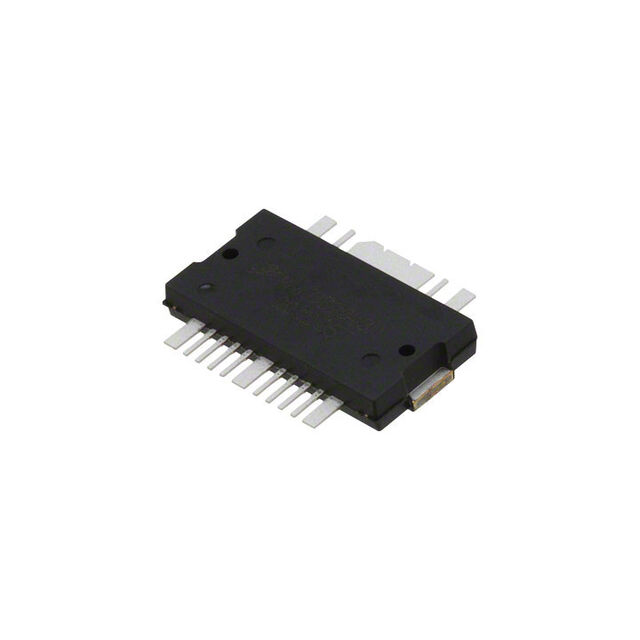

Freescale Semiconductor - NXP MW7IC2425NR1	Chassis Mount				28 V	27.7 dB	TO-270-16 Variant Flat Leads	ISM	TO-270 WBL-16	2.45 GHz	195 mA	2.45 GHz

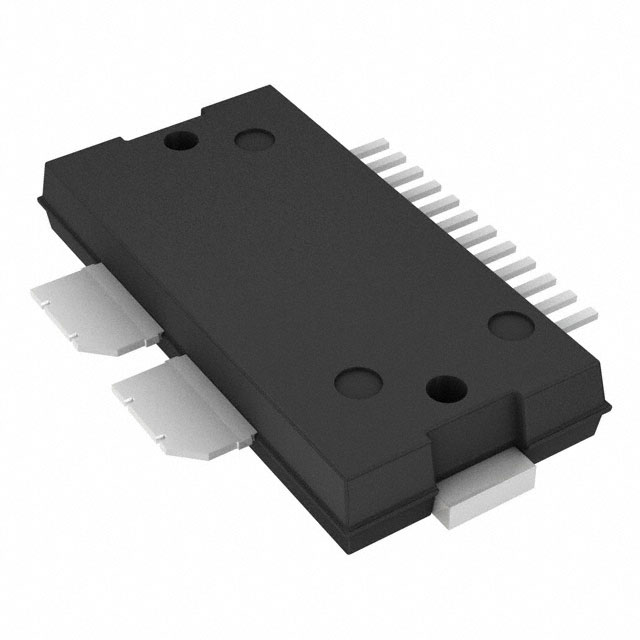

Freescale Semiconductor - NXP MW7IC2750NR1	Chassis Mount	47 dBm	2.3 GHz	2.7 GHz	28 V	26 dBi	TO-270-14 Variant Flat Leads	WiMax	TO-270 WB-14	2.7 GHz	550 mA
Freescale Semiconductor - NXP MW7IC2220NR1	Chassis Mount	43 dBm	2.11 GHz	2.17 GHz	28 V	31 dB	TO-270-16 Variant Flat Leads	W-CDMA	TO-270 WBL-16	2.14 GHz	300 mA
Freescale Semiconductor - NXP MW7IC18100NBR1	Chassis Mount	51.93 dBm	1.805 GHz	2.05 GHz		30 dBi	TO-272-14 Variant Flat Leads	EDGE GSM	TO-272 WB-14	1.9 GHz	1.18 A		24 V	32 VDC
Freescale Semiconductor - NXP MW7IC2750NBR1	Chassis Mount	47 dBm	2.3 GHz	2.7 GHz	28 V	26 dBi	TO-272-14 Variant Flat Leads	WiMax	TO-272 WB-14	2.7 GHz	550 mA
Freescale Semiconductor - NXP MW7IC2240NBR1	Chassis Mount	46 dBm	2.11 GHz	2.17 GHz	32 VDC	30 dBi	TO-272-16 Variant Flat Leads	W-CDMA	TO-272 WB-16	2.14 GHz	420 mA
Freescale Semiconductor - NXP MW7IC2425GNR1	Surface Mount				28 V	27.7 dB	TO-270-16 Variant Gull Wing	ISM	TO-270 WBL-16 GULL	2.45 GHz	195 mA	2.45 GHz
Freescale Semiconductor - NXP MW7IC2425NBR1	Chassis Mount					27.7 dB	TO-272-16 Variant Flat Leads		TO-272 WB-16			2.45 GHz			28 V	55 mA	25 W	65 V
