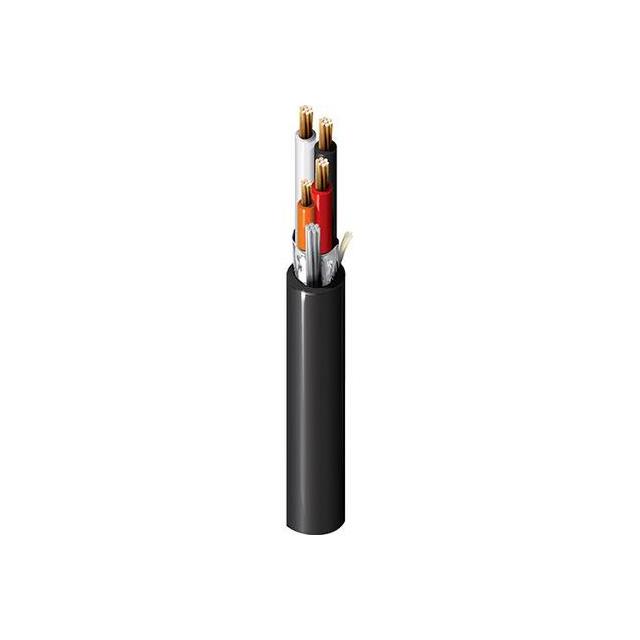

1084A Series
Manufacturer: Belden Inc.
Beta
⌘K
CABLE 25COND 20AWG/22AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Cable Type | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Conductor Insulation | Wire Gauge | Conductor Strand [custom] | Conductor Strand [x] | Voltage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Features | Length | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Foil | Multi-Triad | UL Style 2464 | 1.6 mm | 0.063 in | 25 | Poly-Vinyl Chloride (PVC) | 20 22 | 28 30 | 7 | 300 VDC | Copper Bare | 0.641 in | 16.28 mm | Black | Drain Wire Rip Cord | 2286 m | 7500 ft |
