W42BCC-P Series
Manufacturer: ODU
Beta
⌘K

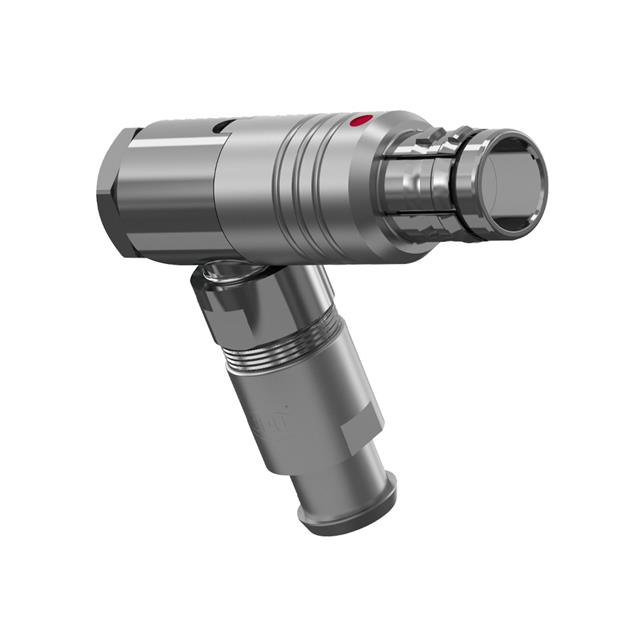

ODU MINI-SNAP R/A PLUG, STY 4, S
| Part | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shielding | Cable Opening [Min] | Cable Opening [Max] | Number of Positions | Shell Finish | Contact Finish - Mating | Connector Type | Contact Material | Shell Material | Current Rating (Amps) | Orientation | Shell Size - Insert [custom] | Color | Fastening Type | Voltage Rating | Insert Material | Primary Material | Backshell Material, Plating | Mounting Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Backshell Strain Relief | Unshielded | 0.335 in 8.5 mm | 0.354 in 9 mm | 10 | Chrome over Nickel | Gold | Plug Male Pins | Brass | Brass | 7.5 A | C | 2 | Silver | Push-Pull | 500 V | Polyetheretherketone (PEEK) | Metal | Brass Chrome over Nickel | Free Hanging (In-Line) Right Angle | IP68 - Dust Tight Waterproof |
