951140 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

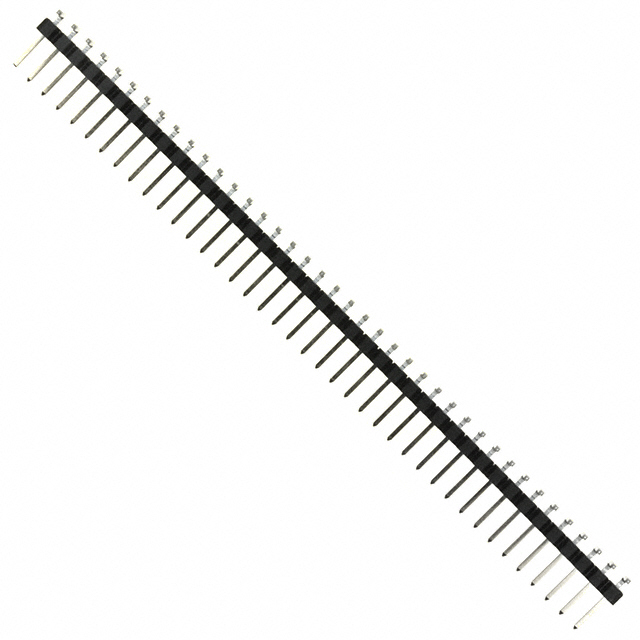

70200303280 951140-7622-AR=40/PS/BMT/2MM/1R/RA/PTH/4.0/2.8/10U/RC ROHS COMPLIANT: YES
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Insulation Height [z] | Insulation Height [z] | Mounting Type | Contact Shape | Termination | Number of Rows | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Length - Post [custom] | Contact Length - Post | Fastening Type | Shrouding | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Material | Connector Type | Insulation Color | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 39.4 çin | 1 çm | 40 | 2 mm | 0.079 in | Right Angle Through Hole | Square | Solder | 1 | UL94 V-0 | Flash | 0.11 in | 2.79 mm | Push-Pull | Unshrouded | Gold | -55 C | 125 °C | Thermoplastic | 0.079 " | 2 mm | Tin | Copper Alloy | Header | Black | All | 0.173 in | 4.4 mm | Male Pin |
 3M Electronic Specialty | 39.4 çin | 1 çm | 40 | 2 mm | 0.079 in | Right Angle Through Hole | Square | Solder | 1 | UL94 V-0 | Flash | 0.11 in | 2.79 mm | Push-Pull | Unshrouded | Gold | -55 C | 125 °C | Thermoplastic | 0.079 " | 2 mm | Tin | Copper Alloy | Header | Black | All | 0.305 in | 7.75 mm | Male Pin |
