PCS Series
Manufacturer: Ohmite
Beta
⌘K
RES, R003, 1W, 1206, METAL ALLOY ROHS COMPLIANT: YES
| Part | Number of Terminations [custom] | Power (Watts) | Supplier Device Package | Package / Case | Composition | Resistance | Features | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) | Tolerance | Temperature Coefficient | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Size / Dimension [y] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

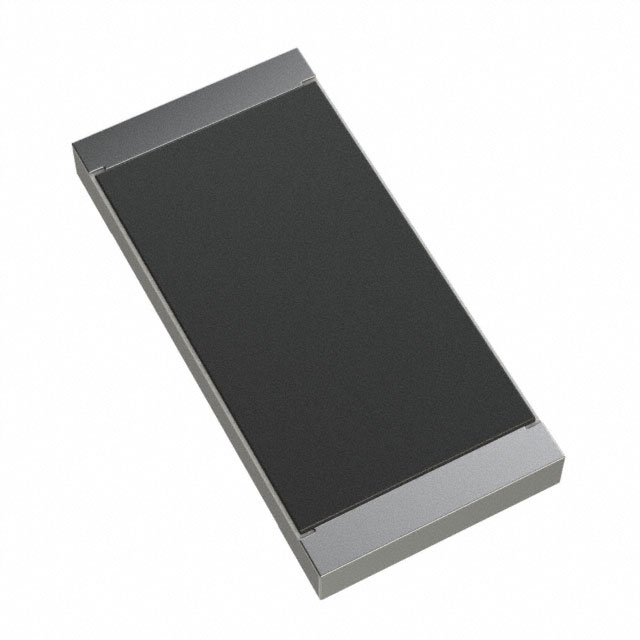

 Ohmite | 2 | 1 W | 1206 | 1206 (3216 Metric) | Metal Film | 3 mOhms | Current Sense | 0.126 in 3.2 mm | 0.065 in 1.65 mm | 0.027 in | 0.68 mm | 1 % | 50 ppm/░C | 170 °C | -55 C | |||||||

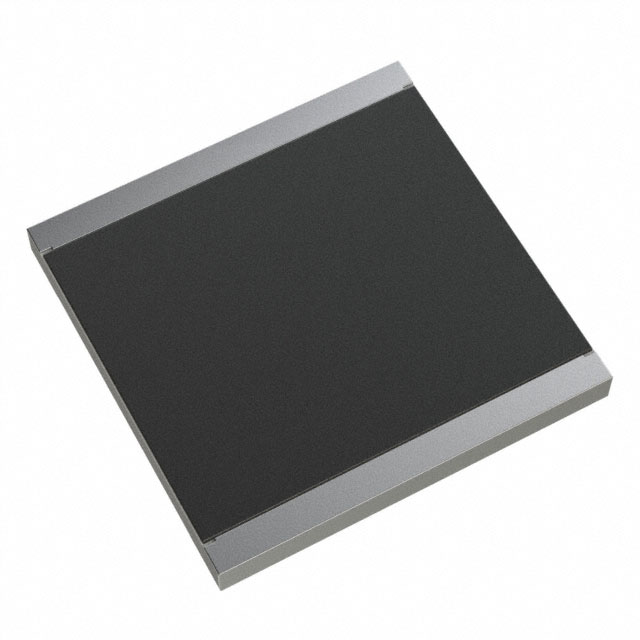

 Ohmite | 2 | 4 W | 2728 Wide 2827 | Metal Film | 0.05 Ohms | Current Sense | 6.6 mm | 6.7 mm | 0.034 in | 0.5 % | 50 ppm/░C | 170 °C | -55 C | 2728 | 0.87 mm | 0.264 " | 0.26 in | |||||

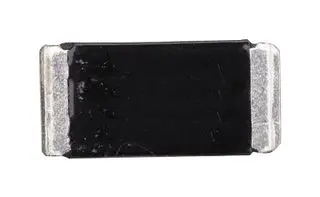

 Ohmite | 2 | 2 W | 2512 2512 (6432 Metric) | Metal Film | 1 mOhms | Current Sense | 6.35 mm | 1 % | 50 ppm/░C | 170 °C | -55 C | 2512 | 0.66 mm | 0.12 in | 0.25 in | 0.026 in | 3.05 mm | 6332 Metric |
