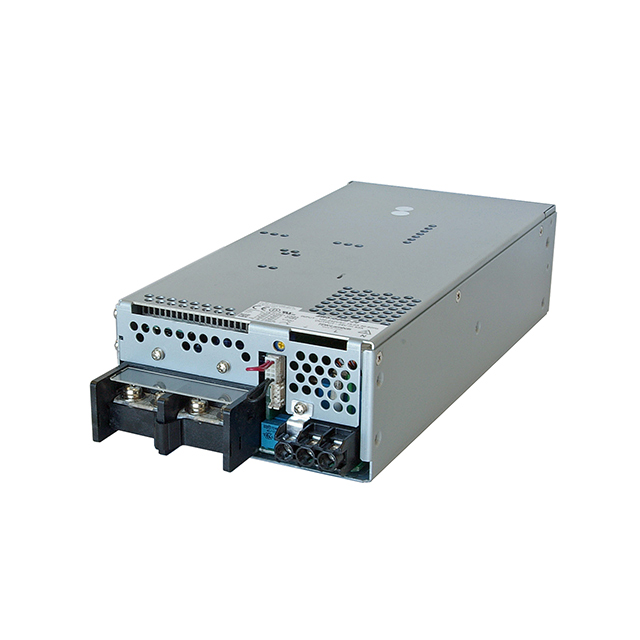

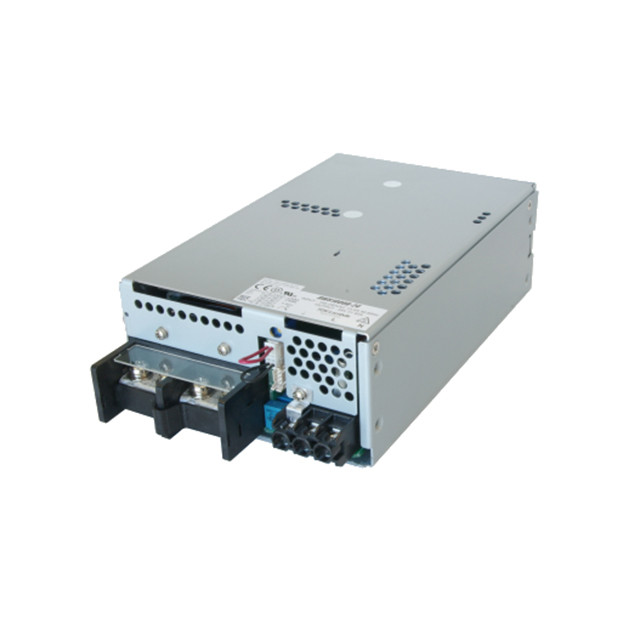

RWS1000 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.008 KW, 24 V, 42 A
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Voltage - Output 1 | Applications | Mounting Type | Type | Power (Watts) | Voltage - Isolation | Features | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Current - Output 1 | Efficiency | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 85 VAC 120 VDC | 265 VAC 340 VDC | CE | 60 °C | -20 °C | 1 | 24 V | ITE (Commercial) | Chassis Mount | Conformal Coated Enclosed | 1.008 kW | 4000 V | Adjustable Output DC Input Capable Remote Sense Universal Input | 7.8 in | 198.1 mm | 2.48 " | 63 mm | 5 in | 5 in | 42 A | 88 % | |
TDK Corporation | 85 VAC 120 VDC | 265 VAC 340 VDC | CE | 60 °C | -20 °C | 1 | 12 V | Medical | Chassis Mount | Enclosed | 1.008 kW | 4000 V | Remote Sense Universal Input | 7.8 in | 198.1 mm | 2.48 " | 63 mm | 5 in | 5 in | 84 A | 85 % | |
 TDK Corporation | 85 VAC 120 VDC | 265 VAC 340 VDC | CE | 60 °C | -20 °C | 1 | 12 V | ITE (Commercial) | Chassis Mount | Enclosed | 1.008 kW | 4000 V | Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input | 7.8 in | 198.1 mm | 2.48 " | 63 mm | 5 in | 5 in | 84 A | 85 % | |
TDK Corporation | 85 VAC 120 VDC | 265 VAC 340 VDC | CE | 60 °C | -20 °C | 1 | 15 V | ITE (Commercial) | Chassis Mount | Enclosed | 1005 W | 4000 V | Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input | 7.8 in | 198.1 mm | 2.48 " | 63 mm | 5 in | 5 in | 67 A | 85 % | |
 TDK Corporation | 85 VAC 120 VDC | 265 VAC 340 VDC | CE | 60 °C | -20 °C | 1 | 48 V | Medical | Chassis Mount | Enclosed | 1.008 kW | 4000 V | Remote Sense Universal Input | 7.8 in | 198.1 mm | 2.48 " | 63 mm | 5 in | 5 in | 21 A | 88 % | |
TDK Corporation | 85 VAC 120 VDC | 265 VAC 340 VDC | CE | 60 °C | -20 °C | 1 | ITE (Commercial) | Chassis Mount | Enclosed | 1.008 kW | 4000 V | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 7.8 in | 198.1 mm | 2.48 " | 63 mm | 5 in | 5 in | 28 A | 88 % | 36 V | |
TDK Corporation | 85 VAC 120 VDC | 265 VAC 340 VDC | CE | 60 °C | -20 °C | 1 | 24 V | ITE (Commercial) | Chassis Mount | Enclosed | 1.008 kW | 4000 V | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | 7.8 in | 198.1 mm | 2.48 " | 63 mm | 5 in | 5 in | 42 A | 88 % | |
TDK Corporation | 85 VAC 120 VDC | 265 VAC 340 VDC | CE | 60 °C | -20 °C | 1 | ITE (Commercial) | Chassis Mount | Conformal Coated Enclosed | 1.008 kW | 4000 V | Adjustable Output DC Input Capable Remote Sense Universal Input | 7.8 in | 198.1 mm | 2.48 " | 63 mm | 5 in | 5 in | 28 A | 88 % | 36 V | |
TDK Corporation | 85 VAC 120 VDC | 265 VAC 340 VDC | CE | 60 °C | -20 °C | 1 | 48 V | ITE (Commercial) | Chassis Mount | Enclosed | 1.008 kW | 4000 V | Adjustable Output DC Input Capable Remote Sense Universal Input | 7.8 in | 198.1 mm | 2.48 " | 63 mm | 5 in | 5 in | 21 A | 88 % | |
TDK Corporation | 85 VAC 120 VDC | 265 VAC 340 VDC | CE | 60 °C | -20 °C | 1 | 15 V | ITE (Commercial) | Chassis Mount | Enclosed | 1005 W | 4000 V | Adjustable Output DC Input Capable Remote On/Off Universal Input | 7.8 in | 198.1 mm | 2.48 " | 63 mm | 5 in | 5 in | 67 A | 85 % |
