M2013ES Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Termination Style	Features	Bushing Thread	Circuit	Switch Function	Actuator Length [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Illumination	Bushing Thread
NKK Switches M2013ES1W01	25000 Steps	Brass Chrome Plated	6.5 mm	125 V	30 V	Flatted	Solder Lug	Epoxy Sealed Terminals	1/4-40	SPDT	On-Off-On	11.4 mm	Panel Mount	85 °C	-30 ░C	3 A 6 A	Non-Illuminated

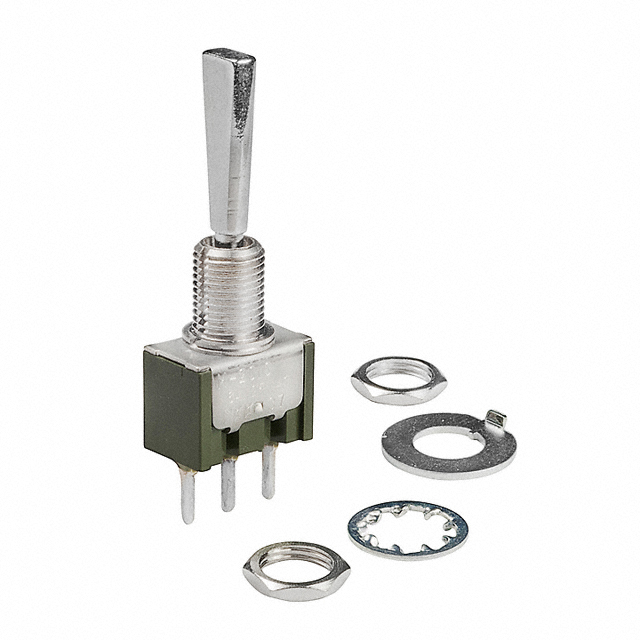

NKK Switches M2013ES1W03	25000 Steps	Brass Chrome Plated	6.5 mm	125 V	30 V	Flatted	PC Pin	Epoxy Sealed Terminals	1/4-40	SPDT	On-Off-On	11.4 mm	Panel Mount	85 °C	-30 ░C	3 A 6 A	Non-Illuminated
NKK Switches M2013ES1G40	50000 Cycles	Brass Chrome Plated	6.5 mm	28 V	28 V	Flatted	PC Pin	Epoxy Sealed Terminals	1/4-40	SPDT	On-Off-On	11.4 mm	Panel Mount Right Angle Vertical	85 °C	-30 ░C	0.4 VA	Non-Illuminated
NKK Switches M2013ES4W01	25000 Steps	Brass Chrome Plated	6.5 mm	125 V	30 V	Flatted	Solder Lug	Epoxy Sealed Terminals	M6	SPDT	On-Off-On	11.4 mm	Panel Mount	85 °C	-30 ░C	3 A 6 A	Non-Illuminated	0.75

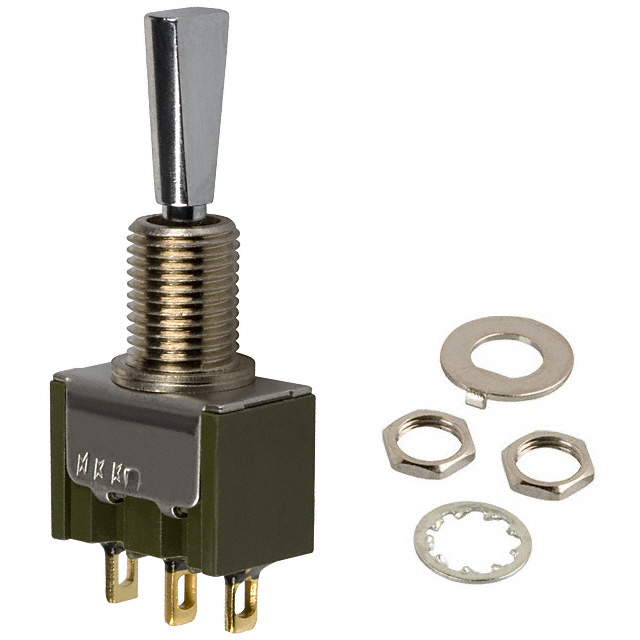

NKK Switches M2013ES1G01	50000 Cycles	Brass Chrome Plated	6.5 mm	28 V	28 V	Flatted	Solder Lug	Epoxy Sealed Terminals	1/4-40	SPDT	On-Off-On	11.4 mm	Panel Mount	85 °C	-30 ░C	0.4 VA	Non-Illuminated
