LHS-03 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER VERT 3POS 2.54MM
| Part | Insulation Height [z] | Insulation Height | Number of Positions Loaded | Contact Type | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination | Overall Contact Length | Overall Contact Length | Contact Shape | Shrouding | Insulation Color | Contact Finish - Post | Style | Contact Material | Contact Length - Post [x] | Contact Length - Post | Material Flammability Rating | Connector Type | Current Rating (Amps) | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Pitch - Mating | Pitch - Mating | Fastening Type | Insulation Material | Number of Rows | Insulation Height [z] | Contact Length - Post | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

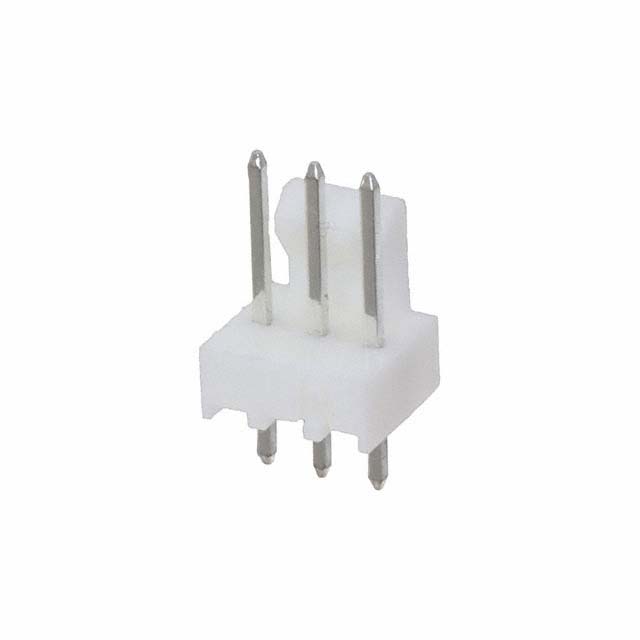

 Adam Tech | 0.327 " | 8.3 mm | All | Male Pin | 250 VAC | 85 °C | -25 °C | Through Hole | Solder | 14.2 mm | 0.559 " | Square | Shrouded - 1 Wall | White | Tin | Board to Cable/Wire | Brass | 0.134 " | 3.4 mm | UL94 V-0 | Header | 3 A | 7.6 mm | 0.299 in | 0.1 " | 2.54 mm | Friction Lock | Nylon 6/6 Polyamide (PA66) | 1 | ||||

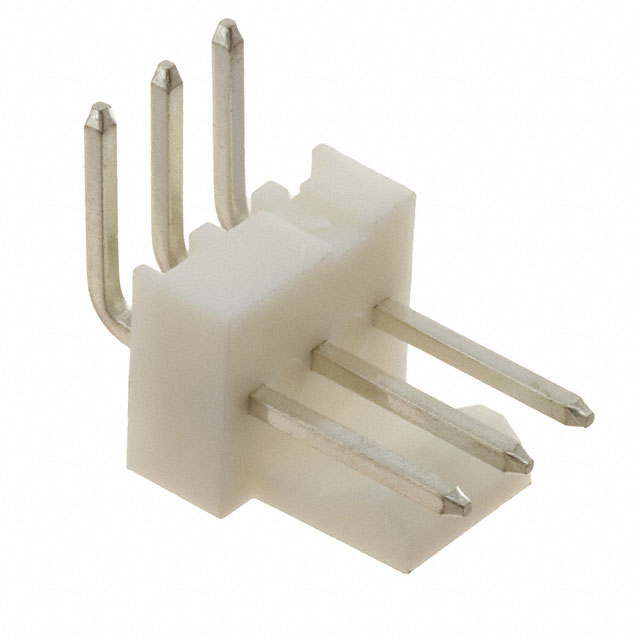

 Adam Tech | 0.252 " | All | Male Pin | 250 VAC | 85 °C | -25 °C | Right Angle Through Hole | Solder | Square | Shrouded - 1 Wall | White | Tin | Board to Cable/Wire | Brass | 3.3 mm | UL94 V-0 | Header | 3 A | 0.1 " | 2.54 mm | Friction Lock | Nylon 6/6 Polyamide (PA66) | 1 | 6.4 mm | 0.13 " | 6.7 mm | 0.264 in |
