Axicom P2 Signal Relay Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
RELAY GEN PURPOSE DPDT 2A 24V
| Part | Termination Style | Switching Voltage [Max] | Contact Material | Mounting Type | Must Operate Voltage | Operate Time | Contact Rating (Current) | Coil Type | Must Release Voltage | Contact Form | Coil Voltage | Release Time | Relay Type | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Coil Resistance | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

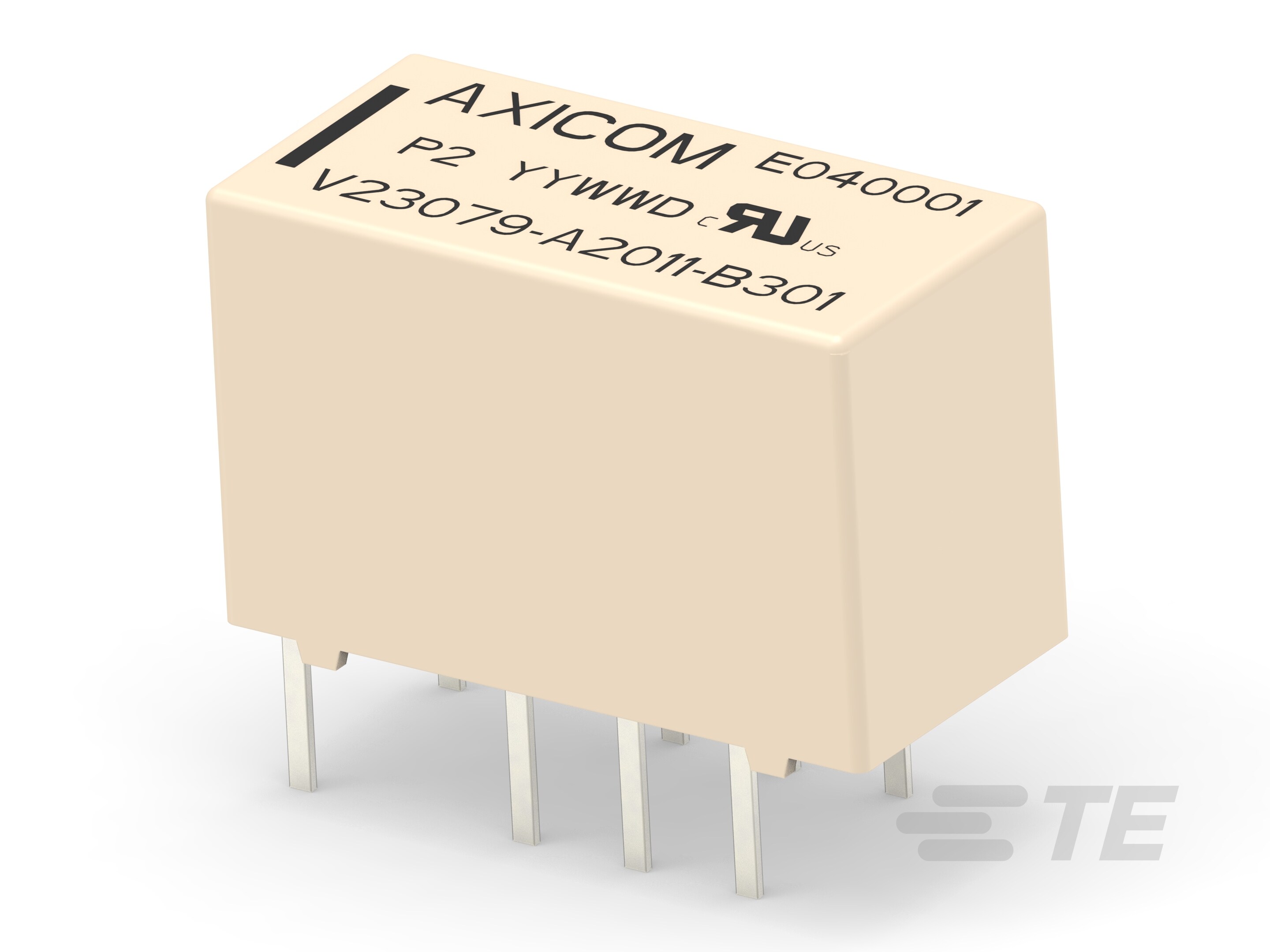

 TE Connectivity AMP Connectors | PC Pin | 220 VDC 250 VAC | Gold (Au) Silver Nickel (AgNi) | Through Hole | 18 VDC | 4 ms | 2 A | Non Latching | 2.4 VDC | DPDT (2 Form C) | 24 VDC | 4 ms | General Purpose | 5.8 mA | 85 °C | -40 C | ||

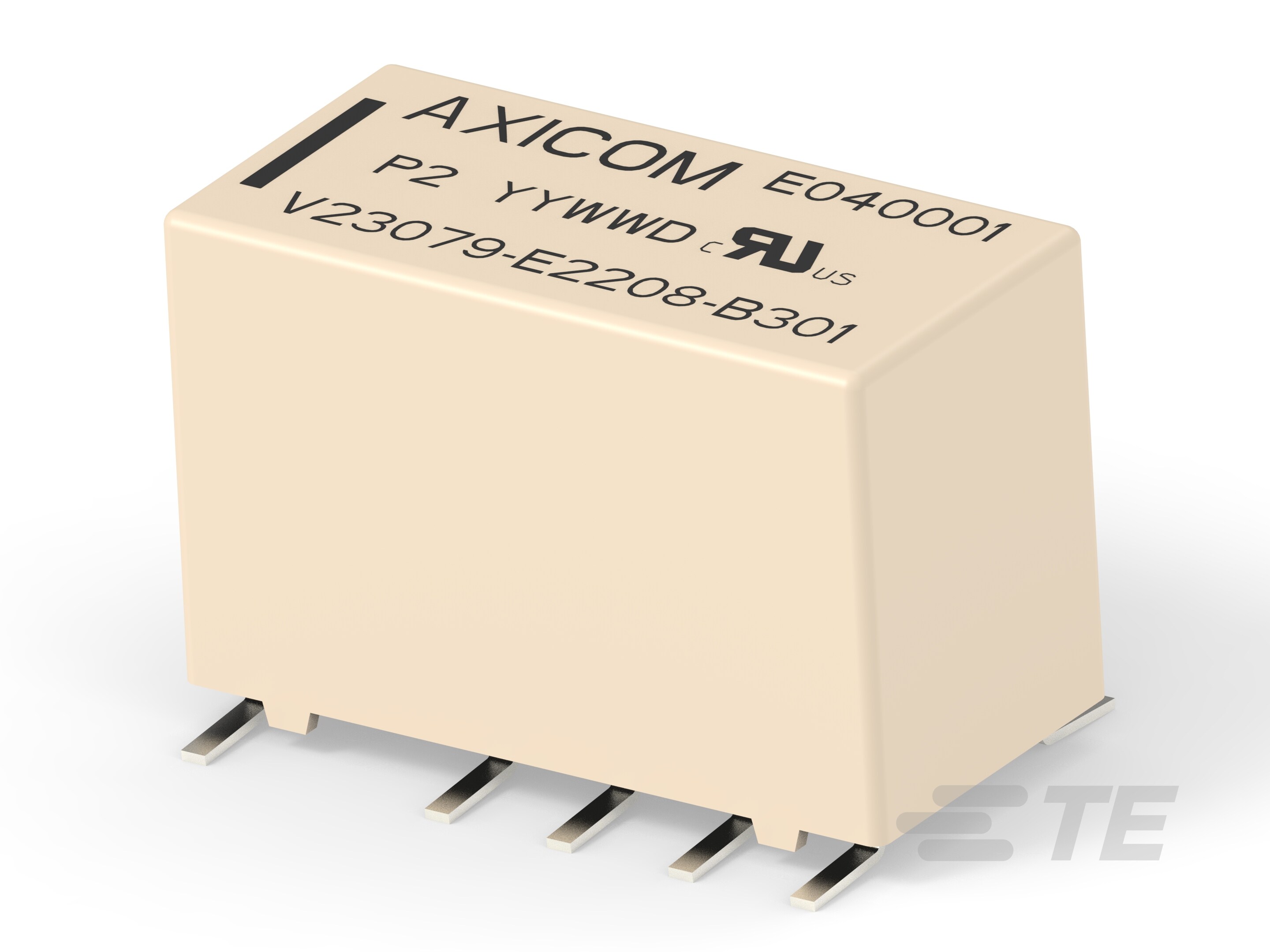

 TE Connectivity AMP Connectors | Gull Wing | 250 VAC | Silver Nickel (AgNi) | Surface Mount | 2.25 VDC | 4 ms | 2 A | Non Latching | 0.3 VDC | DPDT (2 Form C) | 4 ms | General Purpose | 66.7 mA | 85 °C | -40 C | 45 Ohms | 500 VA | |

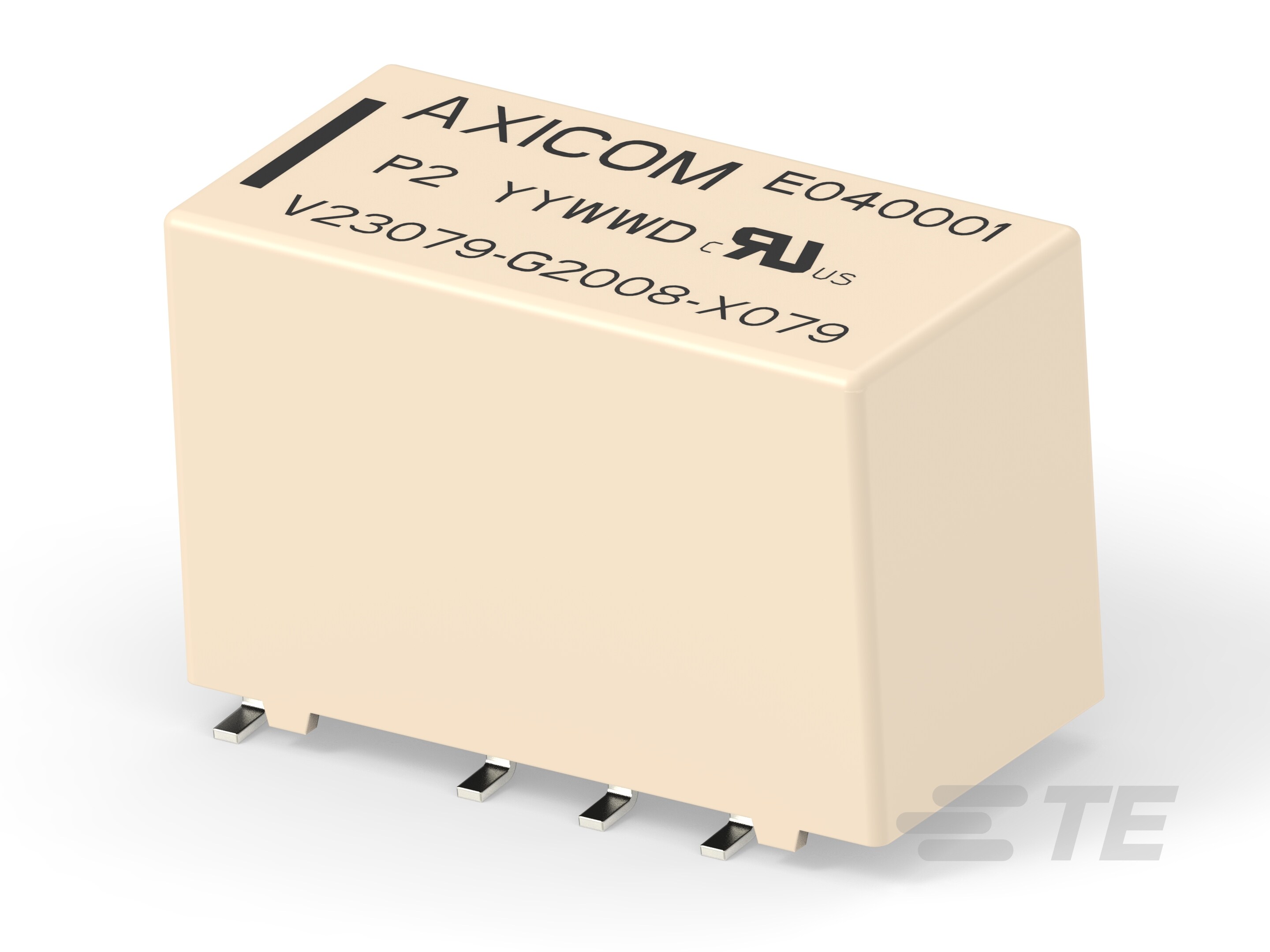

 TE Connectivity AMP Connectors | Gull Wing | 220 VDC 250 VAC | Gold (Au) Silver Nickel (AgNi) | Surface Mount | 6.75 VDC | 4 ms | 2 A | Non Latching | 0.9 VDC | DPDT (2 Form C) | 9 VDC | 4 ms | General Purpose | 15.6 mA | 85 °C | -40 C | 440 W 500 VA | |

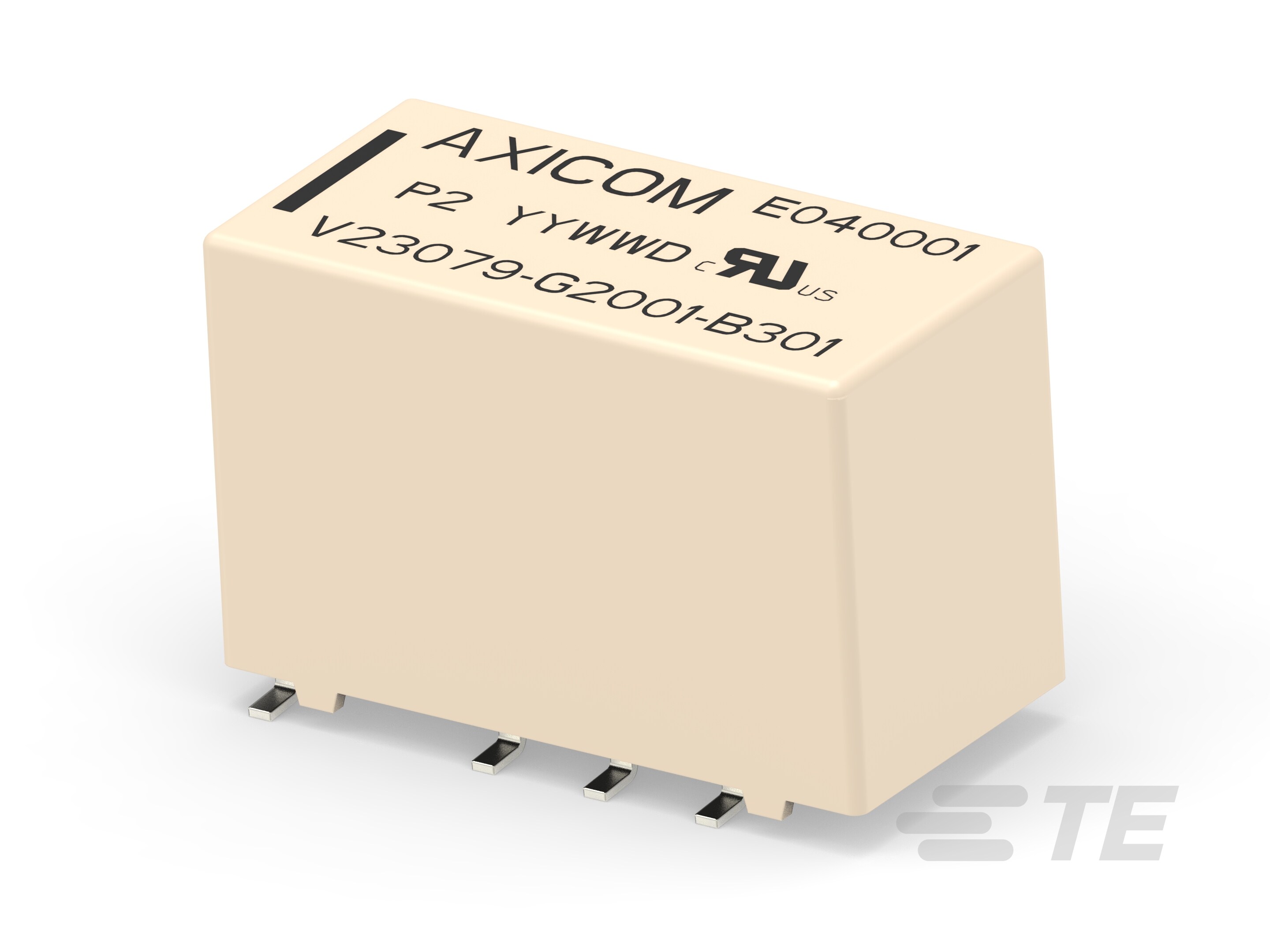

 TE Connectivity AMP Connectors | Gull Wing | 220 VDC 250 VAC | Gold (Au) Silver Nickel (AgNi) | Surface Mount | 3.75 VDC | 4 ms | 2 A | Non Latching | 0.5 VDC | DPDT (2 Form C) | 5 VDC | 4 ms | General Purpose | 28 mA | 85 °C | -40 C | 440 W 500 VA | |
 TE Connectivity AMP Connectors | Gull Wing | 220 VDC 250 VAC | Gold (Au) Silver Nickel (AgNi) | Surface Mount | 2.25 VDC | 4 ms | 2 A | Dual Coil Latching | DPDT (2 Form C) | 4 ms | General Purpose | 46.7 mA | 85 °C | -40 C | 64 Ohms | 440 W 500 VA | ||
TE Connectivity AMP Connectors | Gull Wing | 220 VDC 250 VAC | Gold (Au) Silver Nickel (AgNi) | Surface Mount | 3.38 VDC | 4 ms | 2 A | Non Latching | 0.45 VDC | DPDT (2 Form C) | 4.5 VDC | 4 ms | General Purpose | 31.1 mA | 85 °C | -40 C | 440 W 500 VA | |
 TE Connectivity AMP Connectors | ||||||||||||||||||
 TE Connectivity AMP Connectors | Gull Wing | 220 VDC 250 VAC | Gold (Au) Silver Nickel (AgNi) | Surface Mount | 3 VDC | 4 ms | 2 A | Non Latching | 0.4 VDC | DPDT (2 Form C) | 4 VDC | 4 ms | General Purpose | 35 mA | 85 °C | -40 C | 114 Ohms | 440 W 500 VA |

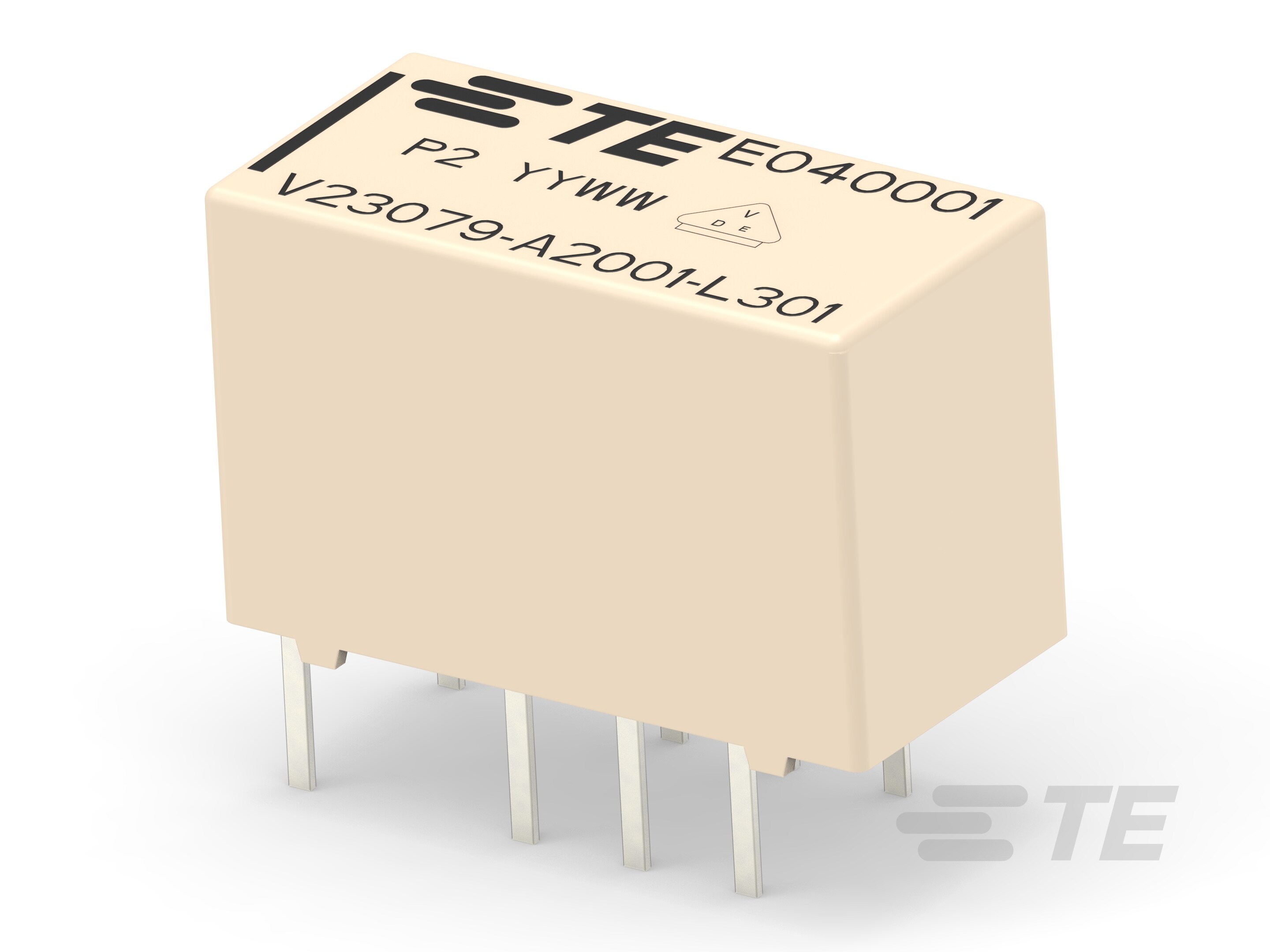

 TE Connectivity AMP Connectors | PC Pin | 220 VDC 250 VAC | Gold (Au) Silver Nickel (AgNi) | Through Hole | 3.38 VDC | 4 ms | 2 A | Non Latching | 0.45 VDC | DPDT (2 Form C) | 4.5 VDC | 4 ms | General Purpose | 31.1 mA | 85 °C | -40 C | 145 Ohms | 440 W 500 VA |
 TE Connectivity AMP Connectors | Gull Wing | 220 VDC 250 VAC | Gold (Au) Silver Nickel (AgNi) | Surface Mount | 3.38 VDC | 4 ms | 2 A | Non Latching | 0.45 VDC | DPDT (2 Form C) | 4.5 VDC | 4 ms | General Purpose | 31.1 mA | 85 °C | -40 C | 145 Ohms | 440 W 500 VA |
