RWS150 Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 105 W, 5 V, 21 A

Part	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Applications	Type	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Voltage - Output 1	Number of Outputs	Power (Watts)	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Efficiency

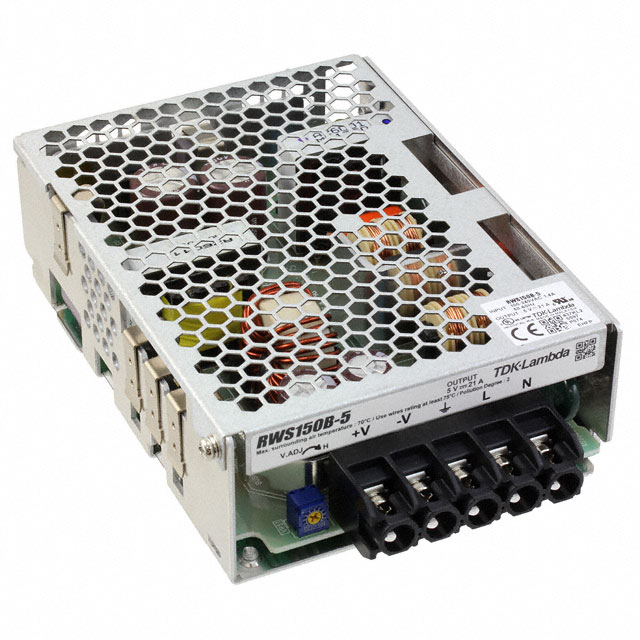

TDK Corporation RWS150B-5	265 VAC	85 VAC	21 A	ITE (Commercial)	Enclosed	Adjustable Output DC Input Capable Universal Input	3.7 in	41 mm	1.61 "	5.04 "	128 mm	94 mm	CE	5 V	1	150 W	3000 V	70 °C	-20 °C	Chassis Mount	79 %
TDK Corporation RWS150B-12	265 VAC	85 VAC	13 A	ITE (Commercial)	Enclosed	Adjustable Output DC Input Capable Universal Input	3.7 in	41 mm	1.61 "	5.04 "	128 mm	94 mm	CE	12 V	1	150 W	3000 V	70 °C	-20 °C	Chassis Mount	87 %
TDK Corporation RWS150B-12/CO2	265 VAC	85 VAC	13 A	ITE (Commercial)	Conformal Coated Enclosed	Adjustable Output DC Input Capable Universal Input	3.7 in	41 mm	1.61 "	5.04 "	128 mm	94 mm	CE	12 V	1	150 W	3000 V	70 °C	-20 °C	Chassis Mount	87 %
TDK Corporation RWS150B-48/CO2	265 VAC	85 VAC	3.3 A	ITE (Commercial)	Conformal Coated Enclosed	Adjustable Output DC Input Capable Universal Input	3.7 in	41 mm	1.61 "	5.04 "	128 mm	94 mm	CE	48 V	1	150 W	3000 V	70 °C	-20 °C	Chassis Mount	89 %
TDK Corporation RWS150B-24	265 VAC	85 VAC		ITE (Commercial)	Enclosed	Adjustable Output DC Input Capable Universal Input	3.7 in	41 mm	1.61 "	5.04 "	128 mm	94 mm	CE	24 V	1	150 W	3000 V	70 °C	-20 °C	Chassis Mount	89 %
