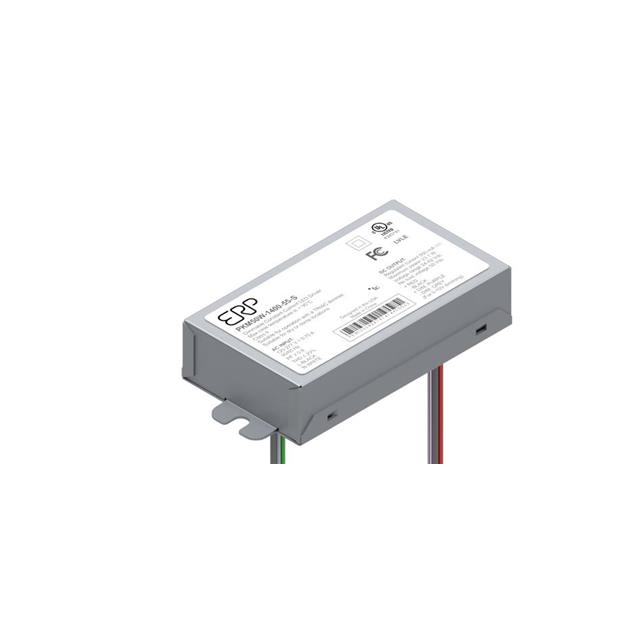

PKM50W Series
Manufacturer: ERP Power, LLC
Beta
⌘K
120 & 277 VAC, 90% EFFICIENCY, R
| Part | Mounting Type | Voltage - Input (Max) [Max] | Dimming | Voltage - Output [Max] | Voltage - Output [Min] | Efficiency | Features | Current - Output (Max) [Max] | Number of Outputs | Topology | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Ratings | Voltage - Input (Min) [Min] | Type | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Approval Agency | Voltage - Output | Voltage - Isolation | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ERP Power, LLC | Chassis Mount | 277 VAC | Analog | 55 V | 10 V | 90 % | OCP OTP SCP | 1.4 A | 1 | AC DC Converter | 1 in | 106.4 mm | 4.19 in | 60.2 mm | 25.4 mm | 2.37 in | IP20 NEMA 410 | 120 VAC | Constant Current | Wire Leads | -20 ░C | 50 °C | 50 W | cUL UL | |||
ERP Power, LLC | Chassis Mount | 277 VAC | Analog | 55 V | 10 V | 90 % | OCP OTP SCP | 1.4 A | 1 | AC DC Converter | 1 in | 106.4 mm | 4.19 in | 60.2 mm | 25.4 mm | 2.37 in | IP20 NEMA 410 | 120 VAC | Constant Current | Terminal Block | -20 ░C | 50 °C | 50 W | cUL UL | |||
 ERP Power, LLC | 305 VAC | Analog | 90 % | OCP OTP SCP | 1.4 A | 1 | AC DC Converter | 1 in | 106.4 mm | 4.19 in | 60.2 mm | 25.4 mm | 2.37 in | IP20 NEMA 410 | 90 VAC | Constant Current | Wire Leads | -20 ░C | 50 °C | 50 W | cUL UL | 49.5 V | 2200 V | 60950-1 UL 8750 |
