EZA11K Series

Catalog

FRONT END - RACK MOUNT DC/DC CONVERTER, ITE, 11 KW, 1 OUTPUT, 240 V, 45.8 A

Part	Current - Output (Max)	Mounting Type	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Voltage - Input (Min) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Approval Agency	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input (Max) [Max]	Voltage - Input (Max) [Min]	Number of Outputs

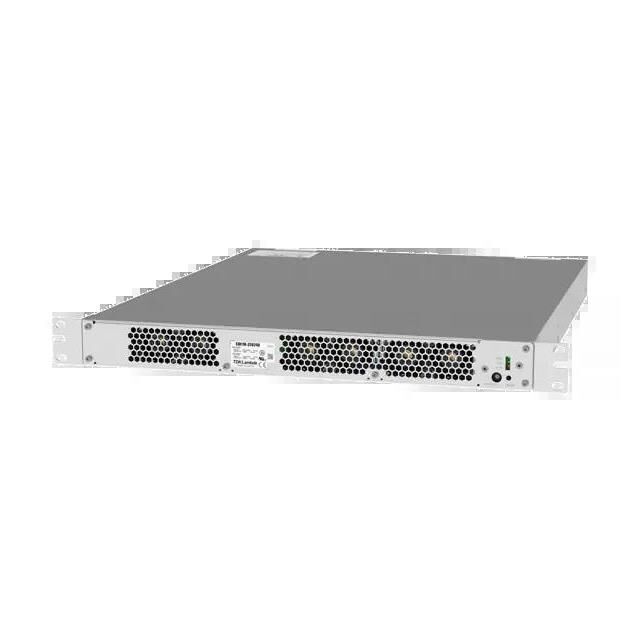

TDK Corporation EZA11K-320240	34.4 A 45.8 A	Rack Mount	95 %	1.72 in	16.65 in	15.75 in	422.8 mm	43.6 mm	400 mm	2200 V	240 V	150 V	11000 W	240 V	320 V	CE	Enclosed Bidirectional	50 °C	-10 °C	ITE (Commercial)	400 VDC	300 V	1
