FFSD-05 Series

Catalog

.050 X .050 C.L. FEMALE IDC ASSE

...

Part	Features	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Shielding	Pitch - Cable [x]	Pitch - Cable	Number of Positions	Number of Rows	Length [x]	Length [x]	Length [x]	Contact Finish	Connector Type	Cable Termination	Length	Length	Length	Length

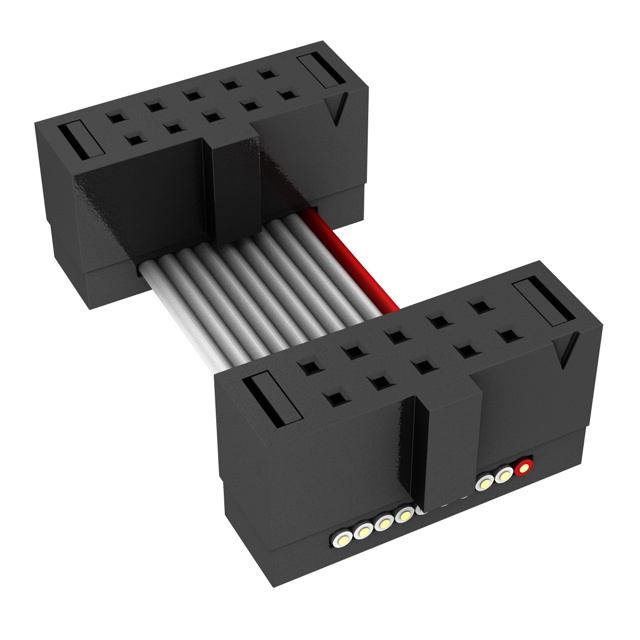

Samtec Inc. FFSD-05-D-04.75-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	4.75 "	0.396 '	120.65 mm	Gold	Socket to Socket	IDC

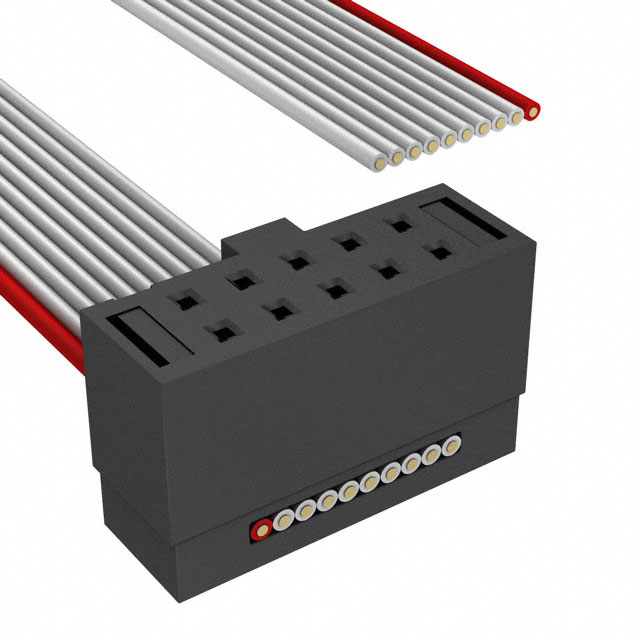

Samtec Inc. FFSD-05-S-07.80-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Cable	IDC	0.65 '	7.8 "	198.12 mm
Samtec Inc. FFSD-05-D-15.70-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2		1.31 ft	398.78 mm	Gold	Socket to Socket	IDC
Samtec Inc. FFSD-05-D-11.05-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	11.05 "	0.921 '	280.67 mm	Gold	Socket to Socket	IDC
Samtec Inc. FFSD-05-D-66.00-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Socket	IDC			1.68 m	5.5 ft
Samtec Inc. FFSD-05-D-06.25-01-N-R	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	6.25 in	0.521 ft	158.75 mm	Gold	Socket to Socket Reversed	IDC
Samtec Inc. FFSD-05-D-04.25-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	4.25 "	0.354 ft	107.95 mm	Gold	Socket to Socket	IDC

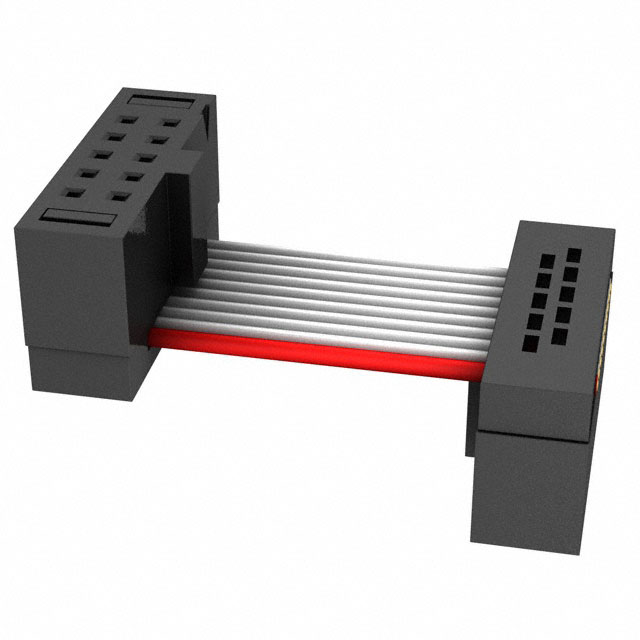

Samtec Inc. FFSD-05-D-10.00-01-N-RW-R	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Socket Reversed	IDC		10 in	254 mm	0.833 ft
Samtec Inc. FFSD-05-D-03.00-01-N-RW-R	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Socket Reversed	IDC		3 "	76.2 mm	0.25 ft
Samtec Inc. FFSD-05-S-02.40-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Cable	IDC		2.4 "	60.96 mm	0.2 ft
