CT05 Series

Catalog

SWITCH REED SPST-NO 250MA 100V

Part	Mounting Type	Size - Body [x]	Size - Body [z]	Size - Body [x]	Size - Body [y]	Size - Body [z]	Size - Body [y]	Length - Overall [x]	Length - Overall [x]	Power - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Height Above Board [z]	Height Above Board [z]	Current - Carry	Operate Range [Max]	Operate Range [Min]	Voltage - Switching DC	Current - Switching	Circuit	Voltage - Switching AC	Type	Release Range [Max]	Release Range [Min]

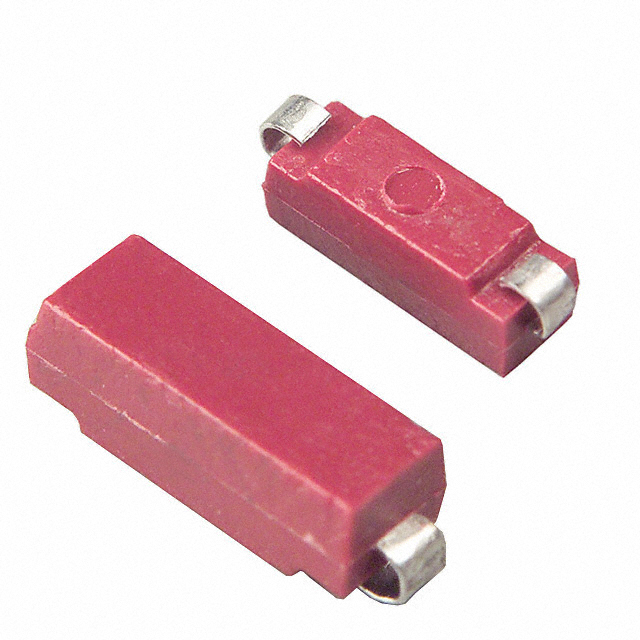

COTO TECHNOLOGY CT05-1535-J1	Surface Mount	0.252 "	0.091 "	6.4 mm	2.31 mm	2.31 mm	0.091 "	7.57 mm	0.298 in	5 W	125 °C	-40 C	J Lead	0.094 in	2.4 mm	500 mA	35 AT	15 AT	140 V	250 mA 350 mA	SPST-NO	100 V	Molded Body Reed
COTO TECHNOLOGY CT05-3050-J1	Surface Mount	0.252 "	0.091 "	6.4 mm	2.31 mm	2.31 mm	0.091 "	7.57 mm	0.298 in	5 W	125 °C	-40 C	J Lead	0.094 in	2.4 mm	500 mA	50 AT	30	140 V	250 mA 350 mA	SPST-NO	100 V	Molded Body Reed
COTO TECHNOLOGY CT05-2550-J1	Surface Mount	0.252 "	0.091 "	6.4 mm	2.31 mm	2.31 mm	0.091 "	7.57 mm	0.298 in	5 W	125 °C	-40 C	J Lead	0.094 in	2.4 mm	500 mA	50 AT	25	140 V	250 mA 350 mA	SPST-NO	100 V	Molded Body Reed	45 AT	5

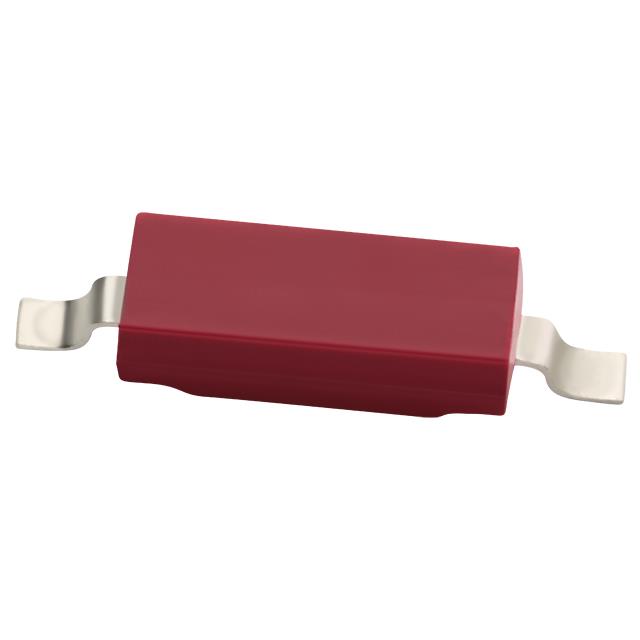

COTO TECHNOLOGY CT05-3050-G1	Surface Mount	0.252 "	0.091 "	6.4 mm	2.31 mm	2.31 mm	0.091 "	9.55 mm	0.376 in	5 W	125 °C	-40 C	Gull Wing	0.094 in	2.4 mm	500 mA	50 AT	30	140 V	250 mA 350 mA	SPST-NO	100 V	Molded Body Reed
COTO TECHNOLOGY CT05-1535-G1	Surface Mount	0.252 "	0.091 "	6.4 mm	2.31 mm	2.31 mm	0.091 "	9.55 mm	0.376 in	5 W	125 °C	-40 C	Gull Wing	0.094 in	2.4 mm	500 mA	35 AT	15 AT	140 V	250 mA 350 mA	SPST-NO	100 V	Molded Body Reed
COTO TECHNOLOGY CT05-2550-G1	Surface Mount	0.252 "	0.091 "	6.4 mm	2.31 mm	2.31 mm	0.091 "	9.55 mm	0.376 in	5 W	125 °C	-40 C	Gull Wing	0.094 in	2.4 mm	500 mA	50 AT	25	140 V	250 mA 350 mA	SPST-NO	100 V	Molded Body Reed	45 AT	5
