ADP7142 Series

40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Part	Control Features	Current - Supply (Max)	Mounting Type	Output Type	Voltage - Output (Min/Fixed)	Current - Output	Current - Quiescent (Iq)	Voltage Dropout (Max)	Voltage - Input (Max)	PSRR (Minimum)	PSRR (Maximum)	Package Length	Package Name	Package Features	Package Width	Protection Features	Number of Regulators	Output Configuration	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Voltage - Output (Max)	Utilized IC / Part	Regulator Type	Voltage - Output	Contents	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Voltage - Input (Minimum)	Voltage - Input (Maximum)
Analog Devices Inc./Maxim Integrated ADP7142ARDZ-3.3	Enable Soft Start	320 µA	Surface Mount	Fixed	3.3 V	200 mA	140 µA	0.42 V	40 V	50 dB	88 dB	0.154 in	8-SOIC 8-SOIC-EP	Exposed Pad	3.9 mm	Over Temperature Short Circuit	1	Positive	125 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADP7142AUJZ-3.3-R7	Enable	320 µA	Surface Mount	Fixed	3.3 V	200 mA	140 µA	0.42 V	40 V				TSOT-23-5			Over Temperature Short Circuit	1	Positive	125 °C	-40 °C	SOT-23-5 Thin TSOT-23-5
Analog Devices Inc./Maxim Integrated ADP7142ACPZN-R7	Enable Soft Start	320 µA	Surface Mount	Adjustable	1.2 V	200 mA	140 µA	0.42 V	40 V	50 dB	88 dB	2 mm	6-LFCSP-UD		2 mm	Over Temperature Short Circuit	1	Positive	125 °C	-40 °C	6-UDFN Exposed Pad CSP	39.58 V
Analog Devices Inc./Maxim Integrated ADP7142AUJZ-5.0-R7	Enable	320 µA	Surface Mount	Fixed	5 V	200 mA	140 µA	0.42 V	40 V	50 dB	88 dB		TSOT-23-5			Over Temperature Short Circuit	1	Positive	125 °C	-40 °C	SOT-23-5 Thin TSOT-23-5
Analog Devices Inc./Maxim Integrated ADP7142AUJZ-R7	Enable	320 µA	Surface Mount	Adjustable	1.2 V	200 mA	140 µA	0.42 V	40 V	50 dB	88 dB		TSOT-23-5			Over Temperature Short Circuit	1	Positive	125 °C	-40 °C	SOT-23-5 Thin TSOT-23-5	39.58 V
Analog Devices Inc./Maxim Integrated ADP7142ACPZN1.8-R7	Enable Soft Start	320 µA	Surface Mount	Fixed	1.8 V	200 mA	140 µA		40 V			2 mm	6-LFCSP-UD		2 mm	Over Temperature Short Circuit	1	Positive	125 °C	-40 °C	6-UDFN Exposed Pad CSP

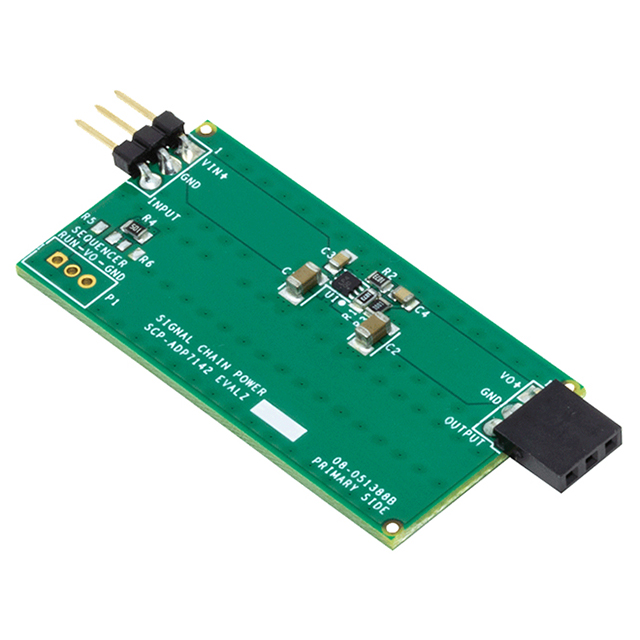

Analog Devices Inc./Maxim Integrated SCP-ADP7142-EVALZ						200 mA																	ADP7142	Positive Adjustable	39.58 V	Board	1	Single	1	2.7 V	40 V
Analog Devices Inc./Maxim Integrated ADP7142ARDZ-5.0-R7	Enable Soft Start	320 µA	Surface Mount	Fixed	5 V	200 mA	140 µA	0.42 V	40 V	50 dB	88 dB	0.154 in	8-SOIC 8-SOIC-EP	Exposed Pad	3.9 mm	Over Temperature Short Circuit	1	Positive	125 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADP7142ARDZ	Enable Soft Start	320 µA	Surface Mount	Adjustable	1.2 V	200 mA	140 µA	0.42 V	40 V	50 dB	88 dB	0.154 in	8-SOIC 8-SOIC-EP	Exposed Pad	3.9 mm	Over Temperature Short Circuit	1	Positive	125 °C	-40 °C		39.58 V
Analog Devices Inc./Maxim Integrated ADP7142AUJZ-1.8-R7	Enable	320 µA	Surface Mount	Fixed	1.8 V	200 mA	140 µA		40 V				TSOT-23-5			Over Temperature Short Circuit	1	Positive	125 °C	-40 °C	SOT-23-5 Thin TSOT-23-5

Catalog

40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Description

The ADP7142 is a CMOS, low dropout (LDO) linear regulator that operates from 2.7 V to 40 V and provides up to 200 mA of output current. This high input voltage LDO is ideal for the regulation of high performance analog and mixed signal circuits operating from 39 V down to 1.2 V rails. Using an advanced proprietary architecture, the device provides high power supply rejection, low noise, and achieves excellent line and load transient response with a small 2.2 μF ceramic output capacitor. The ADP7142 regulator output noise is 11 μV rms independent of the output voltage for the fixed options of 5 V or less.The ADP7142 is available in 15 fixed output voltage options. The following voltages are available from stock: 1.2 V (adjustable), 1.8 V, 2.5 V, 3.3 V, 3.8 V, and 5.0 V. Additional voltages available by special order are 1.5 V, 1.85 V, 2.0 V, 2.2 V, 2.75 V, 2.8 V, 2.85 V, 3.0 V, 4.2 V, and 4.6 V.Each fixed output voltage can be adjusted above the initial set point with an external feedback divider. This allows the ADP7142 to provide an output voltage from 1.2 V to VIN− VDOwith high PSRR and low noise.User programmable soft start with an external capacitor is available in the LFCSP and SOIC packages.The ADP7142 is available in a 6-lead, 2 mm × 2 mm LFCSP making it not only a very compact solution, but it also provides excellent thermal performance for applications requiring up to 200 mA of output current in a small, low profile footprint. The ADP7142 is also available in a 5-lead TSOT and an 8-lead SOIC.ApplicationsRegulation to noise sensitive applicationsADC, DAC circuits, precision amplifiers, power for VCO VTUNEcontrolCommunications and infrastructureMedical and healthcareIndustrial and instrumentationAutomotive
