TMA-8MS Series
Manufacturer: Amphenol CDI
Beta
⌘K
MW ADAPTER 1.85(M) TO 2.4(M)
| Part | Convert To (Adapter End) [custom] | Convert From (Adapter End) | Convert From (Adapter End) | Adapter Type | Center Gender | Impedance | Frequency - Max [Max] | Mounting Type | Style | Adapter Series [Max] | Adapter Series [Min] | Conversion Type | Body Material | Center Contact Material | Convert To (Adapter End) | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

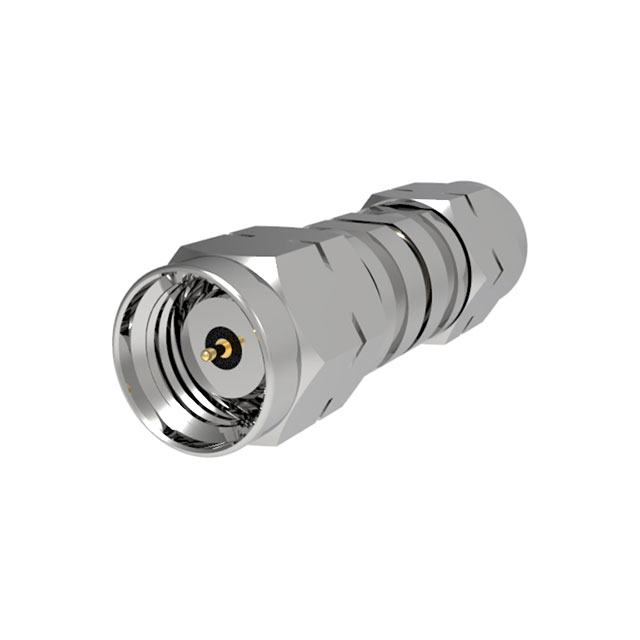

 Amphenol CDI | 2.4 mm | Plug Male Pin | 1.85 mm | Plug to Plug | Male to Male | 50 Ohms | 50 GHz | Free Hanging (In-Line) | Straight | 2.4 mm | 1.85 mm | Between Series | ||||
Amphenol CDI | 2.4 mm | Plug Male Pin | 1.85 mm | Plug to Plug | Male to Male | 50 Ohms | 50 GHz | Free Hanging (In-Line) | Straight | 2.4 mm | 1.85 mm | Between Series | Stainless Steel | Beryllium Copper | ||
Amphenol CDI | Plug Male Pin | 1.85 mm | Plug to Plug | Male to Male | 50 Ohms | 40 GHz | Free Hanging (In-Line) | Straight | 2.92 mm | 1.85 mm | Between Series | Stainless Steel | Beryllium Copper | 2.92mm (OS-2.9) Plug Male Pin | ||

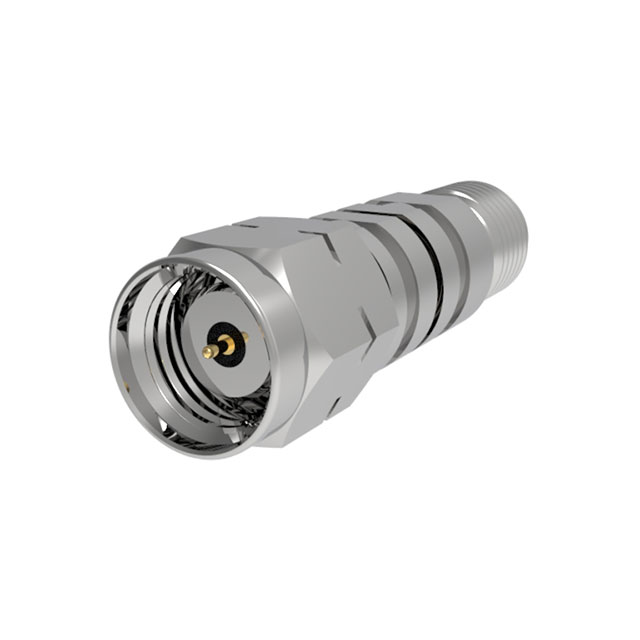

 Amphenol CDI | Plug Male Pin | 1.85 mm | Plug to Jack | 50 Ohms | 26.5 GHz | Free Hanging (In-Line) | Straight | 3.5 mm | 1.85 mm | Between Series | Stainless Steel | Beryllium Copper | 3.5mm Jack Female Socket | |||
Amphenol CDI | Plug Male Pin | 1.85 mm | Plug to Jack | 50 Ohms | 26.5 GHz | Free Hanging (In-Line) | Straight | 3.5 mm | 1.85 mm | Between Series | 3.5mm Jack Female Socket | |||||
Amphenol CDI | Plug Male Pin | 1.85 mm | Plug to Jack | 50 Ohms | 40 GHz | Free Hanging (In-Line) | Straight | 2.92 mm | 1.85 mm | Between Series | Jack Female Socket | 2.92 mm | ||||
Amphenol CDI | Plug Male Pin | 1.85 mm | Plug to Jack | 50 Ohms | 50 GHz | Free Hanging (In-Line) | Straight | 2.4 mm | 1.85 mm | Between Series | Stainless Steel | Beryllium Copper | (APC-2.4 OS-50) Jack Female Socket | 2.4 mm | ||
 Amphenol CDI | Plug Male Pin | 1.85 mm | Plug to Plug | Male to Male | 50 Ohms | 26.5 GHz | Free Hanging (In-Line) | Straight | 3.5 mm | 1.85 mm | Between Series | Stainless Steel | Beryllium Copper | 3.5mm Plug Male Pin | ||
Amphenol CDI | Plug Male Pin | 1.85 mm | Plug to Jack | 50 Ohms | 40 GHz | Free Hanging (In-Line) | Straight | 2.92 mm | 1.85 mm | Between Series | Stainless Steel | Beryllium Copper | Jack Female Socket | 2.92 mm | ||
 Amphenol CDI | Plug Male Pin | 1.85 mm | Plug to Jack | 50 Ohms | 65 GHz | Free Hanging (In-Line) | Straight | 1.85 mm | 1.85 mm | Same Series | 1.85mm Jack Female Socket |
