BB-MDR Series

Catalog

AC/DC DIN RAIL SUPPLY 48V 60W

Part	Approval Agency	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Power (Watts)	Applications	Input Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Output 1	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Features	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Standard Number
Advantech Corporation BB-MDR-60-48	CB CE cULus TUV	264 VAC	85 VAC	60 W	Hazardous Locations Industrial ITE (Commercial)	AC	40 mm	90 mm	3.54 "	3.94 in	100 mm	1.57 "	87 %	3000 V	1.25 A	48 V	1	70 °C	-20 °C	Adjustable Output Universal Input

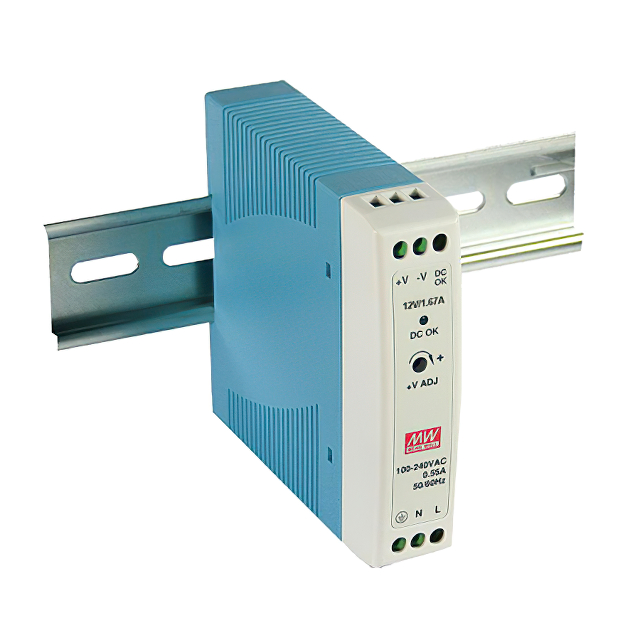

Advantech Corporation BB-MDR-20-12	CB CE cULus TUV	264 VAC	85 VAC	20 W	ITE (Commercial)	AC	22.5 mm	90 mm	3.54 "	3.94 in	100 mm	0.89 in	80 %	3000 V	1.67 A	12 V	1	70 °C	-20 °C	Adjustable Output Universal Input
Advantech Corporation BB-MDR-10-12	CB CE cULus TUVgs	264 VAC	85 VAC	10 W	Industrial ITE (Commercial)	AC or DC	22.5 mm	90 mm	3.54 "	3.94 in	100 mm	0.89 in	81 %	3000 V	840 mA	12 V	1	70 °C	-20 ░C	Universal Input	370 V	120 V	508 62368-1
Advantech Corporation BB-MDR-60-24	CB CE cULus TUVgs	264 VAC	85 VAC	60 W	ITE (Commercial)	AC	40 mm	90 mm	3.54 "	3.94 in	100 mm	1.57 "	88 %	3000 V	2.5 A	24 V	1	70 °C	-20 °C	Adjustable Output Universal Input
Advantech Corporation BB-MDR-40-24	CB CE cULus TUVgs	264 VAC	85 VAC	40 W	ITE (Commercial)	AC	40 mm	90 mm	3.54 "	3.94 in	100 mm	1.57 "	88 %	3000 V	1.7 A	24 V	1	70 °C	-20 °C	Adjustable Output Universal Input
Advantech Corporation BB-MDR-100-24	CB CE cULus TUVgs	264 VAC	85 VAC	100 W	ITE (Commercial)	AC	55 mm	90 mm	3.54 "	3.94 in	100 mm	2.17 "	88 %	3000 V	2 A	24 V	1	60 °C	-10 °C	Adjustable Output Universal Input
Advantech Corporation BB-MDR-20-12	CB CE cULus TUV	264 VAC	85 VAC	20 W	ITE (Commercial)	AC	22.5 mm	90 mm	3.54 "	3.94 in	100 mm	0.89 in	80 %	3000 V	1.67 A	12 V	1	70 °C	-20 °C	Adjustable Output Universal Input
Advantech Corporation BB-MDR-100-24	CB CE cULus TUVgs	264 VAC	85 VAC	100 W	ITE (Commercial)	AC	55 mm	90 mm	3.54 "	3.94 in	100 mm	2.17 "	88 %	3000 V	2 A	24 V	1	60 °C	-10 °C	Adjustable Output Universal Input
Advantech Corporation BB-MDR-10-24	CB CE cULus TUV	264 VAC	85 VAC	10 W	Industrial ITE (Commercial)	AC or DC	22.5 mm	90 mm	3.54 "	3.94 in	100 mm	0.89 in	84 %	3000 V	420 mA	24 V	1	70 °C	-20 °C	Universal Input	370 V	120 V	508 62368-1
Advantech Corporation BB-MDR-60-48	CB CE cULus TUV	264 VAC	85 VAC	60 W	Hazardous Locations Industrial ITE (Commercial)	AC	40 mm	90 mm	3.54 "	3.94 in	100 mm	1.57 "	87 %	3000 V	1.25 A	48 V	1	70 °C	-20 °C	Adjustable Output Universal Input
