LM8391G-LB Series

Ground Sense Comparators

Catalog

Ground Sense Comparators

Part	Package / Case	Mounting Type	Number of Elements	Supplier Device Package	Current - Input Bias (Max) [Max]	Current - Output (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Max) [Max]	Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Input Offset (Max)

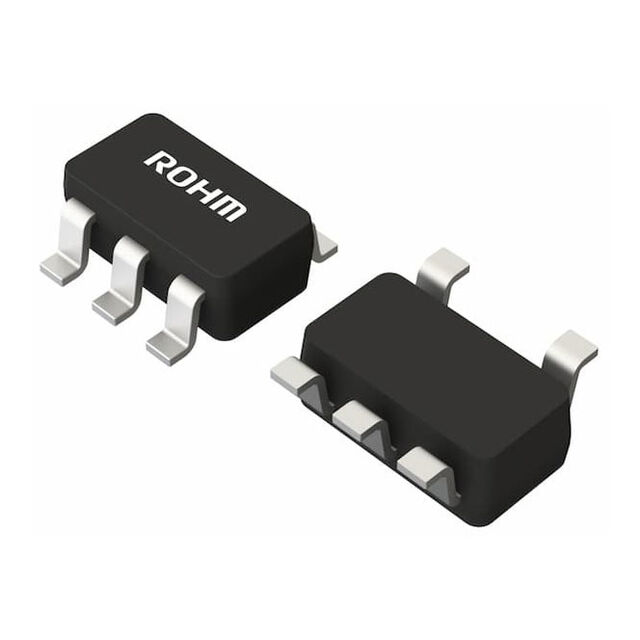

Rohm Semiconductor LM8391G-LBTR	SC-74A SOT-753	Surface Mount	1	5-SSOP	0.25 µA	16 mA	125 °C	-40 °C	500 µA	General Purpose	18 V 36 V	3 V	±1.5V	5 mV

Catalog

Ground Sense Comparators

Key Features

• Long Time Support Product for Industrial Applications., Operable from Almost GND Level for Input, Single or Dual Power Supply Operation, Standard Comparator Pin-assignments, Low Supply Current, Wide Operating Supply Voltage Range, Wide Operating Temperature Range

Description

This is the product guarantees long time support in industrial market. And it is suitable for usage of industrial applications. LM8391G-LB is high-gain and ground sense input comparator. An operating voltage range is wide with 3V to 36V. This operational amplifier is the most suitable for industrial requirements such as current-monitor, battery-monitor and so on because it has features of low supply current.
