LHA-08 Series
Manufacturer: Adam Tech
Beta
⌘K

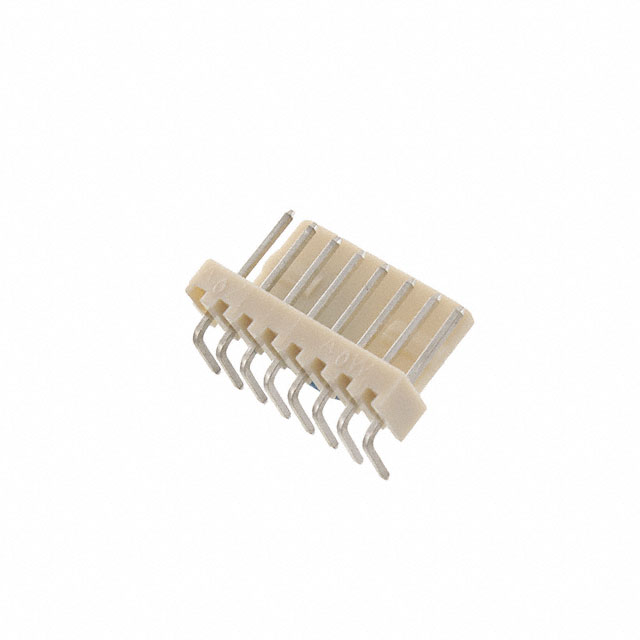

CONN HEADER R/A 8POS 2.54MM
| Part | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Rows | Contact Finish - Post | Contact Material | Insulation Color | Contact Type | Voltage Rating | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Insulation Material | Insulation Height [z] | Insulation Height [z] | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Shrouding | Contact Shape | Material Flammability Rating | Fastening Type | Number of Positions | Connector Type | Contact Length - Post [x] | Contact Length - Post | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Solder | 85 °C | -25 °C | Right Angle Through Hole | 1 | Tin | Brass | White | Male Pin | 250 VAC | 0.1 " | 2.54 mm | 3 A | Nylon 6/6 Polyamide (PA66) | 0.228 " | 5.8 mm | 0.293 in | 7.45 mm | All | Shrouded - 1 Wall | Square | UL94 V-2 | Friction Lock | 8 | Header | 0.134 " | 3.4 mm | Board to Cable/Wire |
