M50-490 Series
Manufacturer: Harwin Inc.
Beta
⌘K

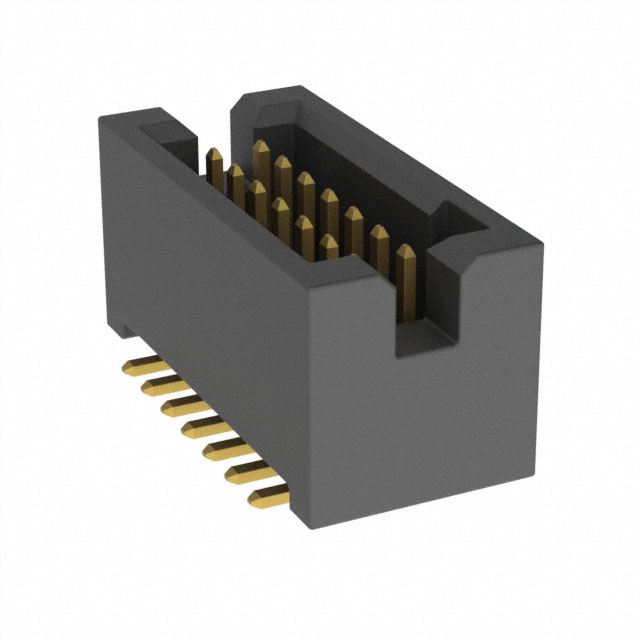

7+7 POS. MALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES
| Part | Contact Type | Number of Positions Loaded | Fastening Type | Number of Positions | Contact Shape | Insulation Material | Termination | Contact Material | Shrouding | Pitch - Mating | Pitch - Mating | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Connector Type | Insulation Height [z] | Insulation Height [z] | Number of Rows [custom] | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Mounting Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Male Pin | All | Push-Pull | 14 | Square | Liquid Crystal Polymer (LCP) | Solder | Copper Alloy | Shrouded - 4 Wall | 1.27 mm | 0.05 in | Black | -40 C | 105 ░C | Gold | Header | 5.69 mm | 0.224 in | 2 | 1 A | 0.05 in | 1.27 mm | UL94 V-0 | Surface Mount | Gold |
 Harwin Inc. | Male Pin | All | Push-Pull | 10 | Square | Liquid Crystal Polymer (LCP) | Solder | Copper Alloy | Shrouded - 4 Wall | 1.27 mm | 0.05 in | Black | -40 C | 105 ░C | Gold | Header | 5.69 mm | 0.224 in | 2 | 1 A | 0.05 in | 1.27 mm | UL94 V-0 | Surface Mount | Gold |
 Harwin Inc. | Male Pin | All | Push-Pull | 24 | Square | Liquid Crystal Polymer (LCP) | Solder | Copper Alloy | Shrouded - 4 Wall | 1.27 mm | 0.05 in | Black | -40 C | 105 ░C | Gold | Header | 5.69 mm | 0.224 in | 2 | 1 A | 0.05 in | 1.27 mm | UL94 V-0 | Surface Mount | Gold |
