XC5A Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

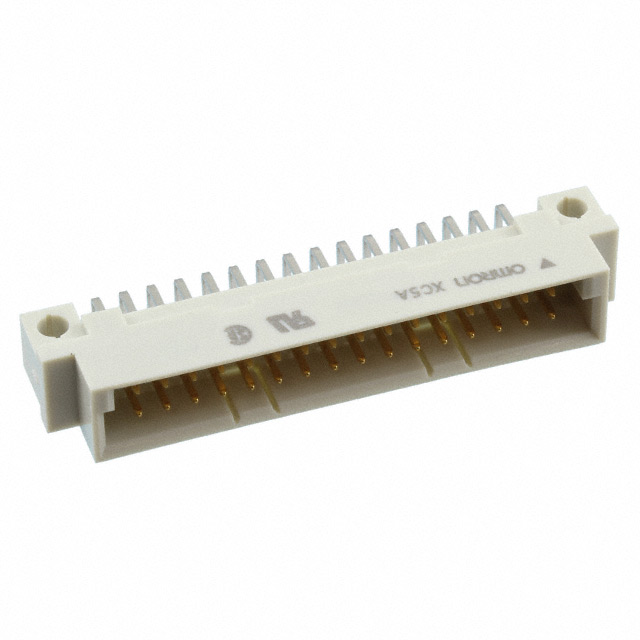

CONN DIN PLUG 32POS PCB RA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Pitch	Pitch	Style	Number of Rows [custom]	Connector Type	Number of Positions	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions Loaded
Omron Electronics Inc-EMC Div XC5A-3222-A	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2 A	Right Angle Through Hole	0.1 "	2.54 mm	B	2	Plug Male Pins
Omron Electronics Inc-EMC Div XC5A-5082-1A	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2 A	Right Angle Through Hole	0.1 "	2.54 mm	B	2	Plug Male Pins	50
Omron Electronics Inc-EMC Div XC5A-2082-1	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2 A	Right Angle Through Hole	0.1 "	2.54 mm	B	2	Plug Male Pins	20	Solder	16 µin	0.41 µm	Gold	All
Omron Electronics Inc-EMC Div XC5A-6482-1	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2 A	Right Angle Through Hole	0.1 "	2.54 mm	B	2	Plug Male Pins	64	Solder	16 µin	0.41 µm	Gold	All
Omron Electronics Inc-EMC Div XC5A-6422	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2 A	Right Angle Through Hole	0.1 "	2.54 mm	B	2	Plug Male Pins	64	Solder	16 µin	0.41 µm	Gold	All
Omron Electronics Inc-EMC Div XC5A-3082-1	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2 A	Right Angle Through Hole	0.1 "	2.54 mm	B	2	Plug Male Pins	30	Solder	16 µin	0.41 µm	Gold	All
Omron Electronics Inc-EMC Div XC5A-2042	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2 A	Right Angle Through Hole	0.1 "	2.54 mm	B	2	Plug Male Pins	20	Solder	16 µin	0.41 µm	Gold	All
Omron Electronics Inc-EMC Div XC5A-6442-1A	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2 A	Right Angle Through Hole	0.1 "	2.54 mm	B	2	Plug Male Pins	64

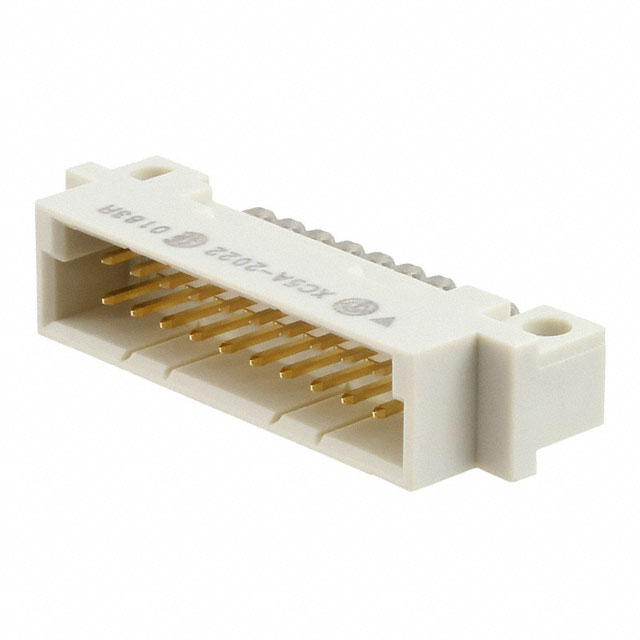

Omron Electronics Inc-EMC Div XC5A-2022	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2 A	Right Angle Through Hole	0.1 "	2.54 mm	B	2	Plug Male Pins	20	Solder	16 µin	0.41 µm	Gold	All
Omron Electronics Inc-EMC Div XC5A-3282-1A	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2 A	Right Angle Through Hole	0.1 "	2.54 mm	B	2	Plug Male Pins		Solder	16 µin	0.41 µm	Gold	All
