NPTC051 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

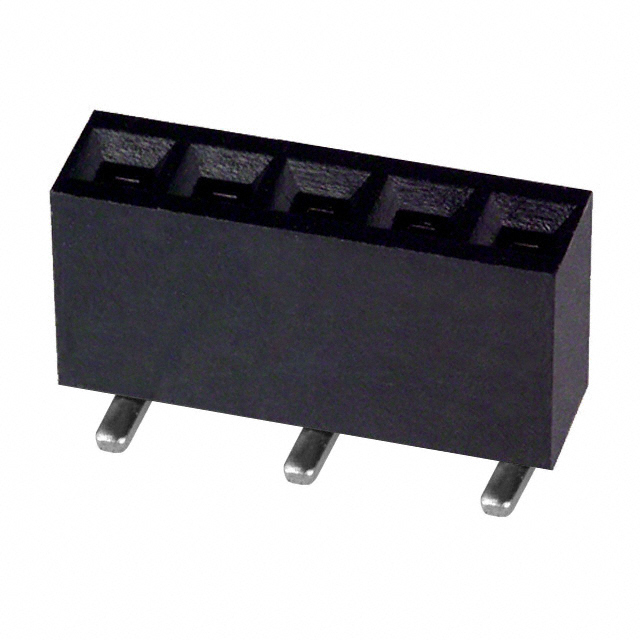

CONN HDR 5POS 0.1 TIN SMD
| Part | Contact Material | Insulation Material | Contact Shape | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Fastening Type | Voltage Rating | Termination | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Contact Type | Connector Type | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Rows | Number of Positions Loaded | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | Surface Mount | -40 C | 105 ░C | Tin | Push-Pull | 250 V | Solder | 3 A | UL94 V-0 | 5 | Female Socket | Header Top or Bottom Entry | 0.1 " | 2.54 mm | 0.28 in | 7.1 mm | 1 | All | |
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | Surface Mount | -40 C | 105 ░C | Tin | Push-Pull | 250 V | Solder | 3 A | UL94 V-0 | 5 | Female Socket | Header Top or Bottom Entry | 0.1 " | 2.54 mm | 0.28 in | 7.1 mm | 1 | All | Black |
