470077CY Series

Catalog

CABLE 7COND 19AWG CLEAR SHLD 20M

Part	Conductor Insulation	Shield Type	Length	Length	Conductor Strand [custom]	Conductor Strand [diameter]	Features	Jacket Color	Number of Conductors	Conductor Material	Wire Gauge	Cable Type	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Usage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material

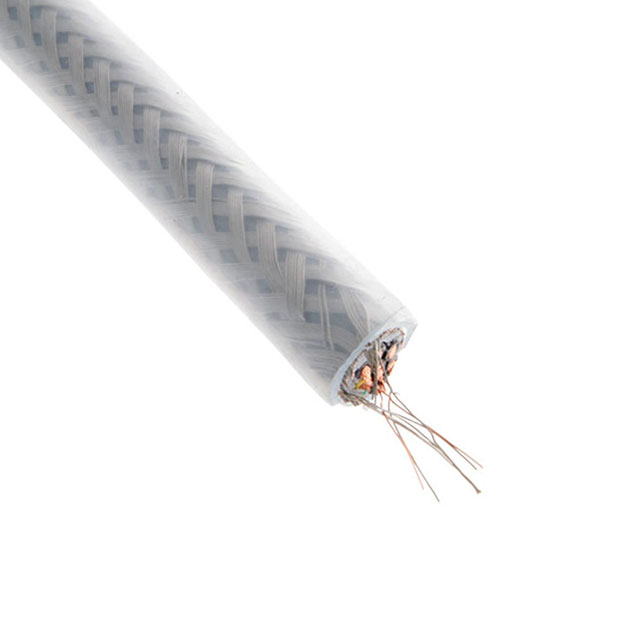

ALPHA WIRE 470077CY CL432	Poly-Vinyl Chloride (PVC)	Braid	10 m 20 m	32.81 ft 65.62 ft	30	0.007 in	Chemical Resistant Oil Resistant UV Resistant	Clear	7	Copper Bare	19 AWG	Multi-Conductor	300 VDC	0.0394 in	1.001 mm	300 m	984.3 ft	Copper Tinned	10.16 mm	0.4 in	80 %	Industrial	80 °C	-40 C	Poly-Vinyl Chloride (PVC)

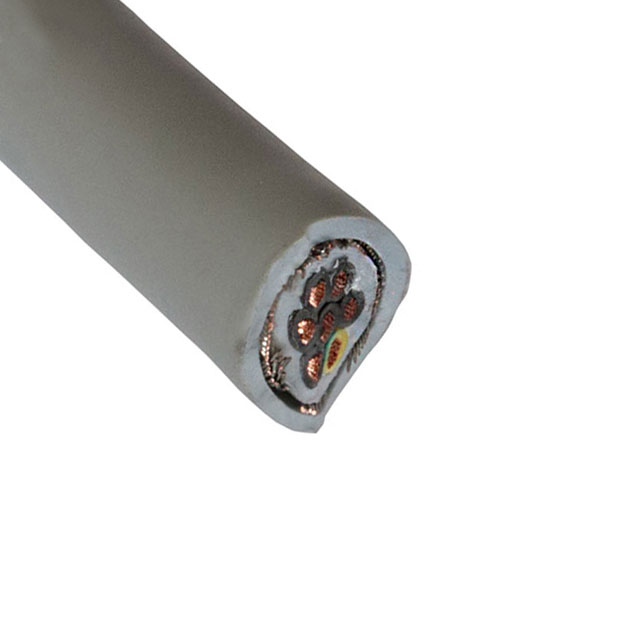

ALPHA WIRE 470077CY GE033	Poly-Vinyl Chloride (PVC)	Braid			30	0.007 in	Chemical Resistant Oil Resistant UV Resistant	Gray	7	Copper Bare	19 AWG	Multi-Conductor	300 VDC	0.0394 in	1.001 mm	100 m	328.1 ft	Copper Tinned	10.16 mm	0.4 in	80 %	Industrial	80 °C	-40 C	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 470077CY GE432	Poly-Vinyl Chloride (PVC)	Braid	1 m 10 m 20 m	3.28 ft 32.81 ft 65.62 ft	30	0.007 in	Chemical Resistant Oil Resistant UV Resistant	Gray	7	Copper Bare	19 AWG	Multi-Conductor	300 VDC	0.0394 in	1.001 mm	300 m	984.3 ft	Copper Tinned	10.16 mm	0.4 in	80 %	Industrial	80 °C	-40 C	Poly-Vinyl Chloride (PVC)
