HT-CT-50M Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONTINUOUS TUBING

Part	Shelf Life Start	Color	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Type	Spool Size [x]	Spool Size [x]	Length	Inner Diameter - Supplied [diameter]	Shrinkage Ratio
TE Connectivity AMP Connectors HT-CT-50M-1-OUT-0	Date of Manufacture	Black	-55 C	225 °C	50 m	164 ft	1	2	25.4 mm	1 in	48 Months	12.7 mm	0.5 "	0.43 mm	0.017 in	Tubing Flexible
TE Connectivity AMP Connectors HT-CT-50M-1/2-OUT-0	Date of Manufacture	Black	-55 C	225 °C			1	2	12.7 mm	0.5 "	48 Months	6.35 mm	0.25 in	0.38 mm	0.015 in	Tubing Flexible	164 '	50 m	Enter Number of Meters in Order Quantity
TE Connectivity AMP Connectors HT-CT-50M-3/16-OUT-0	Date of Manufacture	Black	-55 C	225 °C			1	2	4.75 mm	0.187 "	48 Months	2.4 mm	0.094 in	0.38 mm	0.015 in	Tubing Flexible	164 '	50 m	Enter Number of Meters in Order Quantity
TE Connectivity AMP Connectors HT-CT-50M-1/8-OUT-0	Date of Manufacture	Black	-55 C	225 °C			1	2	3.18 mm	0.125 in	48 Months	1.6 mm	0.063 "	0.38 mm	0.015 in	Tubing Flexible	164 '	50 m	Enter Number of Meters in Order Quantity

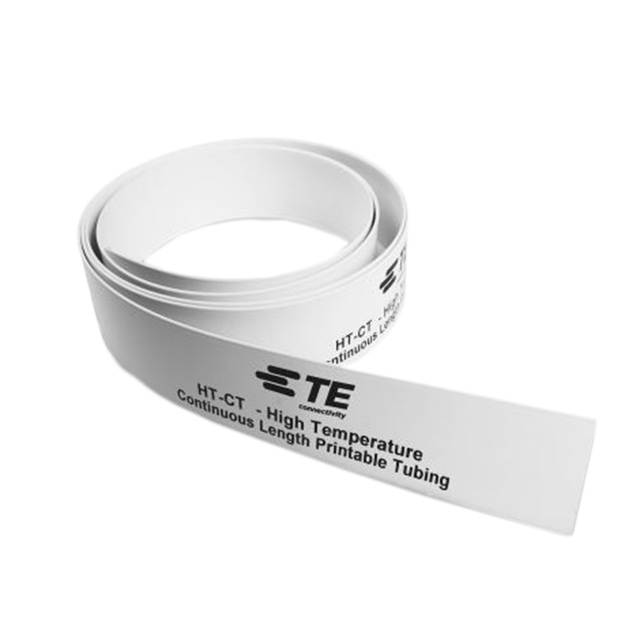

TE Connectivity AMP Connectors HT-CT-50M-1/4-OUT-0	Date of Manufacture	Black	-55 C	225 °C			1	2	0.25 "		48 Months	3.18 mm	0.125 in	0.38 mm	0.015 in	Tubing Flexible	164 '	50 m	Enter Number of Meters in Order Quantity	6.35 mm
TE Connectivity AMP Connectors HT-CT-50M-1-1/2-OUT-0	Date of Manufacture	Black	-55 C	135 °C	50 m	164 ft	1	2	38.1 mm	1.5 in	48 Months	19.05 mm	0.75 "	0.43 mm	0.017 in	Tubing Flexible
TE Connectivity AMP Connectors HT-CT-50M-3/32-OUT-0	Date of Manufacture	Black	-55 C	225 °C					2.36 mm	0.093 "	48 Months	0.79 mm	0.031 in	0.38 mm	0.015 in	Tubing Flexible	164 '	50 m	Enter Number of Meters in Order Quantity		3 to 1
