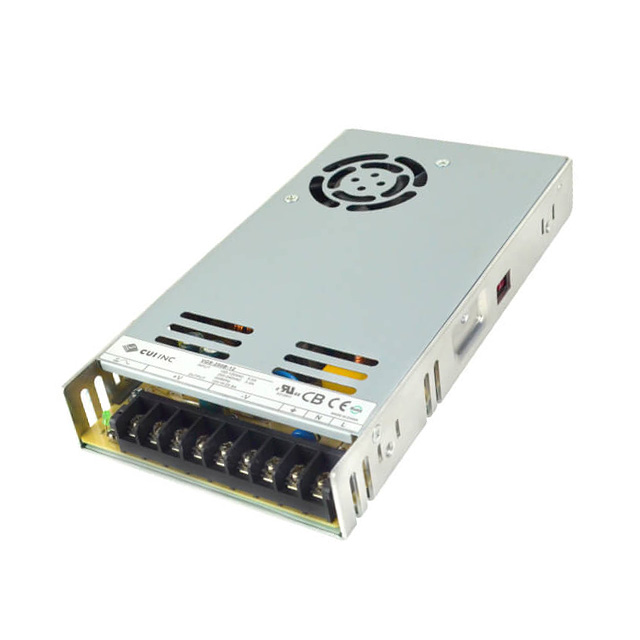

VGS-250 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 48V 250W
| Part | Power (Watts) | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Standard Number | Mounting Type | Current - Output 1 | Voltage - Output 1 | Approval Agency | Applications | Features | Type | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 250 W | 215 mm | 30 mm | 1.18 in | 4.53 in | 115 mm | 8.46 in | 1.5 kV | 90 VAC 180 VAC | 132 VAC 264 VAC | 1 | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | Chassis Mount | 5.2 A | 48 V | CB Scheme EN FCC IEC SIQ TUV UL | ITE (Commercial) | Adjustable Output | Enclosed | 70 °C | -20 °C | |
CUI Inc. | 250 W | 215 mm | 30 mm | 1.18 in | 4.53 in | 115 mm | 8.46 in | 1.5 kV | 90 VAC 180 VAC | 132 VAC 264 VAC | 1 | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | Chassis Mount | 20.8 A | 12 V | CB Scheme EN FCC IEC SIQ TUV UL | ITE (Commercial) | Adjustable Output | Enclosed | 70 °C | -20 °C | 86.5 % |
 CUI Inc. | 252 W | 215 mm | 30 mm | 1.18 in | 4.53 in | 115 mm | 8.46 in | 1.5 kV | 90 VAC 180 VAC | 132 VAC 264 VAC | 1 | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | Chassis Mount | 10.5 A | 24 V | CB Scheme EN FCC IEC SIQ TUV UL | ITE (Commercial) | Adjustable Output | Enclosed | 70 °C | -20 °C | 89 % |
