LPC2292 Series

Catalog

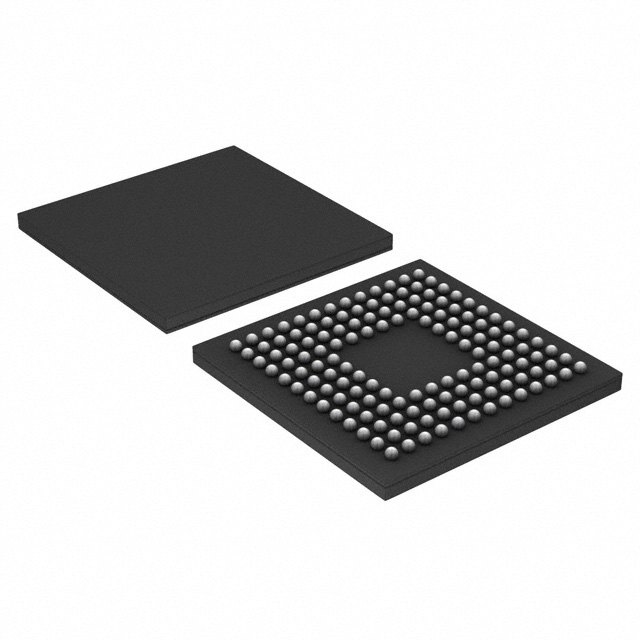

IC MCU 16/32BIT 256KB 144TFBGA

Part	Oscillator Type	Program Memory Type	Supplier Device Package	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Core Processor	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Peripherals	Number of I/O	Data Converters [custom]	Data Converters [custom]	RAM Size	Mounting Type	Package / Case	Core Size [Min]	Core Size [Max]	Speed
Freescale Semiconductor - NXP LPC2292FET144/01,5	Internal	FLASH	144-TFBGA (12x12)	256 KB	85 °C	-40 °C	CANbus EBI/EMI I2C Microwire SPI SSI SSP UART/USART	ARM7®	3.6 V	1.65 V	POR PWM WDT	112	8	10	16 K	Surface Mount	144-TFBGA	16 Bit	32 Bit	60 MHz
Freescale Semiconductor - NXP LPC2292FBD144/01,5	Internal	FLASH	144-LQFP (20x20)	256 KB	85 °C	-40 °C	CANbus EBI/EMI I2C Microwire SPI SSI SSP UART/USART	ARM7®	3.6 V	1.65 V	POR PWM WDT	112	8	10	16 K	Surface Mount	144-LQFP	16 Bit	32 Bit	60 MHz
Freescale Semiconductor - NXP LPC2292FBD144,551	Internal	FLASH	144-LQFP (20x20)	256 KB	85 °C	-40 °C	CANbus EBI/EMI I2C Microwire SPI SSI SSP UART/USART	ARM7®	3.6 V	1.65 V	POR PWM WDT	112	8	10	16 K	Surface Mount	144-LQFP	16 Bit	32 Bit	60 MHz
