DC0001/06 Series
Manufacturer: t-Global Technology
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
THERM PAD 41.91X28.96MM RED
| Part | Shelf Life | Shelf Life Start | Thermal Conductivity | Type | Thickness | Outline Length | Outline Width | Shape | Usage | Color | Material | Adhesive | Carrier | Backing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 t-Global Technology | 24 Months | Date of Purchase | 2.3 W/m-K | Die-Cut Pad Sheet | 0.0039 in | 41.91 mm | 28.96 mm | Rhombus | TO-3 | Red | Silicone | |||

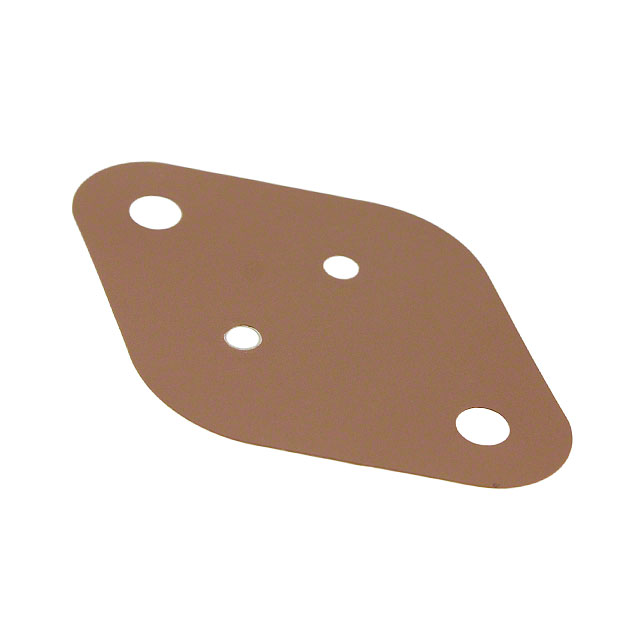

 t-Global Technology | 12 Months | 1.4 W/m-K | Die-Cut Pad Sheet | 0.01 in | 41.91 mm | 28.96 mm | Rhombus | TO-3 | Yellow | Silicone Elastomer | Adhesive - Both Sides | |||

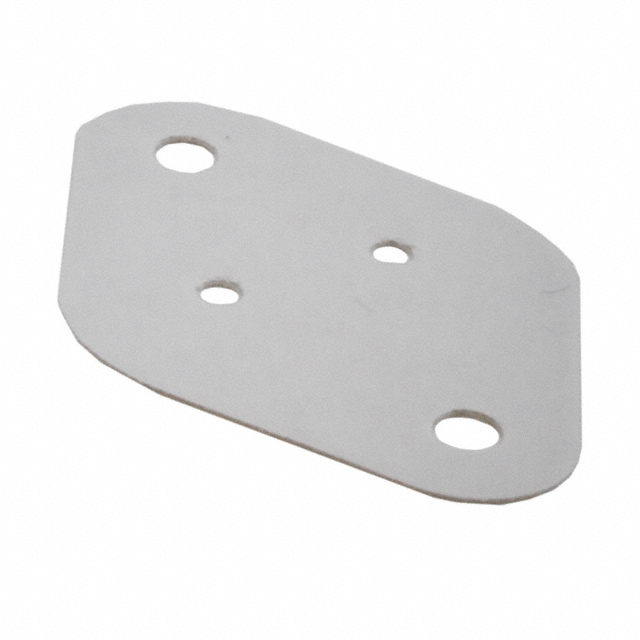

 t-Global Technology | 24 Months | 1.8 W/m-K | Die-Cut Pad Sheet | 0.005 in | 41.91 mm | 28.96 mm | Rhombus | TO-3 | White | Silicone | Adhesive - Both Sides | Viscose | Viscose | |
 t-Global Technology | 24 Months | 2.2 W/m-K | Die-Cut Pad Sheet | 0.079 in | 41.91 mm | 28.96 mm | Rhombus | TO-3 | Red | Silicone Elastomer | ||||

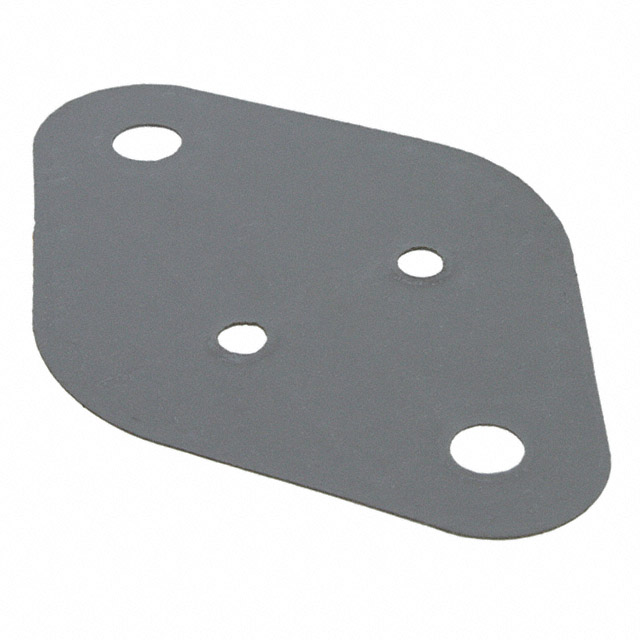

 t-Global Technology | 12 Months | Date of Purchase | 6 W/m-K | Die-Cut Pad Sheet | 0.012 in | 41.91 mm | 28.96 mm | Rhombus | TO-3 | Gray | Silicone Elastomer | Adhesive - Both Sides |
