APT30GP60 Series

Catalog

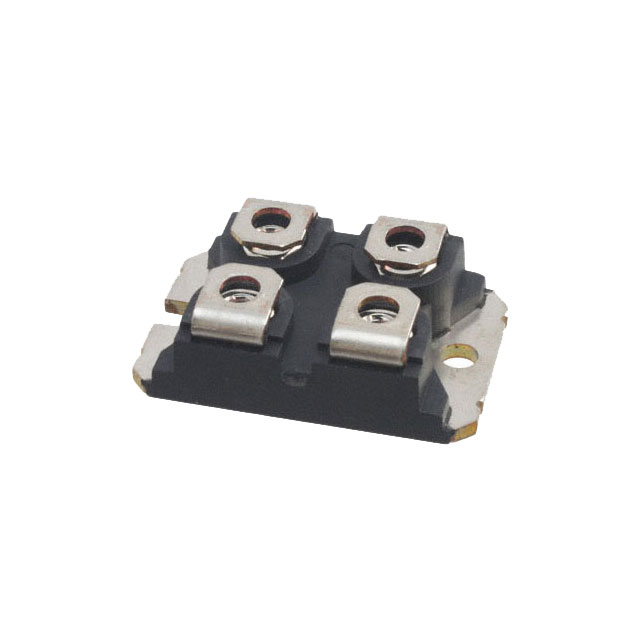

IGBT MODULE 600V 67A 245W ISOTOP

Part	IGBT Type	Input	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Mounting Type	Configuration	Input Capacitance (Cies) @ Vce	Vce(on) (Max) @ Vge, Ic [Max]	Current - Collector Cutoff (Max) [Max]	Switching Energy	Current - Collector Pulsed (Icm)	Gate Charge	Td (on/off) @ 25°C	Test Condition
Microsemi Corporation APT30GP60JDQ1	PT	Standard	SOT-227-4 miniBLOC	150 °C	-55 °C	600 V	ISOTOP®	67 A	245 W	Chassis Mount	Single	3.2 nF	2.7 V	500 çA
Microsemi Corporation APT30GP60B2DLG	PT		TO-247-3	150 °C	-55 °C	600 V	T-MAX™	100 A	463 W	Through Hole			2.7 V		250 µJ 260 µJ	120 A	90 nC	13 ns 55 ns	5 Ohm 15 V 30 A 400 V
Microsemi Corporation APT30GP60LDLG	PT		TO-264-3 TO-264AA	150 °C	-55 °C	600 V	TO-264	100 A	463 W	Through Hole			2.7 V		250 µJ 260 µJ	120 A	90 nC	13 ns 55 ns	5 Ohm 15 V 30 A 400 V
