BFB0505 Series

Catalog

FAN BLOWER 50X10.3MM 5VDC WIRE

Part	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Frame	Bearing Type	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Static Pressure	Static Pressure	Termination	Voltage - Rated	Weight [custom]	Weight [custom]	Width [x]	Approval Agency	RPM	Air Flow	Air Flow	Fan Type	Noise	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Features

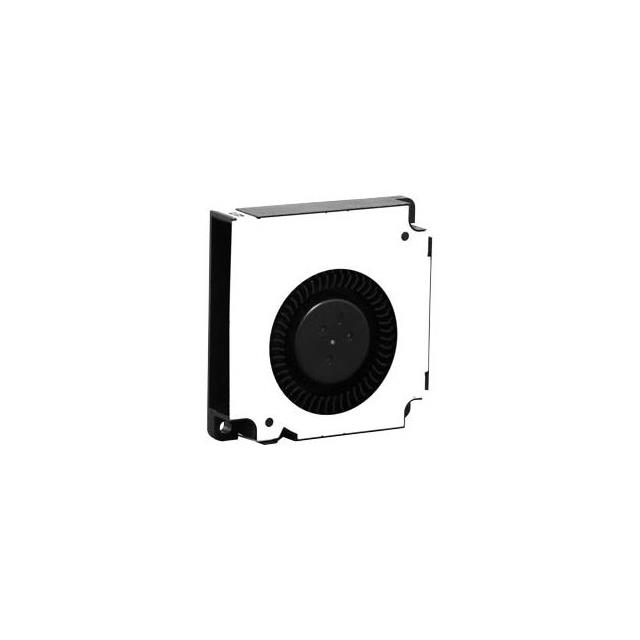

Delta Electronics BFB0505LA-C	Plastic	5.5 V	3 V	60 mA	Plastic	Ball	300 mW	50 mm	50 mm	51.8 Pa	0.208 in H2O	2 Wire Leads	5 V	22.68 g	0.05 lb	10.3 mm	CE CSA UL VDE	3500 RPM	0.061 m³/min	2.2 CFM	Blower	22.5 dB

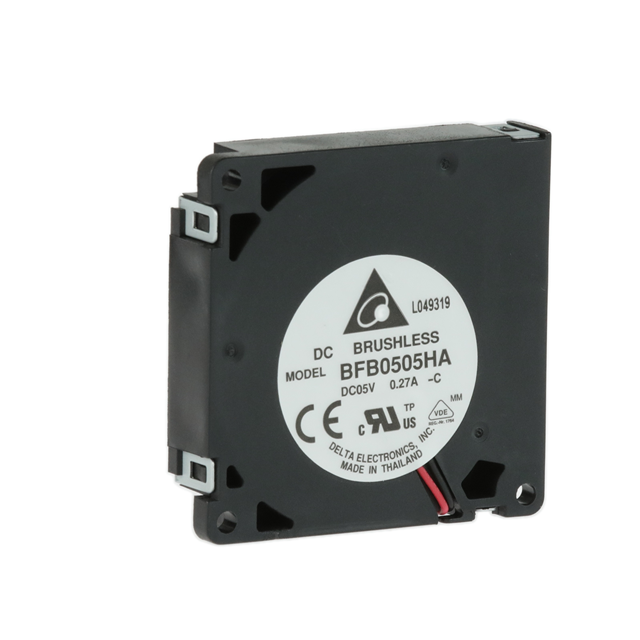

Delta Electronics BFB0505HA-C	Plastic	5.5 V	3 V	0.18 A	Plastic	Ball	0.9 W	50 mm	50 mm	140.2 Pa	0.563 in H2O	2 Wire Leads	5 V	22.68 g	0.05 lb	10.3 mm	CE CSA UL VDE	5100 RPM	0.098 mł/min	3.5 CFM	Blower	32.5 dB	30000 Hrs	70 °C	-10 °C

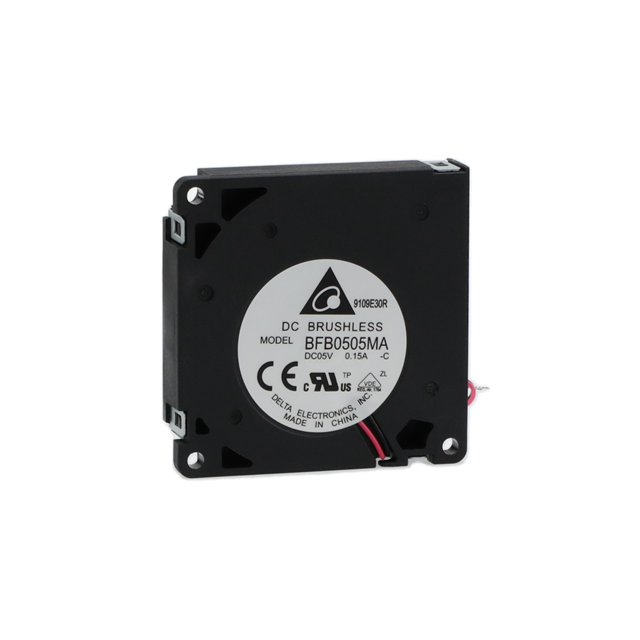

Delta Electronics BFB0505MA-C	Plastic	5.5 V	3.5 VDC	100 mA	Plastic	Ball	0.5 W	50 mm	50 mm	95.4 Pa	0.383 in H2O	2 Wire Leads	5 V	22.68 g	0.05 lb	10.3 mm	CE cURus VDE	4300 RPM	0.081 m³/min	2.9 CFM	Blower	28 dB	30000 Hrs	70 °C	-10 °C
Delta Electronics BFB0505HHA-CF00	Plastic	5.5 V	3 V	0.26 A	Plastic	Ball	1.3 W	50 mm	50 mm	196.8 Pa	0.79 in H2O	3 Wire Leads	5 V	22.68 g	0.05 lb	10.3 mm	CE CSA UL VDE	5900 RPM	0.112 m³/min	4 CFM	Blower	37.5 dB(A)				Speed Sensor (Tach)
Delta Electronics BFB0505HA-CR00	Plastic	5.5 V	3 V	0.18 A	Plastic	Ball	0.9 W	50 mm	50 mm	140.2 Pa	0.563 in H2O	3 Wire Leads	5 V	22.68 g	0.05 lb	10.3 mm	CE CSA UL VDE	5100 RPM	0.098 mł/min	3.5 CFM	Blower	32.5 dB	30000 Hrs	70 °C	-10 °C	Locked Rotor Sensor
