MAX22518 Series

Catalog

DUAL CHANNEL DIGITAL ISOLATOR WI

Part	Voltage - Isolation	Voltage - Supply [Max]	Voltage - Supply [Min]	Pulse Width Distortion (Max) [Max]	Number of Channels [custom]	Supplier Device Package	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Isolated Power	Data Rate	Mounting Type	Propagation Delay tpLH / tpHL (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case [y]	Package / Case	Package / Case [x]	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Technology

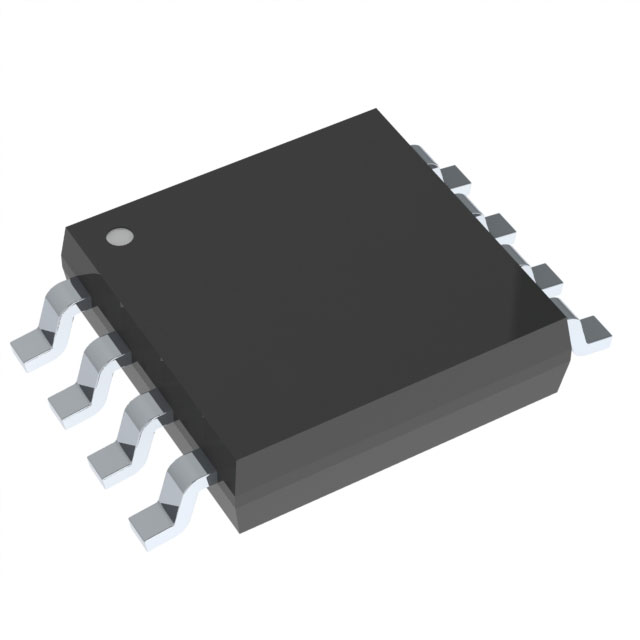

Analog Devices Inc./Maxim Integrated MAX22518AWA+T	3500 Vrms	5.5 V	3 V	20 ns	2	8-SOIC	2	0		1 Mbps	Surface Mount	130 ns	125 °C	-40 °C	General Purpose	5.3 mm	8-SOIC	0.209 "	Unidirectional	20 ns	20 ns	Capacitive Coupling
Analog Devices Inc./Maxim Integrated MAX22518AWA+	3500 Vrms	5.5 V	3 V	20 ns	2	8-SOIC	2	0		1 Mbps	Surface Mount	130 ns	125 °C	-40 °C	General Purpose	5.3 mm	8-SOIC	0.209 "	Unidirectional	20 ns	20 ns	Capacitive Coupling
