H67 Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 4.94"L X 2.75"W

Part	Weight	Weight	Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material Flammability Rating	Color	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Thickness	Thickness	Container Type	Ratings	Features

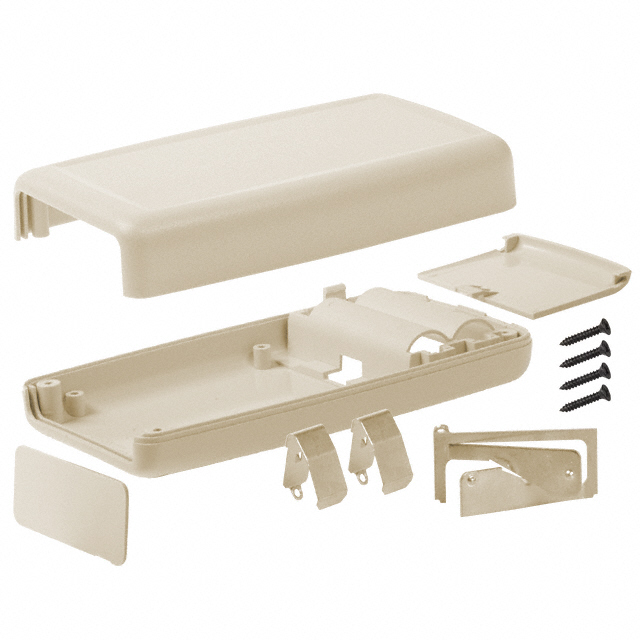

Serpac H67AA,AL	58.97 g	0.13 lbs	ABS Plastic	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	Almond	13.6 in˛	88 cm²	32.51 mm	1.28 in	0.08 in	2.03 mm	Box	IP40	AA Battery Compartment PCB Supports

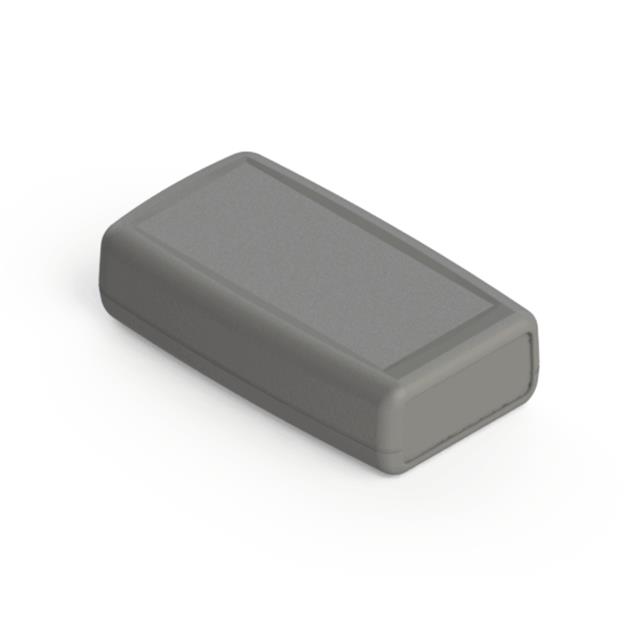

Serpac H67,GY	58.97 g	0.13 lbs	ABS Plastic	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	Gray	13.6 in˛	88 cm²	32.51 mm	1.28 in	0.08 in	2.03 mm	Box	IP40	PCB Supports

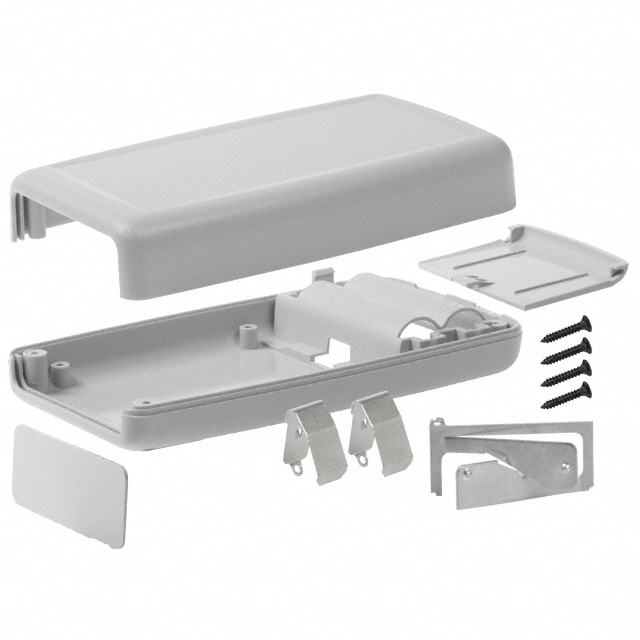

Serpac H67AA,GY	58.97 g	0.13 lbs	ABS Plastic	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	Gray	13.6 in˛	88 cm²	32.51 mm	1.28 in	0.08 in	2.03 mm	Box	IP40	AA Battery Compartment PCB Supports

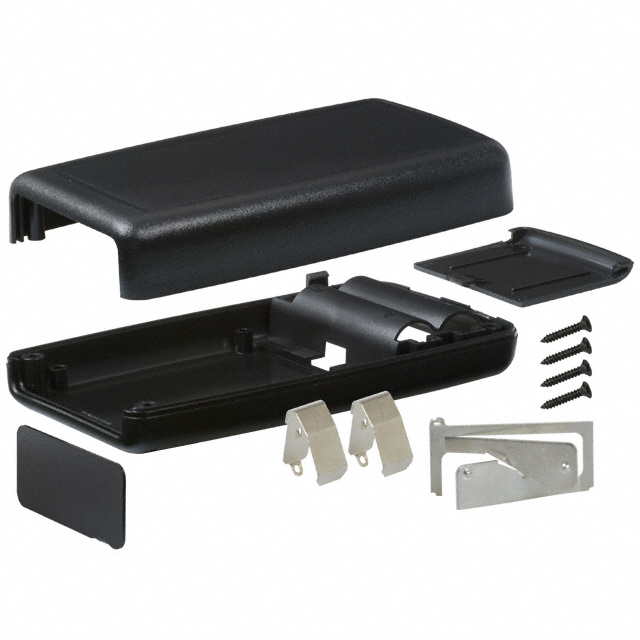

Serpac H67AA,BK	58.97 g	0.13 lbs	ABS Plastic	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	Black	13.6 in˛	88 cm²	32.51 mm	1.28 in	0.08 in	2.03 mm	Box	IP40	AA Battery Compartment PCB Supports

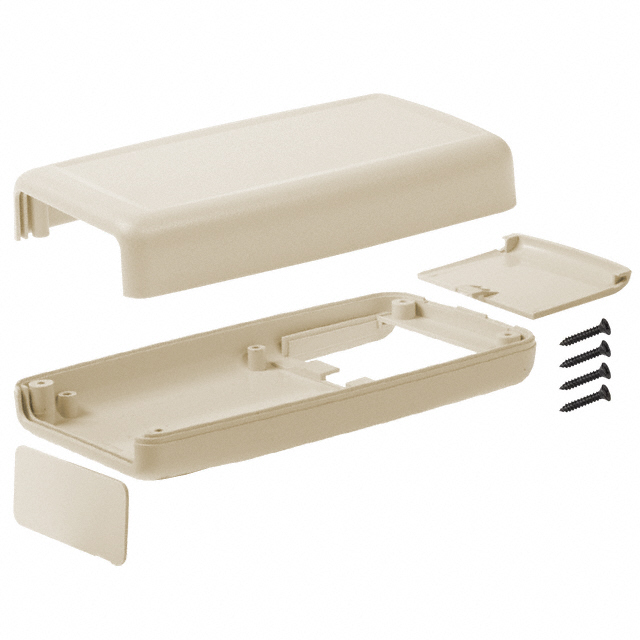

Serpac H67AC,AL	58.97 g	0.13 lbs	ABS Plastic	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	Almond	13.6 in˛	88 cm²	32.51 mm	1.28 in	0.08 in	2.03 mm	Box	IP40	Battery Door PCB Supports

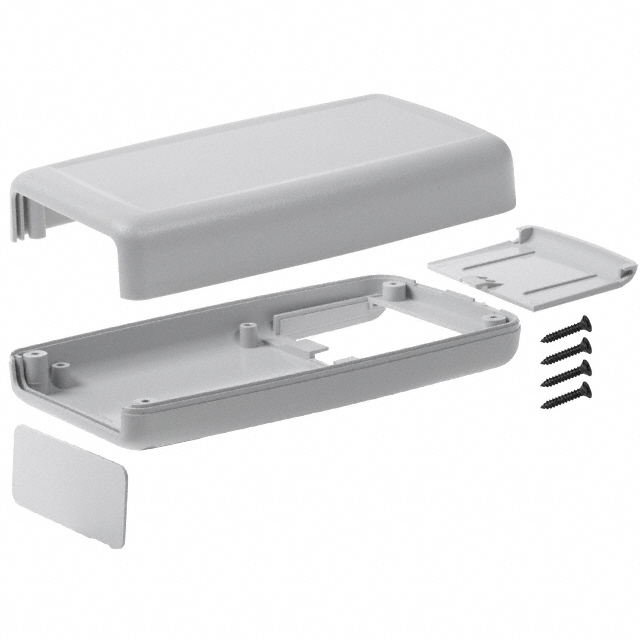

Serpac H67AC,GY	58.97 g	0.13 lbs	ABS Plastic	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	Gray	13.6 in˛	88 cm²	32.51 mm	1.28 in	0.08 in	2.03 mm	Box	IP40	Battery Door PCB Supports

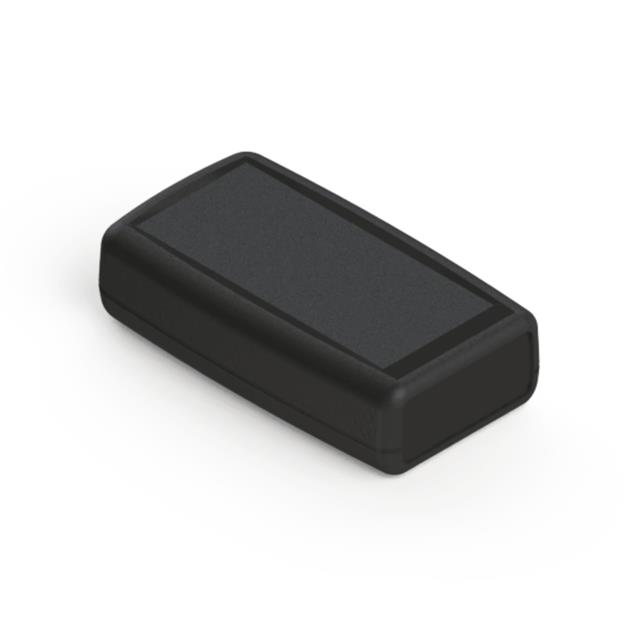

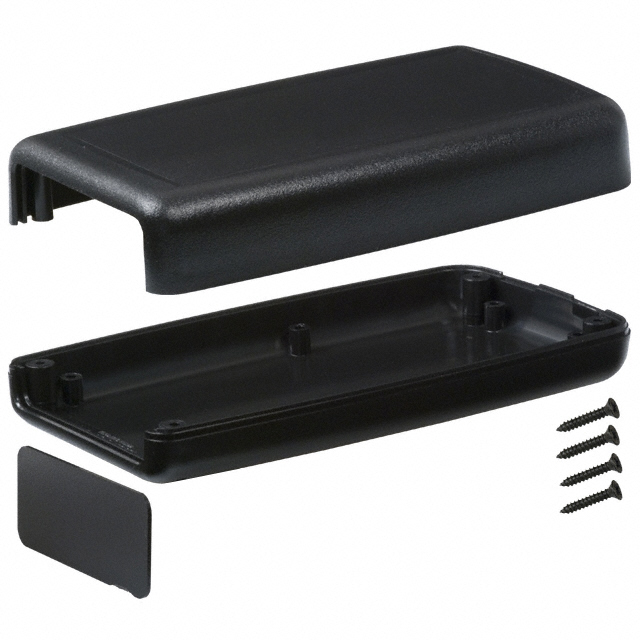

Serpac H67,BK	58.97 g	0.13 lbs	ABS Plastic	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	Black	13.6 in˛	88 cm²	32.51 mm	1.28 in	0.08 in	2.03 mm	Box	IP40	PCB Supports

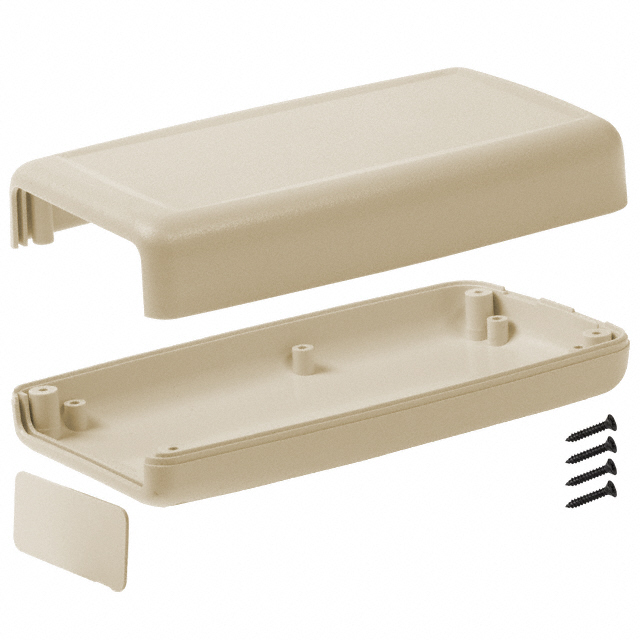

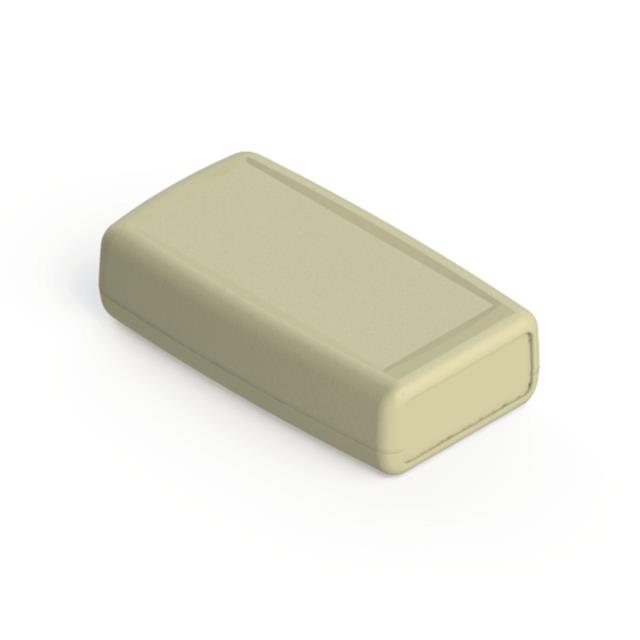

Serpac H67,AL	58.97 g	0.13 lbs	ABS Plastic	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	Almond	13.6 in˛	88 cm²	32.51 mm	1.28 in	0.08 in	2.03 mm	Box	IP40	PCB Supports

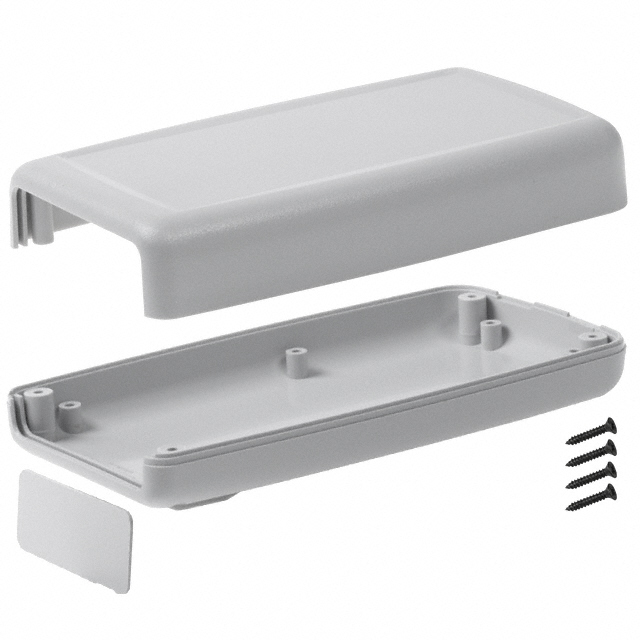

Serpac H67PC,GY	62.14 g	0.137 lb	ABS Plastic	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	Gray	13.6 in˛	88 cm²	32.51 mm	1.28 in	0.08 in	2.03 mm	Box	IP40	PCB Supports Pocket Clip

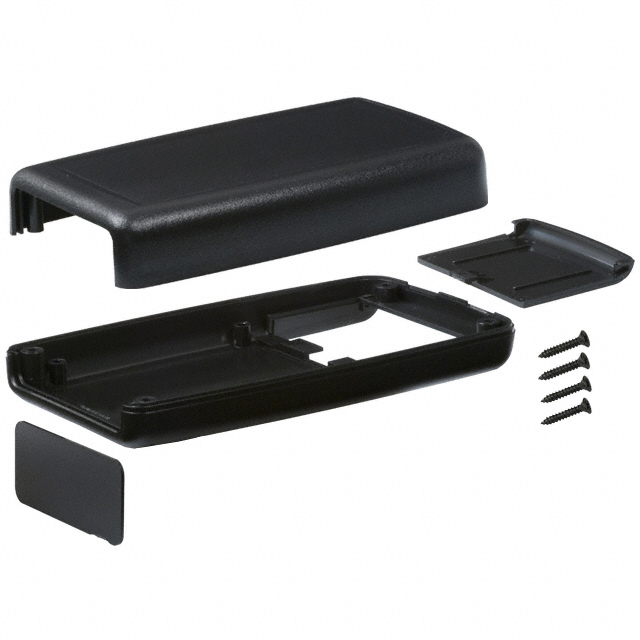

Serpac H67AC,BK	58.97 g	0.13 lbs	ABS Plastic	125.48 mm	4.94 "	2.75 in	69.85 mm	UL94 HB	Black	13.6 in˛	88 cm²	32.51 mm	1.28 in	0.08 in	2.03 mm	Box	IP40	Battery Door PCB Supports
