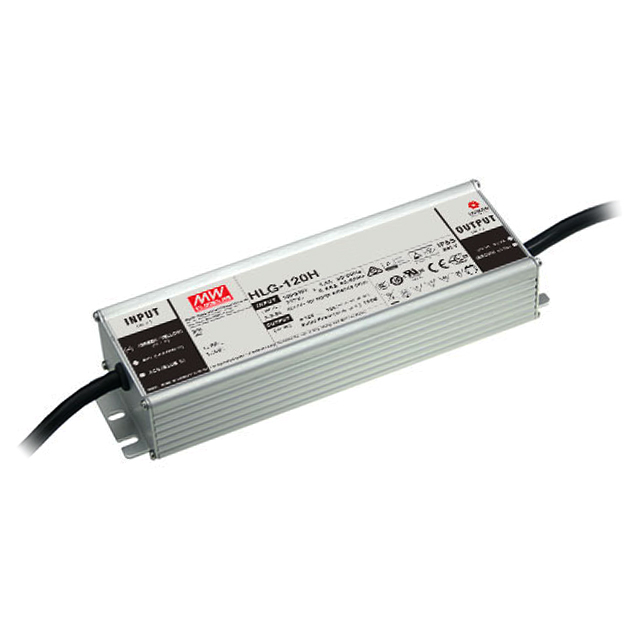

HLG-120H Series

Catalog

LED DRVR CC/CV AC/DC 7.5-15V 8A

Part	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Approval Agency	Ratings	Type	Termination Style	Voltage - Isolation	Dimming	Power (Watts)	Topology	Efficiency	Number of Outputs	Voltage - Output [Min]	Voltage - Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Voltage - Output
MEAN WELL USA Inc. HLG-120H-15B	Chassis Mount	90 VAC	305 VAC	CB CCC CE cURus ENEC PSE RCM TUV	IP67	Constant Current Voltage	Wire Leads	3750 VDC	Analog PWM	120 W	AC DC Converter	92 %	1	7.5 V	15 V	80 °C	-40 C	8 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	OCP OTP OVP SCP
MEAN WELL USA Inc. HLG-120H-12AB	Chassis Mount	90 VAC	305 VAC	CB CCC CE cURus ENEC KC PSE RCM TUV	IP65	Constant Current Voltage	Wire Leads	3750 VDC	Analog PWM	120 W	AC DC Converter	92 %	1			80 °C	-40 C	10 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	OCP OTP OVP SCP	12 V
MEAN WELL USA Inc. HLG-120H-30B	Chassis Mount	90 VAC	305 VAC	CB CCC CE cURus ENEC PSE RCM TUV	IP67	Constant Current Voltage	Wire Leads	3750 VDC	Analog PWM	120 W	AC DC Converter	93 %	1	15 V	30 VDC	80 °C	-40 C	4 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	OCP OTP OVP SCP

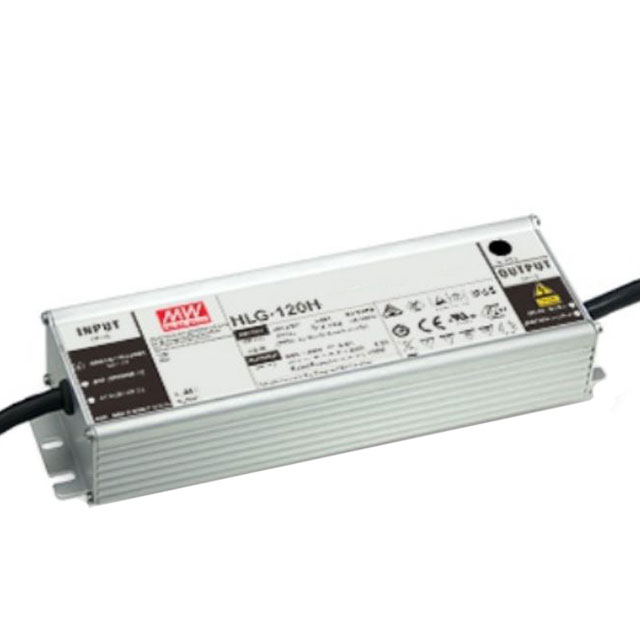

MEAN WELL USA Inc. HLG-120H-C500A	Chassis Mount	90 VAC	305 VAC	CB CCC CE cURus ENEC PSE RCM	IP65	Constant Current	Wire Leads	3750 VDC		150 W	AC DC Converter	94 %	1	150 V	300 V	90 °C	-40 C	500 mA	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	OTP OVP SCP
MEAN WELL USA Inc. HLG-120H-48B	Chassis Mount	90 VAC	305 VAC	CB CCC CE cURus ENEC PSE RCM TUV	IP67	Constant Current Voltage	Wire Leads	3750 VDC	Analog PWM	120 W	AC DC Converter	93.5 %	1	24 V	48 V	80 °C	-40 C	2.5 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	OCP OTP OVP SCP
MEAN WELL USA Inc. HLG-120H-C1050A	Chassis Mount	90 VAC	305 VAC	CB CCC CE cURus ENEC PSE RCM	IP65	Constant Current	Wire Leads	3750 VDC		155 W	AC DC Converter	94 %	1	74 V	148 V	90 °C	-40 C	1.05 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	OTP OVP SCP
MEAN WELL USA Inc. HLG-120H-12	Chassis Mount	90 VAC	305 VAC	CB CCC CE cURus ENEC PSE RCM TUV	IP67	Constant Current Voltage	Wire Leads	3750 VDC		120 W	AC DC Converter	92 %	1	6 V	12 V	80 °C	-40 C	10 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	OCP OTP OVP SCP
MEAN WELL USA Inc. HLG-120H-48	Chassis Mount	90 VAC	305 VAC	CB CCC CE cURus ENEC PSE RCM TUV	IP67	Constant Current Voltage	Wire Leads	3750 VDC		120 W	AC DC Converter	93.5 %	1	24 V	48 V	80 °C	-40 C	2.5 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	OCP OTP OVP SCP
MEAN WELL USA Inc. HLG-120H-20A	Chassis Mount	90 VAC	305 VAC	CB CCC CE cURus ENEC PSE RCM TUV	IP65	Constant Current Voltage	Wire Leads	3750 VDC		120 W	AC DC Converter	93 %	1	17 V	22 V	80 °C	-40 C	6 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	OCP OTP OVP SCP
MEAN WELL USA Inc. HLG-120H-48AB	Chassis Mount	90 VAC	305 VAC	CB CCC CE cURus ENEC KC PSE RCM TUV	IP65	Constant Current Voltage	Wire Leads	3750 VDC		120 W	AC DC Converter	93.5 %	1			80 °C	-40 C	2.5 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	OCP OTP OVP SCP	48 V
