039500 Series

Manufacturer: Molex

Catalog

Catalog

TERM BLOCK PLUG 4POS STR 3.5MM

...

Part	Positions Per Level	Torque - Screw	Torque - Screw	Color	Termination Style	Insulation Height	Insulation Height	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Material Flammability Rating	Current - UL	Contact Mating Finish	Mounting Type	Number of Levels	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Strip Length	Features	Pitch [x]	Pitch [x]	Voltage - UL	Number of Positions
Molex 0395000604	4	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	4	UL94 V-0	8 A	Gold	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395000505	5	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG		UL94 V-0	8 A	Gold	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm		3.5 mm	0.138 in	300 V
Molex 0395000611	11	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	11	UL94 V-0	8 A	Gold	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395000116	16	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG		UL94 V-0	8 A	Tin	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V	16
Molex 0395000112	12	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	12	UL94 V-0	8 A	Tin	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395000608	8	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	8	UL94 V-0	8 A	Gold	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395000109	9	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	9	UL94 V-0	8 A	Tin	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395005607	7	0.23 Nm	2 Lb-In	Green	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	7	UL94 V-0	8 A	Gold	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V

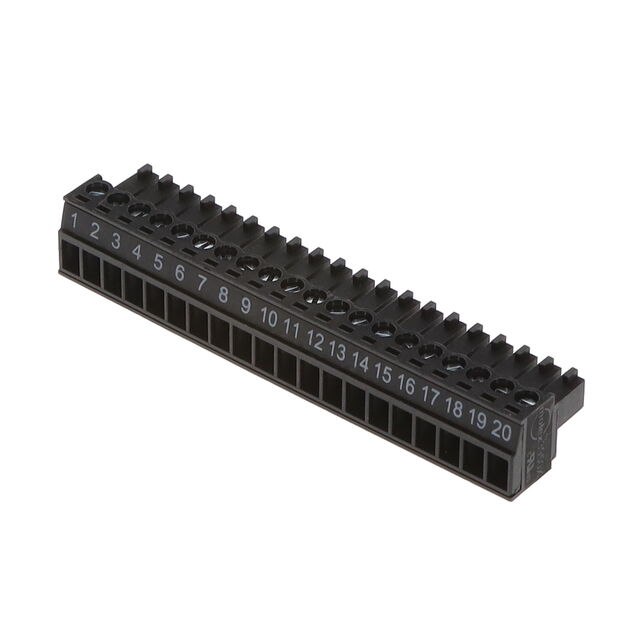

Molex 0395000120	20	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	20	UL94 V-0	8 A	Tin	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V

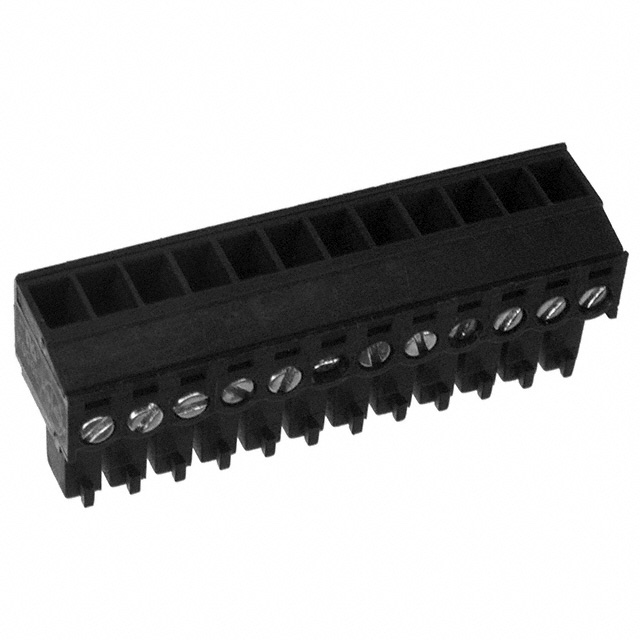

Molex 0395000012	12	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	12	UL94 V-0	8 A	Tin	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm		3.5 mm	0.138 in	300 V
