69168 Series

Catalog

CONN HEADER VERT 6POS 2.54MM

Part	Connector Type	Style	Number of Rows	Contact Shape	Contact Type	Mounting Type	Shrouding	Material Flammability Rating	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating	Termination	Fastening Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length
Amphenol ICC (FCI) 69168-306HLF	Header	Board to Cable/Wire	2	Square	Male Pin	Through Hole	Shrouded - 2 Wall	UL94 V-0	Gold or Gold GXT™	0.23 in	5.84 mm	Solder	Friction Lock	Black	1.27 µm	50 µin	6	0.1 in	2.54 mm	7.62 mm	0.3 in	2.54 mm	0.1 in	All	9.8 mm	0.386 in	Phosphor Bronze	0.12 in	3.05 mm
Amphenol ICC (FCI) 69168-320	Header	Board to Cable/Wire	2	Square	Male Pin	Through Hole	Shrouded - 2 Wall	UL94 V-0	Gold or Gold GXT™	0.23 in	5.84 mm	Solder	Friction Lock	Black	1.27 µm	50 µin	20	0.1 in	2.54 mm	25.4 mm	1 in	2.54 mm	0.1 in	All	9.8 mm	0.386 in	Phosphor Bronze	0.12 in	3.05 mm
Amphenol ICC (FCI) 69168-418HLF	Header	Board to Cable/Wire	2	Square	Male Pin	Through Hole	Shrouded - 2 Wall	UL94 V-0		0.23 in	5.84 mm	Solder	Friction Lock	Black	2.54 çm	100 çin	18	0.1 in	2.54 mm	0.9 in		2.54 mm	0.1 in	All	9.8 mm	0.386 in	Phosphor Bronze	0.12 in	3.05 mm	22.86 mm
Amphenol ICC (FCI) 69168-422HLF	Header	Board to Cable/Wire	2	Square	Male Pin	Through Hole	Shrouded - 2 Wall	UL94 V-0		0.23 in	5.84 mm	Solder	Friction Lock	Black	2.54 çm	100 çin	22 positions	0.1 in	2.54 mm	27.94 mm	1.1 in	2.54 mm	0.1 in	All	9.8 mm	0.386 in	Phosphor Bronze	0.12 in	3.05 mm

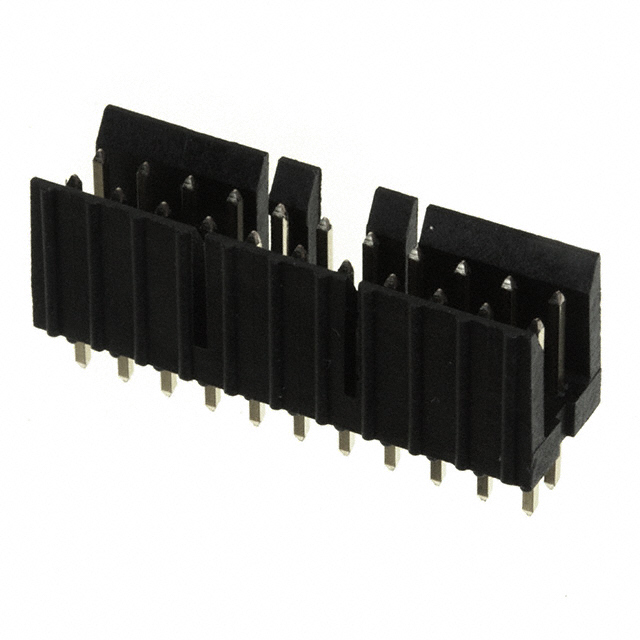

Amphenol ICC (FCI) 69168-122HLF	Header	Board to Cable/Wire	2	Square	Male Pin	Through Hole	Shrouded - 2 Wall	UL94 V-0	Gold or Gold GXT™	0.23 in	5.84 mm	Solder	Friction Lock	Black	0.76 Ám	30 Áin	22 positions	0.1 in	2.54 mm	27.94 mm	1.1 in	2.54 mm	0.1 in	All	9.8 mm	0.386 in	Phosphor Bronze	0.12 in	3.05 mm
Amphenol ICC (FCI) 69168-330HLF	Header	Board to Cable/Wire	2	Square	Male Pin	Through Hole	Shrouded - 2 Wall	UL94 V-0	Gold or Gold GXT™	0.23 in	5.84 mm	Solder	Friction Lock	Black	1.27 µm	50 µin	30	0.1 in	2.54 mm	38.1 mm	1.5 in	2.54 mm	0.1 in	All	9.8 mm	0.386 in	Phosphor Bronze	0.12 in	3.05 mm
Amphenol ICC (FCI) 69168-222	Header	Board to Cable/Wire	2	Square	Male Pin	Through Hole	Shrouded - 2 Wall	UL94 V-0	Gold or Gold GXT™	0.23 in	5.84 mm	Solder	Friction Lock	Black	0.38 µm	15 µin	22 positions	0.1 in	2.54 mm	27.94 mm	1.1 in	2.54 mm	0.1 in	All	9.8 mm	0.386 in	Phosphor Bronze	0.12 in	3.05 mm

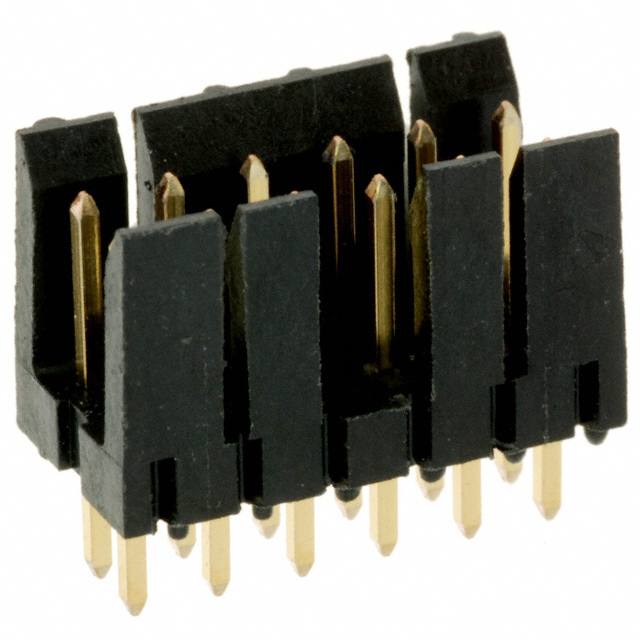

Amphenol ICC (FCI) 69168-112HLF	Header	Board to Cable/Wire	2	Square	Male Pin	Through Hole	Shrouded - 2 Wall	UL94 V-0	Gold or Gold GXT™	0.23 in	5.84 mm	Solder	Friction Lock	Black	0.76 Ám	30 Áin	12	0.1 in	2.54 mm	15.24 mm	0.6 in	2.54 mm	0.1 in	All	9.8 mm	0.386 in	Phosphor Bronze	0.12 in	3.05 mm
Amphenol ICC (FCI) 69168-210	Header	Board to Cable/Wire	2	Square	Male Pin	Through Hole	Shrouded - 2 Wall	UL94 V-0	Gold or Gold GXT™	0.23 in	5.84 mm	Solder	Friction Lock	Black	0.38 µm	15 µin	10	0.1 in	2.54 mm	12.7 mm	0.5 "	2.54 mm	0.1 in	All	9.8 mm	0.386 in	Phosphor Bronze	0.12 in	3.05 mm
Amphenol ICC (FCI) 69168-328HLF	Header	Board to Cable/Wire	2	Square	Male Pin	Through Hole	Shrouded - 2 Wall	UL94 V-0	Gold or Gold GXT™	0.23 in	5.84 mm	Solder	Friction Lock	Black	1.27 µm	50 µin	28	0.1 in	2.54 mm	11.81 mm	0.465 in	2.54 mm	0.1 in	All	9.8 mm	0.386 in	Phosphor Bronze	0.12 in	3.05 mm
