SI823 Series

Catalog

5KV GATE DRIVER 14-QFN

...

Part	Rise / Fall Time (Typ)	Rise / Fall Time (Typ) [Max]	Propagation Delay tpLH / tpHL (Max)	Technology	Approval Agency	Voltage - Isolation	Number of Channels [custom]	Current - Peak Output	Supplier Device Package	Pulse Width Distortion (Max) [Max]	Common Mode Transient Immunity (Min) [Min]	Package / Case	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Supplied Contents	Type	Utilized IC / Part	Function	Contents	Package / Case [x]	Package / Case [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Number of Channels	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)	Package / Case
Skyworks Solutions Inc. SI823H3AB-IM1	12 ns	12 ns	116 ns	Capacitive Coupling	CQC CSA UL VDE	2500 Vrms	1	6 A	14-QFN (5x5)	5 ns	125 V/ns	14-VDFN	Surface Mount	4 A	4 A	125 °C	-40 C	30 V	5.5 V

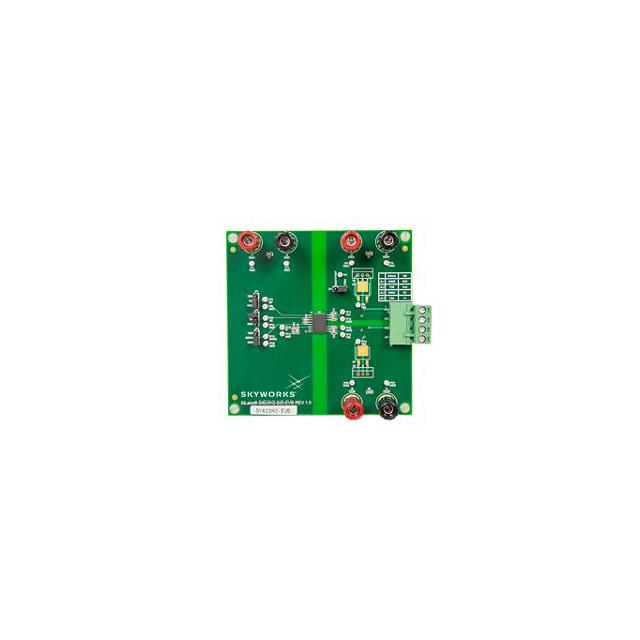

Skyworks Solutions Inc. SI823H2-KIT																				Board(s)	Power Management	SI823H2	Gate Driver	Board(s)
Skyworks Solutions Inc. SI823H8BD-IS3R	12 ns	12 ns		Capacitive Coupling	CQC CSA UL VDE		1	6 A		5 ns	125 V/ns	14-SOIC	Surface Mount	4 A	4 A	125 °C	-40 C	30 V	5.5 V						0.295 in	7.5 mm	30 ns	30 ns
Skyworks Solutions Inc. SI823HEN1-IS3
Skyworks Solutions Inc. SI823H3CD-IS3R	12 ns	12 ns	116 ns	Capacitive Coupling	CQC CSA UL VDE		1	6 A		5 ns	125 V/ns	14-SOIC	Surface Mount	4 A	4 A	125 °C	-40 C	30 V	5.5 V						0.295 in	7.5 mm
Skyworks Solutions Inc. SI823H4CD-IS3	12 ns	12 ns		Capacitive Coupling	CQC CSA UL VDE		1	6 A		5 ns	125 V/ns	14-SOIC	Surface Mount	4 A	4 A	125 °C	-40 C	30 V	5.5 V						0.295 in	7.5 mm	30 ns	30 ns
Skyworks Solutions Inc. SI823H3BD-IS3	12 ns	12 ns	116 ns	Capacitive Coupling	CQC CSA UL VDE		1	6 A		5 ns	125 V/ns	14-SOIC	Surface Mount	4 A	4 A	125 °C	-40 C	30 V	5.5 V						0.295 in	7.5 mm
Skyworks Solutions Inc. SI823H5AB-IM1	12 ns	12 ns		Capacitive Coupling	CQC CSA UL VDE	2500 Vrms		6 A	14-QFN (5x5)	5 ns	125 V/ns	14-VDFN	Surface Mount	4 A	4 A	125 °C	-40 C	30 V	5.5 V								30 ns	30 ns	2
Skyworks Solutions Inc. SI823H5AB-IM1R	12 ns	12 ns		Capacitive Coupling	CQC CSA UL VDE	2500 Vrms		6 A	14-QFN (5x5)	5 ns	125 V/ns	14-VDFN	Surface Mount	4 A	4 A	125 °C	-40 C	30 V	5.5 V								30 ns	30 ns	2
Skyworks Solutions Inc. SI823H1CB-IS1				Capacitive Coupling	CQC CSA UL VDE	2500 Vrms		6 A	16-SOIC	5 ns	125 V/ns	16-SOIC	Surface Mount	4 A	4 A	125 °C	-40 C	30 V	5.5 V								58 ns	30 ns	2	12 ns	12 ns	0.154 in 3.9 mm
