L77SDA15 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB RCPT 15POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Form | Dielectric Material | Contact Material | Voltage Rating | Material Flammability Rating | Termination | Number of Rows [custom] | Connector Style | Contact Type | Mounting Type | Backset Spacing | Backset Spacing | Connector Type | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Shell Size, Connector Layout | Number of Positions | Contact Finish | Features | Contact Finish Thickness | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

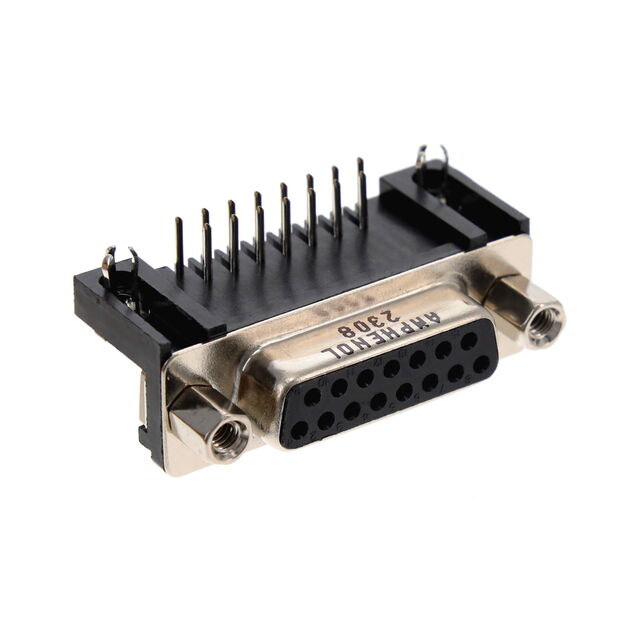

 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Black | Stamped | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | UL94 V-0 | Solder | 2 | D-Sub | Signal | Right Angle Through Hole | 10.3 mm | 0.406 in | Receptacle Female Sockets | Board Side (4-40) | 30 Áin | 0.76 Ám | 3 A | 2 | 15 | Gold | Board Lock | ||
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Black | Stamped | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | UL94 V-0 | Solder | 2 | D-Sub | Signal | Right Angle Through Hole | 10.3 mm | 0.406 in | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | 3 A | 2 | 15 | Gold | Board Lock | Flash | |||
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Black | Stamped | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | UL94 V-0 | Solder | 2 | D-Sub | Signal | Right Angle Through Hole | 8.08 mm | 0.318 " | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | 3 A | 2 | 15 | Gold | Board Lock | ||

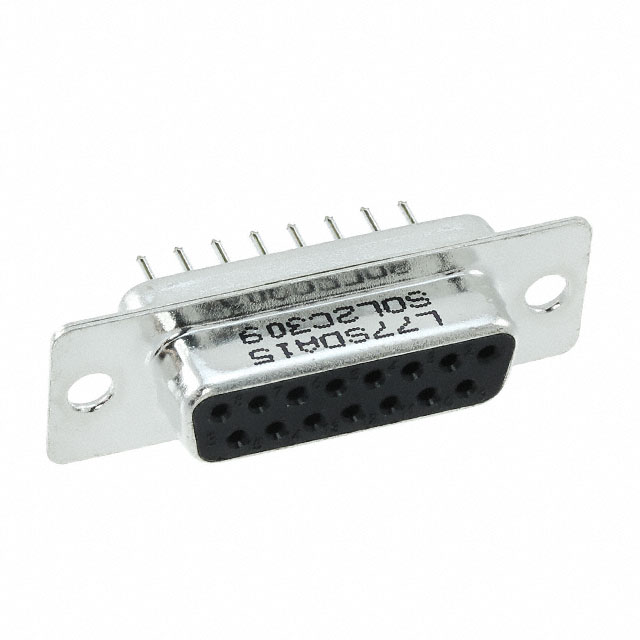

 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Black | Stamped | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | UL94 V-0 | Solder | 2 | D-Sub | Signal | Through Hole | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 3 A | 2 | 15 | Gold | Flash | ||||||

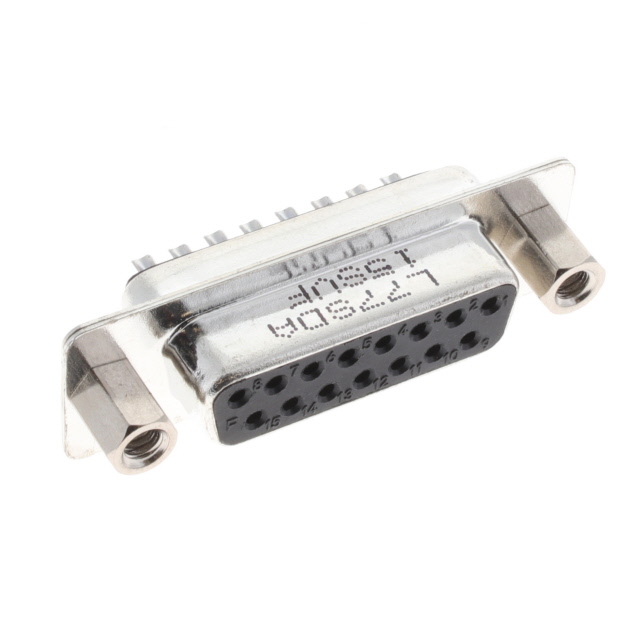

 Amphenol ICC (Commercial Products) | -55 C | 105 ░C | Black | Stamped | Thermoplastic Glass Filled | Brass | 250 V | UL94 V-0 | 2 | D-Sub | Signal | Free Hanging (In-Line) | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | 3 A | 2 | 15 | Gold | Flash | 20 AWG | ||||||
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Black | Stamped | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | UL94 V-0 | Solder | 2 | D-Sub | Signal | Right Angle Through Hole | 8.08 mm | 0.318 " | Receptacle Female Sockets | Board Side (4-40) | 3 A | 2 | 15 | Gold | Board Lock | Flash | |||
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Black | Stamped | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | UL94 V-0 | Solder | 2 | D-Sub | Signal | Right Angle Through Hole | 8.08 mm | 0.318 " | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | 3 A | 2 | 15 | Gold | Board Lock | Flash | |||
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Black | Stamped | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | UL94 V-0 | Solder | 2 | D-Sub | Signal | Right Angle Through Hole | 10.3 mm | 0.406 in | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | 3 A | 2 | 15 | Gold | Board Lock | Flash | |||

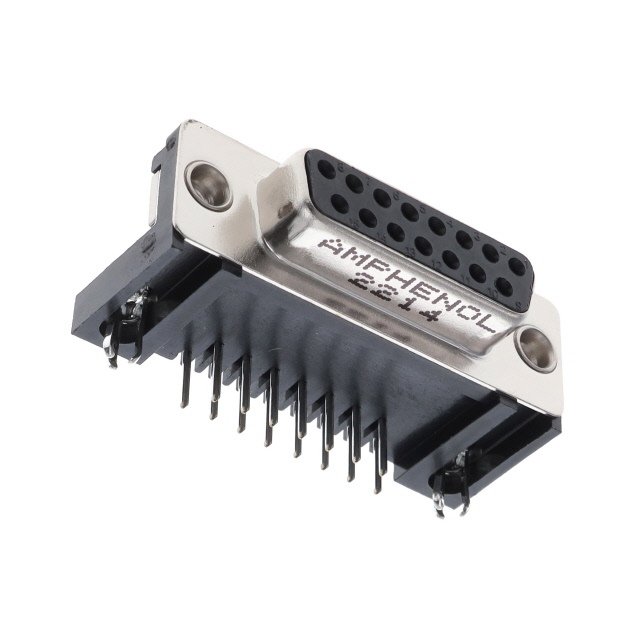

 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Black | Stamped | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | UL94 V-0 | Solder | 2 | D-Sub | Signal | Right Angle Through Hole | 10.3 mm | 0.406 in | Receptacle Female Sockets | Board Side (4-40) | 3 A | 2 | 15 | Gold | Board Lock | Flash | |||
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Black | Stamped | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | UL94 V-0 | Solder | 2 | D-Sub | Signal | Right Angle Through Hole | 10.3 mm | 0.406 in | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | 3 A | 2 | 15 | Gold | Board Lock |
