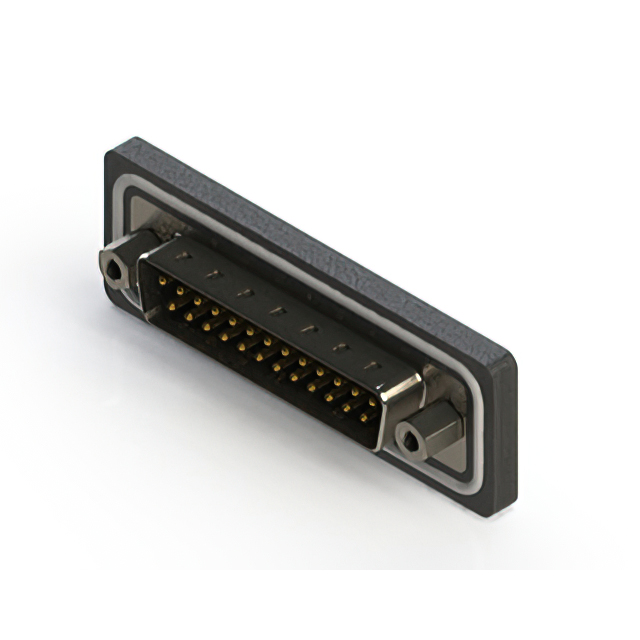

629-W25 Series
Manufacturer: EDAC Inc.
Catalog
629W (WATERPROOF) SERIES RIGHT A
| Part | Dielectric Material | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Style | Backset Spacing | Backset Spacing | Termination | Features | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Flange Feature | Current Rating (Amps) | Number of Rows [custom] | Mounting Type | Number of Positions | Connector Type | Ingress Protection | Shell Material, Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Black | -55 C | 125 °C | UL94 V-0 | Signal | B DB | 3 | Combo D-Sub | 10.3 mm | 0.406 in | Solder | Grounding Indents Shielded | 0.38 µm | 15 µin | Gold | 4-40 Mating Side Female Screwlock | 5 A | 2 | Right Angle Through Hole | 25 | Plug Male Pins | IP67 - Dust Tight Waterproof | Nickel Plated Steel | |
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Black | -55 C | 125 °C | UL94 V-0 | Signal | B DB | 3 | Combo D-Sub | 10.3 mm | 0.406 in | Solder | Grounding Indents Mounting Brackets Shielded | 0.38 µm | 15 µin | Gold | 4-40 Mating Side Female Screwlock | 5 A | 2 | Right Angle Through Hole | 25 | Plug Male Pins | IP67 - Dust Tight Waterproof | Nickel Plated Steel | |
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Black | -55 C | 125 °C | UL94 V-0 | Signal | B DB | 3 | Combo D-Sub | 10.3 mm | 0.406 in | Solder | Grounding Indents Mounting Brackets Shielded | Gold | 4-40 Mating Side Female Screwlock | 5 A | 2 | Right Angle Through Hole | 25 | Plug Male Pins | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Flash |
