6EP34368 Series
Manufacturer: Siemens
Beta
⌘K
AC/DC DIN RAIL SUPPLY 24V 480W
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Number of Outputs | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Approval Agency | Standard Number | Features | Current - Output (Max) [Max] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Input Type | Applications | Efficiency | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 2 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

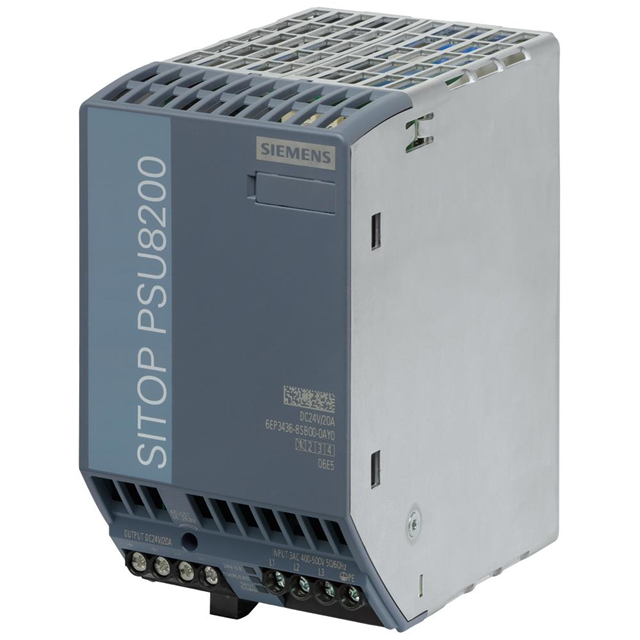

 Siemens | 4.92 in | 125 mm | 70 mm | 125 mm | 2.76 " | 4.92 in | 24 V | 1 | 500 VAC | 400 VAC | CB cCSAus CE CSA cUL cULus UL | 60950-1; UL 508 | Adjustable Output IP20 | 20 A | 480 W | 70 °C | -25 °C | AC | Hazardous Locations Industrial ITE (Commercial) | 94 % | ||||

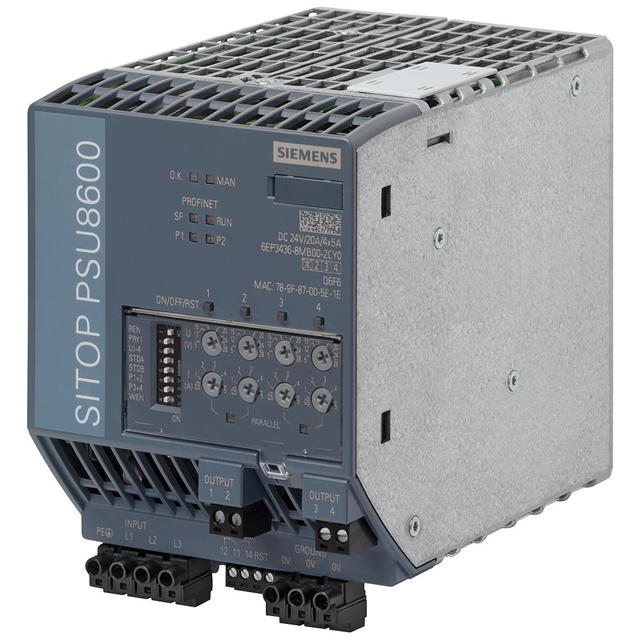

 Siemens | 4.92 in | 125 mm | 100 mm | 150 mm | 3.94 in | 5.91 in | 24 V | 4 | 575 VAC | 320 VAC | cCSAus CE CSA cULus UL | 60950-1; UL 508 | Adjustable Output IP20 | 60 °C | -25 °C | AC | Industrial ITE (Commercial) | 93 % | 24 V | 24 V | 24 V | 5 A |
