LCM-S01601 Series

Catalog

LCD MOD 16 DIG 16 X 1 REFLECTIVE

Part	Operating Temperature [Max]	Display Format [x]	Display Format [y]	Display Type	Character Format [x]	Character Format [y]	Interface	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Background Color	Number of Characters	Character Size [z]	Character Size [y]	Dot Size [z]	Dot Size [y]	Display Mode	Viewing Area [y]	Viewing Area [x]	Voltage - Supply [Min]	Voltage - Supply [Max]

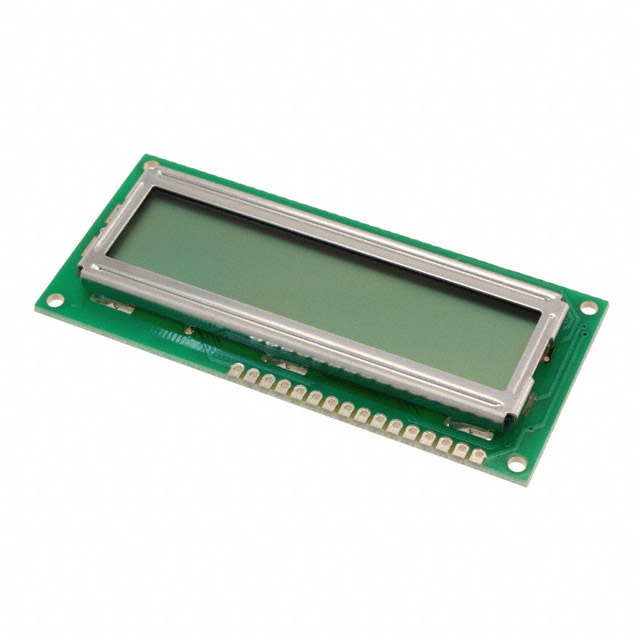

Lumex Opto/Components Inc. LCM-S01601DSR	50 °C	16	1	STN - Super-Twisted Nematic	5 Dots	8 Dots	Parallel	8.8 mm	80 mm	36 mm	Green	16	6.56 mm	3.07 mm	0.75 mm	0.55 mm	Reflective	16 mm	66 mm

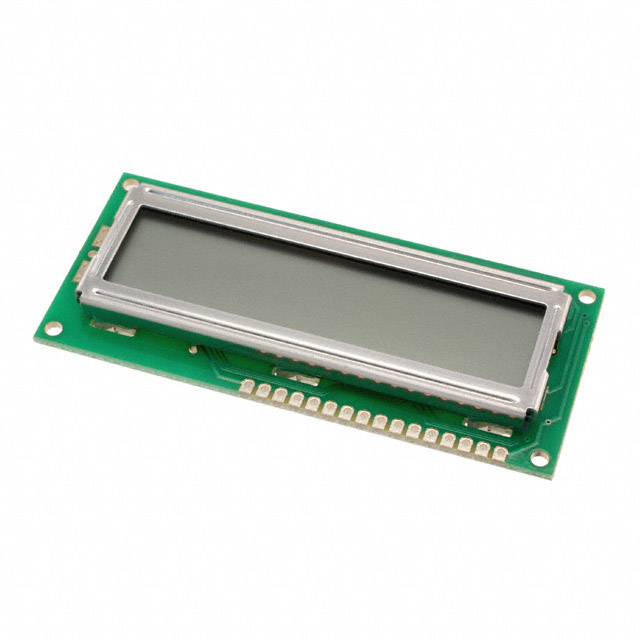

Lumex Opto/Components Inc. LCM-S01601DTR	50 °C	16	1	TN - Twisted Nematic	5 Dots	8 Dots	Parallel	8.8 mm	80 mm	36 mm	Green	16	6.56 mm	3.07 mm	0.75 mm	0.55 mm	Reflective	16 mm	66 mm

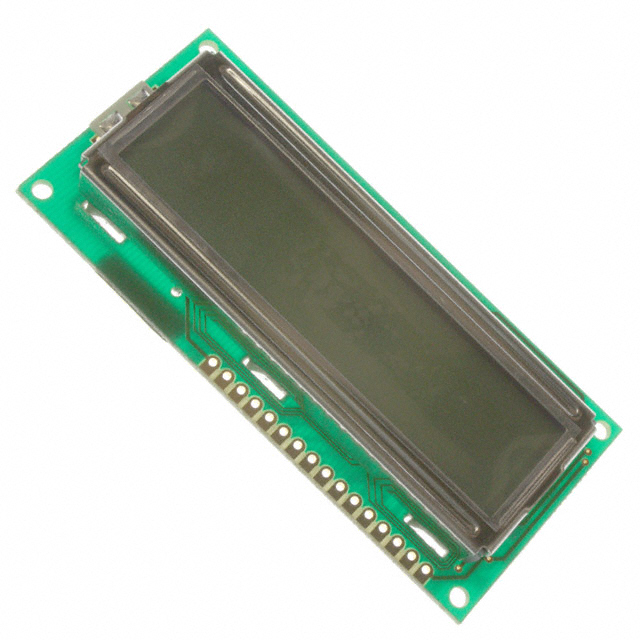

Lumex Opto/Components Inc. LCM-S01601DSF	50 °C	16	1	STN - Super-Twisted Nematic	5 Dots	8 Dots	Parallel	12.7 mm	80 mm	36 mm	Green	16	6.56 mm	3.07 mm	0.75 mm	0.55 mm	Transflective	16 mm	66 mm

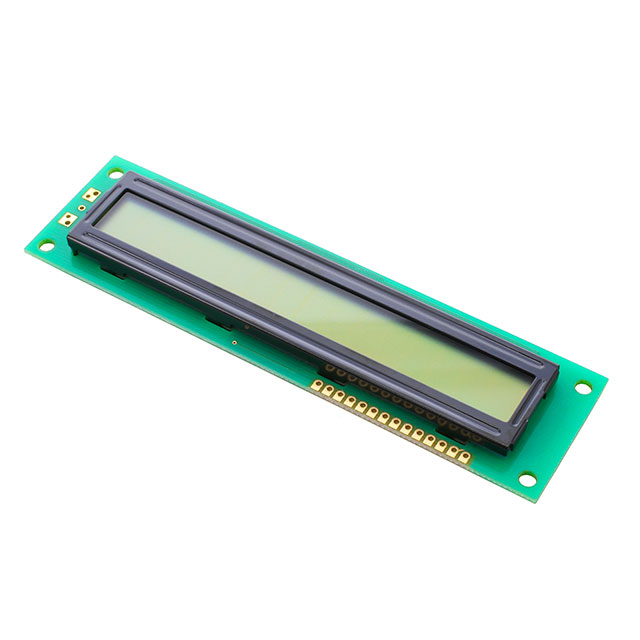

Lumex Opto/Components Inc. LCM-S01601DSR/D	50 °C	16	1		5 Dots	8 Dots		8.8 mm	80 mm	36 mm		16			0.75 mm	0.55 mm	Reflective	16 mm	66 mm	4.7 V	5.3 V
