3SU1132 Series

Manufacturer: Siemens

Catalog

ILLUMINATED PUSHBUTTON. GREEN

Part	Mechanical Life	Electrical Life	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Circuit	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Illumination Voltage (Nominal)	Mounting Type	Illumination Type, Color	Type	Switch Function	Ingress Protection	Color - Actuator/Cap

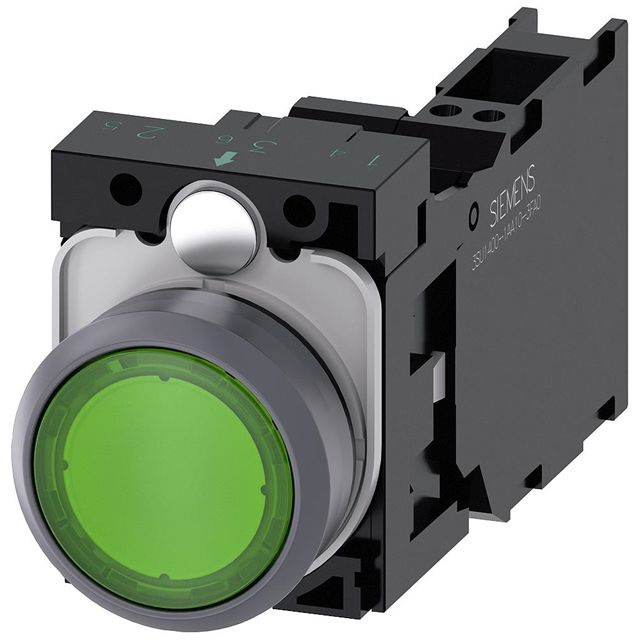

Siemens 3SU11320AB403FA0	3000000 Cycles	10000000 Cycles	22.3 mm	-25 °C	70 °C	10 A	Spring Terminal	DPST-NO/NC	500 V	500 V	Button Round	24 VAC/DC	Panel Mount Front	Green LED	Illuminated Standard	Off-Mom On-Mom	IP66 IP67 IP69K	Green

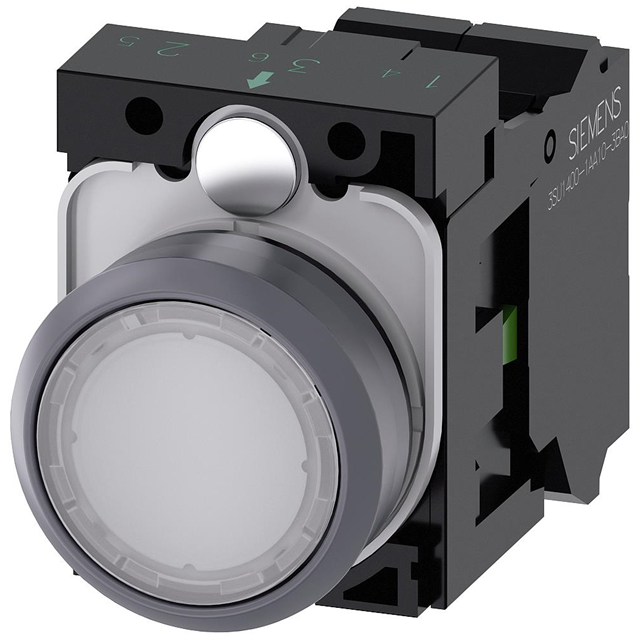

Siemens 3SU11320AB603BA0	3000000 Cycles	10000000 Cycles	22.3 mm	-25 °C	70 °C	10 A	Spring Terminal	SPST-NO	500 V	500 V	Button Round	24 VAC/DC	Panel Mount Front	LED White	Illuminated Standard	Off-Mom	IP66 IP67 IP69K	White
Siemens 3SU11320AB701FA0	3000000 Cycles	10000000 Cycles	22.3 mm	-25 °C	70 °C	10 A	Screw Terminal	DPST-NO/NC	500 V	500 V	Button Round	24 VAC/DC	Panel Mount Front	LED White	Illuminated Standard	Off-Mom On-Mom	IP66 IP67 IP69K	Clear

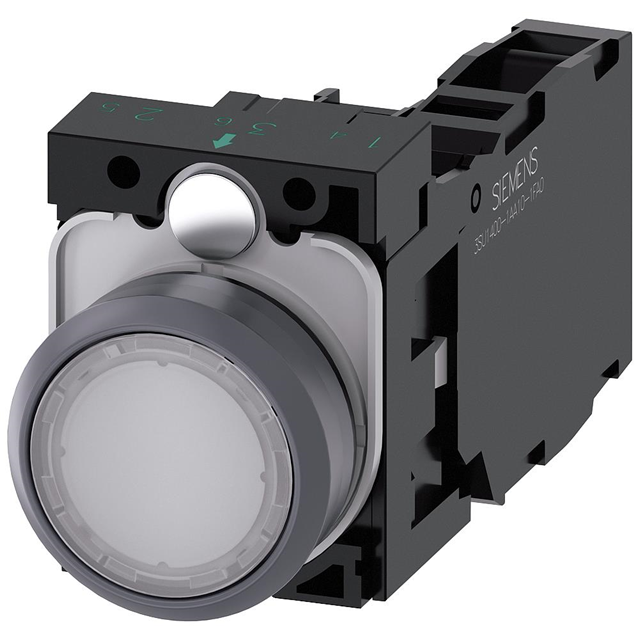

Siemens 3SU11320AB601FA0	3000000 Cycles	10000000 Cycles	22.3 mm	-25 °C	70 °C	10 A	Screw Terminal	DPST-NO/NC	500 V	500 V	Button Round	24 VAC/DC	Panel Mount Front	LED White	Illuminated Standard	Off-Mom On-Mom	IP66 IP67 IP69K	White
Siemens 3SU11320AB501FA0	3000000 Cycles	10000000 Cycles	22.3 mm	-25 °C	70 °C	10 A	Screw Terminal	DPST-NO/NC	500 V	500 V	Button Round	24 VAC/DC	Panel Mount Front	Blue LED	Illuminated Standard	Off-Mom On-Mom	IP66 IP67 IP69K	Blue

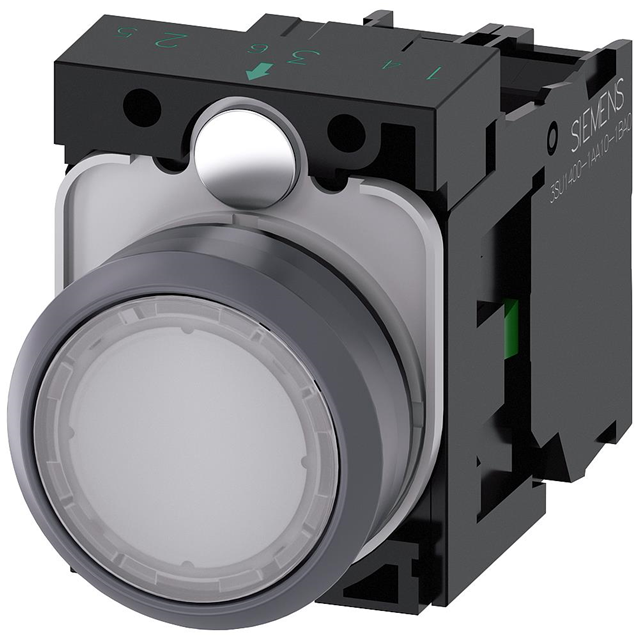

Siemens 3SU11320AB601BA0	3000000 Cycles	10000000 Cycles	22.3 mm	-25 °C	70 °C	10 A	Screw Terminal	SPST-NO	500 V	500 V	Button Round	24 VAC/DC	Panel Mount Front	LED White	Illuminated Standard	Off-Mom	IP66 IP67 IP69K	White
Siemens 3SU11320AB301BA0	3000000 Cycles	10000000 Cycles	22.3 mm	-25 °C	70 °C	10 A	Screw Terminal	SPST-NO	500 V	500 V	Button Round	24 VAC/DC	Panel Mount Front	LED Yellow	Illuminated Standard	Off-Mom	IP66 IP67 IP69K	Yellow

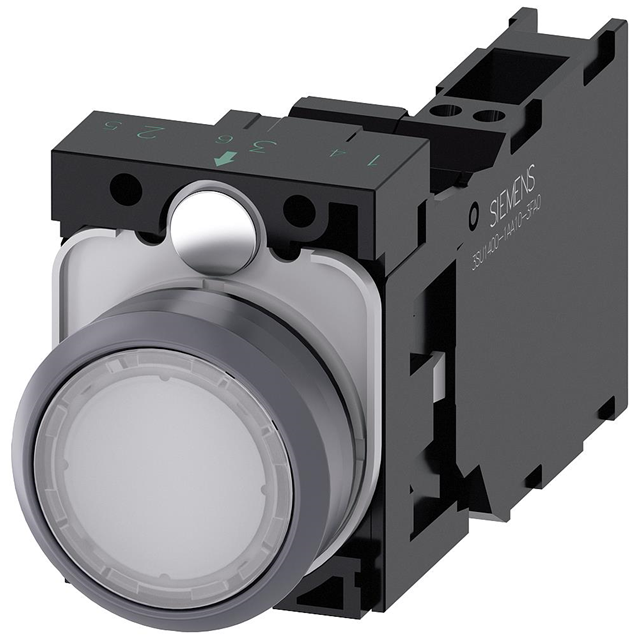

Siemens 3SU11320AB603FA0	3000000 Cycles	10000000 Cycles	22.3 mm	-25 °C	70 °C	10 A	Spring Terminal	DPST-NO/NC	500 V	500 V	Button Round	24 VAC/DC	Panel Mount Front	LED White	Illuminated Standard	Off-Mom On-Mom	IP66 IP67 IP69K	White
Siemens 3SU11320AB701BA0	3000000 Cycles	10000000 Cycles	22.3 mm	-25 °C	70 °C	10 A	Screw Terminal	SPST-NO	500 V	500 V	Button Round	24 VAC/DC	Panel Mount Front	LED White	Illuminated Standard	Off-Mom	IP66 IP67 IP69K	Clear

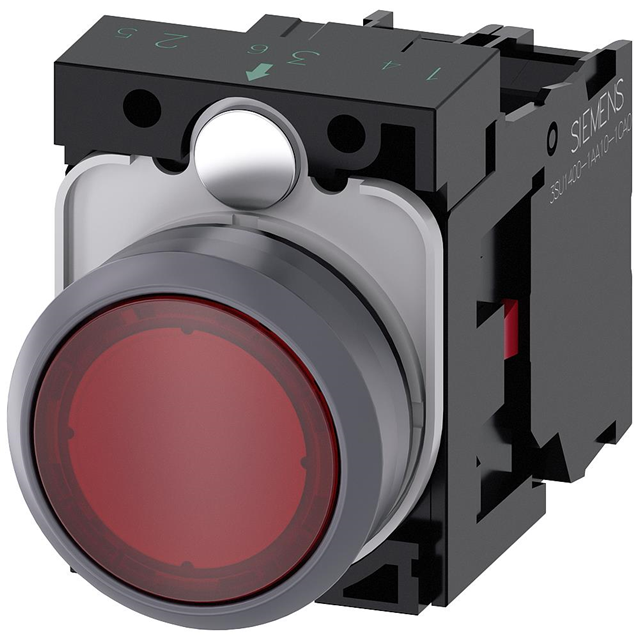

Siemens 3SU11320AB201CA0	3000000 Cycles	10000000 Cycles	22.3 mm	-25 °C	70 °C	10 A	Screw Terminal	SPST-NC	500 V	500 V	Button Round	24 VAC/DC	Panel Mount Front	LED Red	Illuminated Standard	On-Mom	IP66 IP67 IP69K	Red
